Dennis FT 430 - Page 37

37
FT Range SP20001_REV_2

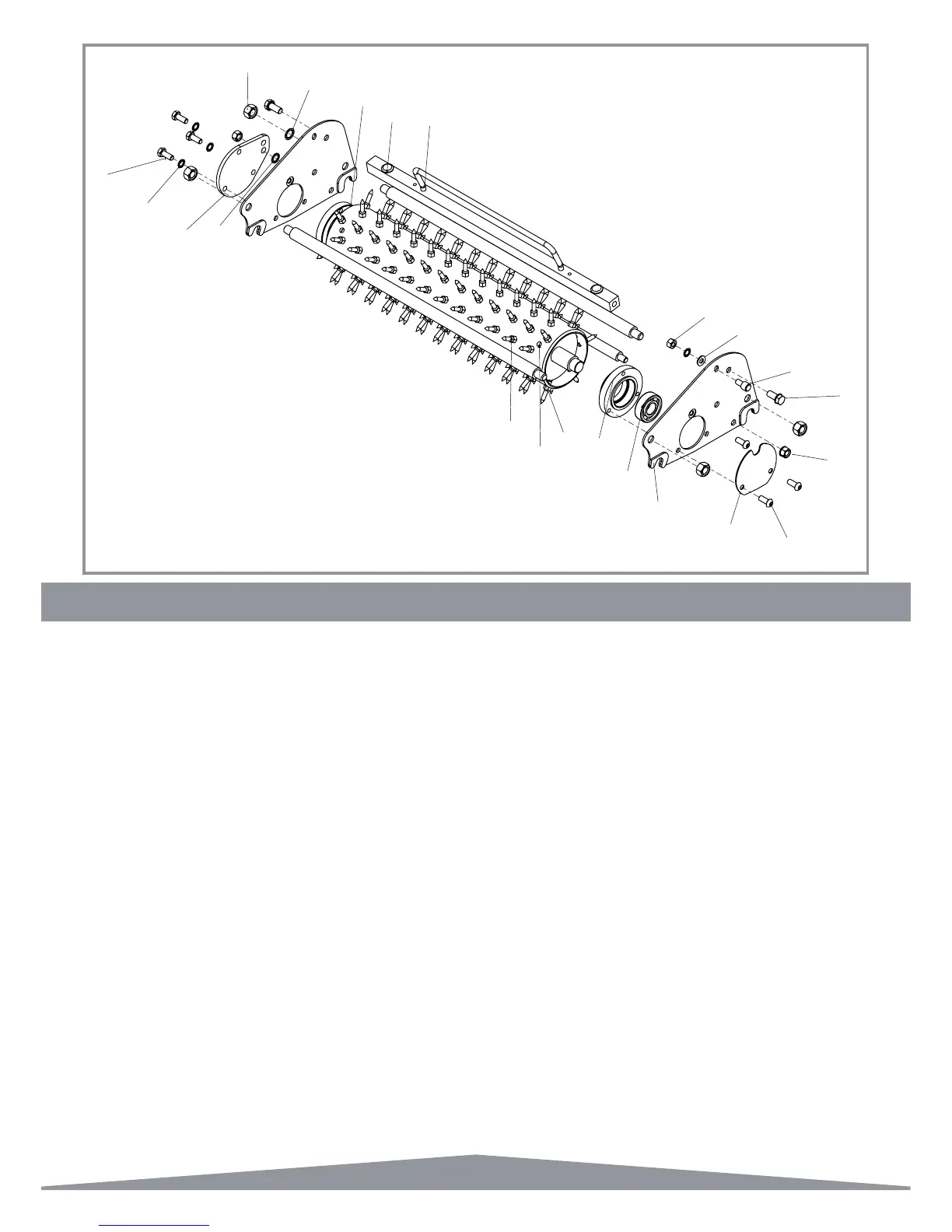

9.05 Cassette - Sorrel
Item No. Part No. Description Quantity
1 228062 3/4” Tube Bung (3132) 2
2 230318 Blanking Plate 1
3 J20000 Cassette Side Plate WA ND 2
4 J17011 Cassette Tie Bar (17”) 2
4 J20011 Cassette Tie Bar (20”) 2
4 J24011 Cassette Tie Bar (24”) 2
5 J20023 Unit Limiting Stud 1
6 J20051 Bearing Housing (6204) 2
7 J20052 Bearing 6204-2RS 3 2
8 J17053 Tie Bar (17”) 1
8 J20053 Tie Bar (20”) 1
8 J24053 Tie Bar (24”) 1
9 J17810 Sorrel Roller (17”) 1
9 J20810 Sorrel Roller (20”) 1
9 J24810 Sorrel Roller (24”) 1
10 J20811 Spike Sorrel Roller 126/150/186
11 J209076 Bearing Blank Plate 1
12 J179305 Shear Blade Adj Bar Assy (17”) 1
12 J209305 Shear Blade Adj Bar Assy (20”) 1
12 J249305 Shear Blade Adj Bar Assy (24”) 1
13 SP01006 Button Head (M8 x 20) 3
14 SP01009 Hex Set Screw (M8 x 20) 3
15 SP01011 Hex Set Screw (3/8” UNF x 3/4”) 2
16 SP02005 Nut (M8 Std) 1
17 SP02015 Nut (3/8” UNF) 2
18 SP02016 Nut (1/2” UNF) 4
19 SP03004 Washer (M8 Toothed) 4
20 SP03005 Washer (M10 Toothed) 4
21 SP03006 Washer (M12 Toothed) 2
22 SP03008 Washer (M8 Form A) 1
