Dennis FT 430 - Page 36

36
FT Range SP20001_REV_2

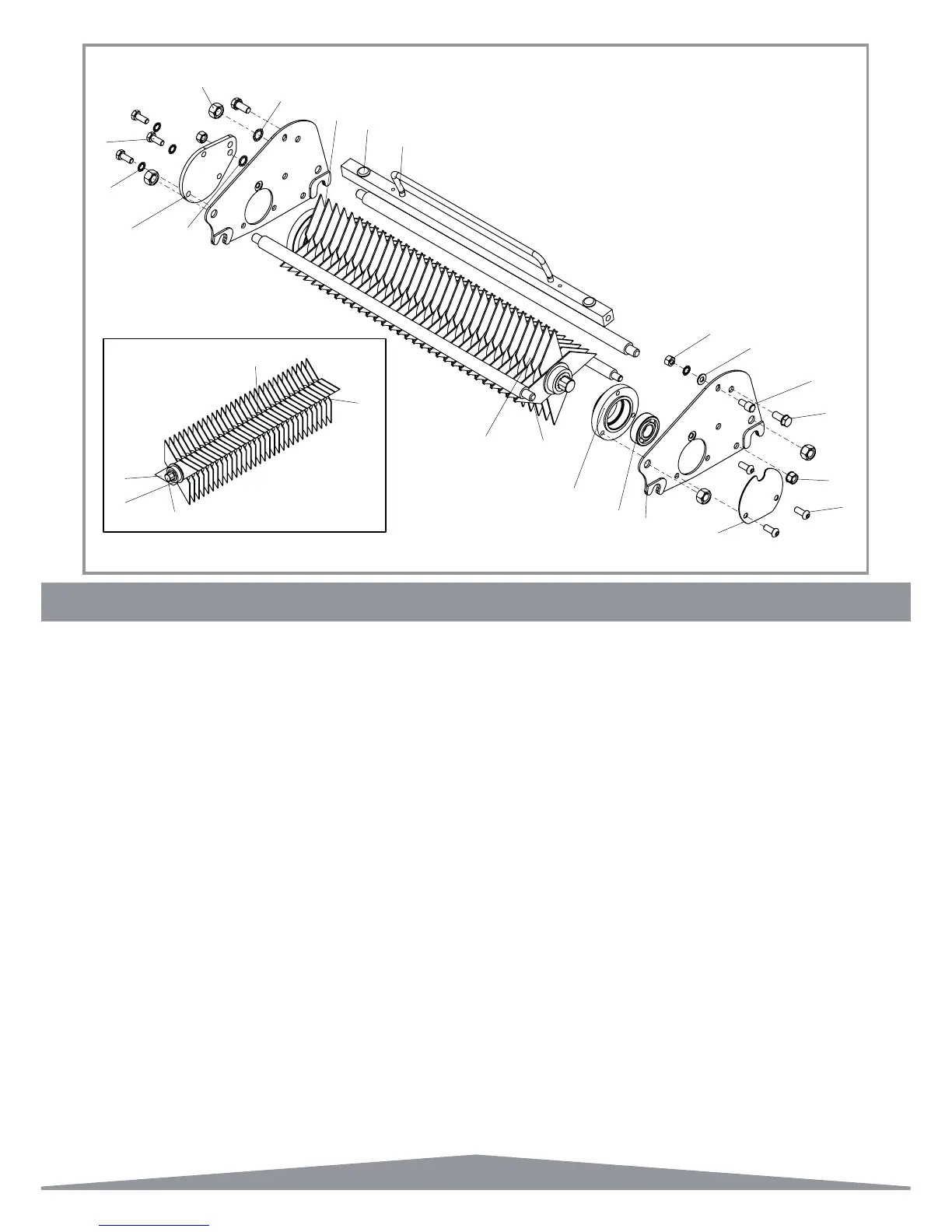

9.04 Cassette - Slitter
Item No. Part No. Description Quantity
1 230318 Blanking Plate 1
2 J20000 Cassette Side Plate WA ND 2
3 J17011 Cassette Tie Bar (17”) 2
3 J20011 Cassette Tie Bar (20”) 2
3 J24011 Cassette Tie Bar (24”) 2
4 J20023 Unit Limiting Stud 1
5 J20051 Bearing Housing (6204) 2
6 J20052 Bearing 6204-2RS 3 2
7 J17053 Tie Bar (17”) 1
7 J20053 Tie Bar (20”) 1
7 J24053 Tie Bar (24”) 1
8 J209076 Bearing Blank Plate 1
9 J179305 Shear Blade Adj Bar Assy (17”) 1
9 J209305 Shear Blade Adj Bar Assy (20”) 1
9 J249305 Shear Blade Adj Bar Assy (24”) 1
10 SP01006 Button Head (M8 x 20) 3
11 SP01009 Hex Set Screw (M8 x 20) 3
12 SP01011 Hex Set Screw (3/8” UNF x 3/4”) 2
13 SP02005 Nut (M8 Std) 1
14 SP02015 Nut (3/8” UNF) 2
15 SP02016 Nut (1/2” UNF) 4
16 SP03004 Washer (M8 Toothed) 4
17 SP03005 Washer (M10 Toothed) 4
18 SP03006 Washer (M12 Toothed) 2
19 SP03008 Washer (M8 Form A) 1
20 228062 3/4” Tube Bung (3132) 2
21 800051 Slitter Hob Assy (17”) 1
21 800056 Slitter Hob Assy (20”) 1
21 800061 Slitter Hob Assy (24”) 1
22 230334 Slitter Shaft FT (17”) 1
22 230335 Slitter Shaft FT (20”) 1
22 230336 Slitter Shaft FT (24”) 1
23 J20056 Spacer AR
24 J20060 Lock Washer (Small) 1
25 J209080 Flange Stop 1
11
9
20
5
18
17
15
8
16
14
10
12
4
19
13
3
7
6
2
10
21
26
24
23
22
25
Item No. Part No. Description Quantity
26 J20057 Scarifer Blade 2mm AR
Not Shown
- J20059 Nut 7/8” UNF Lock (Thin) 1
