Dennis FT 430 - Page 35

35
FT Range SP20001_REV_2

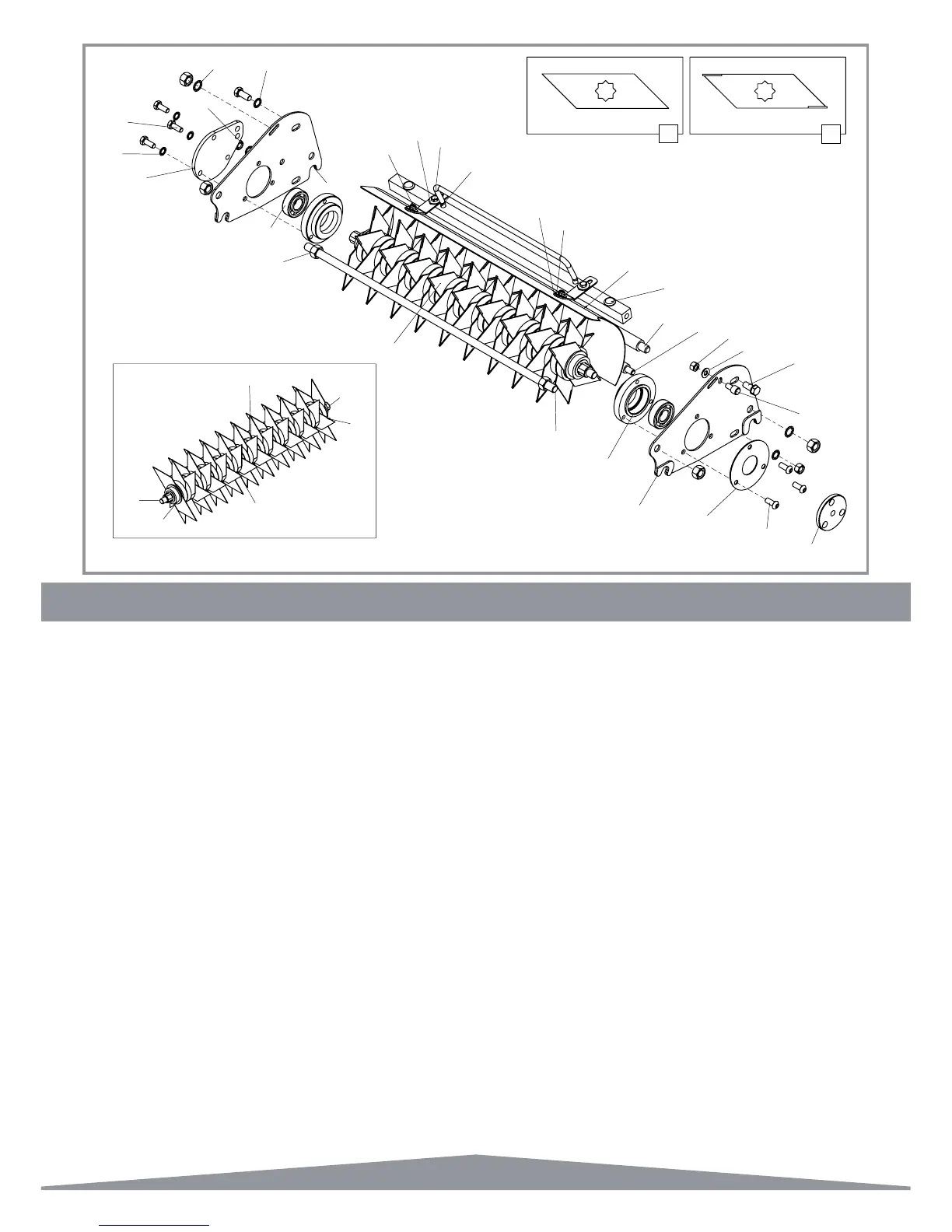

9.03 Cassette - Scarifi ers
Item No. Part No. Description Quantity
1 228062 3/4” Tube Bung (3132) 2
2 800047 1mm Scarifi er Hob Assy (17”) 1
2 800052 1mm Scarifi er Hob Assy (20”) 1
2 800057 1mm Scarifi er Hob Assy (24”) 1
2 800048 2mm Scarifi er Hob Assy (17”) 1
2 800053 2mm Scarifi er Hob Assy (20”) 1
2 800058 2mm Scarifi er Hob Assy (24”) 1
2 800207 2mm TT Scarifi er Hob Assy (17”) 1
2 800206 2mm TT Scarifi er Hob Assy (20”) 1
2 800208 2mm TT Scarifi er Hob Assy (24”) 1
3 J20001 Cassette Side Plate WA NC LH 1
4 J20002 Cassette Side Plate WA NC RH 1
5 J20008 Back Plate With Hole 1
6 J17011 Cassette Tie Bar (17”) 1
6 J20011 Cassette Tie Bar (20”) 1
6 J24011 Cassette Tie Bar (24”) 1
7 J20023 Unit Limiting Stud 1
8 J20041 Female Coupling 1
9 J20051 Bearing Housing (6204) 2
10 J20052 Bearing 6204-2RS 3 2
11 J17053 Tie Bar (17”) 1
11 J20053 Tie Bar (20”) 1
11 J24053 Tie Bar (24”) 1
12 J17054 Defl ector Plate Assy (17”) 1
12 J20054 Defl ector Plate Assy (20”) 1
12 J24054 Defl ector Plate Assy (24”) 1
13 J17061 Front Tie Bar All Cassettes (FT430) 1
13 J20061 Front Tie Bar All Cassettes (FT510) 1
13 J24061 Front Tie Bar All Cassettes (FT610) 1
14 J209061 Defl ector Bracket 2
15 J209076 Bearing Blank Plate 1
16 J179305 Shear Blade Adj Bar Assy (17”) 1
16 J209305 Shear Blade Adj Bar Assy (20”) 1
16 J249305 Shear Blade Adj Bar Assy (24”) 1
17 SP01006 Button Head (M8 x 20) 3
18 SP01007 Coach Bolt (M6) 2
Item No. Part No. Description Quantity
19 SP01008 Hex Set Screw (M6 x 16) 2
20 SP01009 Hex Set Screw (M8 x 20) 3
21 SP01011 Hex Set Screw (3/8” UNF x 3/4”) 2
22 SP02004 Nut (M6 Nyloc) 2
23 SP02005 Nut (M8 Std) 1
24 SP02015 Nut (3/8” UNF) 2
25 SP02016 Nut (1/2” UNF) 6
26 SP03004 Washer (M8 Toothed) 4
27 SP03005 Washer (M10 Toothed) 4
28 SP03006 Washer (M12 Toothed) 2
29 SP03007 Washer (M6 x 18) 4
30 SP03008 Washer (M8 Form A) 1
31 J17055 Square Shaft (17”) 1
31 J20055 Square Shaft (20”) 1
31 J24055 Square Shaft (24”) 1
32 J20056 Spacer AR
33 J20059 Nut 7/8” UNF Lock (Thin) 1
34 J20060 Lock Washer (Small) 1
35 J209080 Flange Stop 1
36 J20058 Scarifer Blade 1mm AR
36 J20057 Scarifer Blade 2mm AR
36 230105 Scarifer Blade TT AR
26
25
15
20
10
14
18
16
19
9
2
22
4
28
27
24
30
1
11
12
17
7
31
6
23
8
5
3
9
13
33
35
31
32
34
36
2mm Tungsten
36
36
1 & 2mm Std
