Dennis FT 430 - Page 34

34
FT Range SP20001_REV_2

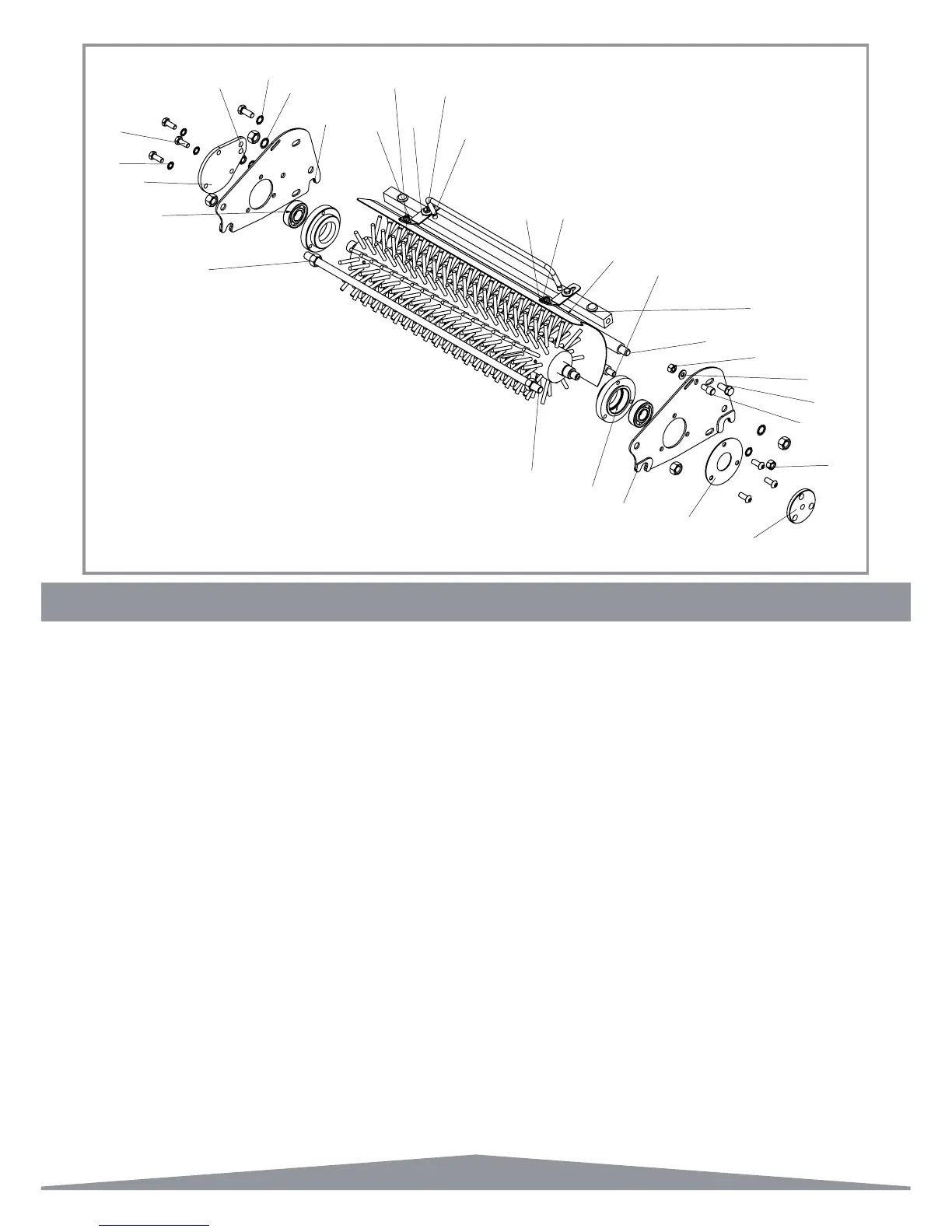

9.02 Cassette - Brush
Item No. Part No. Description Quantity
1 228062 3/4” Tube Bung (3132) 2
2 800174 Brush Shaft Assembly (17” Multi) 1
2 800186 Brush Shaft Assembly (20” Multi) 1
2 800185 Brush Shaft Assembly (24” Multi) 1
2 800175 Brush Shaft Assembly (17” Standard) 1
2 800187 Brush Shaft Assembly (20” Standard) 1
2 800177 Brush Shaft Assembly (24” Standard) 1
3 J20001 Cassette Side Plate WA NC LH 1
4 J20002 Cassette Side Plate WA NC RH 1
5 J20008 Back Plate With Hole 1
6 J17011 Cassette Tie Bar (17”) 1
6 J20011 Cassette Tie Bar (20”) 1
6 J24011 Cassette Tie Bar (24”) 1
7 J20023 Unit Limiting Stud 1
8 J20041 Female Coupling 1
9 J20051 Bearing Housing (6204) 2
10 J20052 Bearing 6204-2RS 3 2
11 J17053 Tie Bar (17”) 1
11 J20053 Tie Bar (20”) 1
11 J24053 Tie Bar (24”) 1
12 J17054 Defl ector Plate Assy (17”) 1
12 J20054 Defl ector Plate Assy (20”) 1
12 J24054 Defl ector Plate Assy (24”) 1
13 J17061 Front Tie Bar All Cassettes (17”) 1
13 J20061 Front Tie Bar All Cassettes (20”) 1
13 J24061 Front Tie Bar All Cassettes (24”) 1
14 J209061 Defl ector Bracket 2
15 J209076 Bearing Blank Plate 1
16 J179305 Shear Blade Adj Bar Assy (17”) 1
16 J209305 Shear Blade Adj Bar Assy (20”) 1
16 J249305 Shear Blade Adj Bar Assy (24”) 1
17 SP01006 Button Head (M8 x 20) 3
18 SP01007 Coach Bolt (M6) 2
19 SP01008 Hex Set Screw (M6 x 16) 2
20 SP01009 Hex Set Screw (M8 x 20) 3
20
16
14
11
12
8
17
7
21
30
23
6
1
5
3
9
13
25
10
15
26
18
19
29
*2
22
4
28
27
24
* - Multi Brush Shown
Item No. Part No. Description Quantity
21 SP01011 Hex Set Screw (3/8” UNF x 3/4”) 2
22 SP02004 Nut Nyloc (M6) 2
23 SP02005 Nut Std (M8) 1
24 SP02015 Nut (3/8” UNF) 2
25 SP02016 Nut (1/2” UNF) 6
26 SP03004 Washer (M8 Toothed) 4
27 SP03005 Washer (M10 Toothed) 4
28 SP03006 Washer (M12 Toothed) 2
29 SP03007 Washer (M6 x 18) 4
30 SP03008 Washer (M8 Form A) 1
NOTE
Multi Brush shown in diagram (Item 2)
