Dennis FT 430 - Cassette - Cutter

33
FT Range SP20001_REV_2

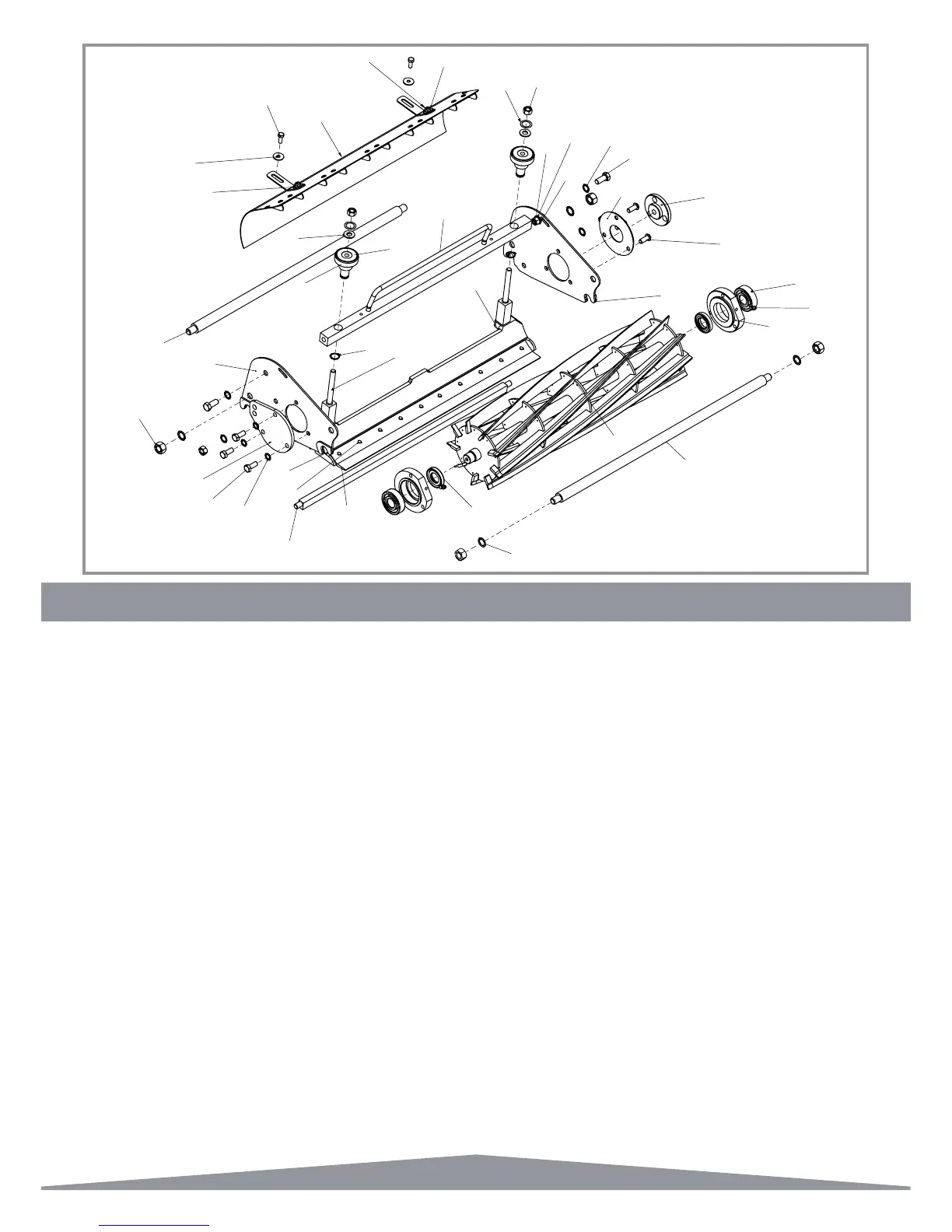

9.01 Cassette - Cutter
Item No. Part No. Description Quantity
1 J19998 Cassette Side Plate W.A. L.H. 1
2 J19999 Cassette Side Plate W.A. R.H. 1
3 J17040 Cylinder 5 Blade 17” 1
3 J20040 Cylinder 5 Blade 20” 1
3 J24040 Cylinder 5 Blade 24” 1
3 J17039 Cylinder 9 Blade 17” 1
3 J20039 Cylinder 9 Blade 20” 1
3 J24039 Cylinder 9 Blade 24” 1
4 J17033 Defl ector Plate Assy 17” (Vane) 1
4 J20033 Defl ector Plate Assy 20” (Vane) 1
4 J24033 Defl ector Plate Assy 24” (Vane) 1
5 J179305 17” Shear Blade Adj Bar Assy 1
5 J209305 20” Shear Blade Adj Bar Assy 1
5 J249305 24” Shear Blade Adj Bar Assy 1
6 J209076 Bearing Blank Plate 1
7 J20003 Cutter Bearing Housing 2
8 J17011 17” Cassette Tie Bar 2
8 J20011 20” Cassette Tie Bar 2
8 J24011 24” Cassette Tie Bar 2
9 J17012 17” Rectangular Bar 1
9 J20012 20” Rectangular Bar 1
9 J24012 24” Rectangular Bar 1
10 J17025 Shear Blade Carrier 17” 1
10 J20025 Shear Blade Carrier 20” 1
10 J24025 Shear Blade Carrier 24” 1
11 J20065 Shear Blade 20” x 0.060” 1
11 J24065 Shear Blade 24” x 0.060” 1
11 J17030 Shear Blade 17” x 0.090” 1
11 J20030 Shear Blade 20” x 0.090” 1
11 J24030 Shear Blade 24” x 0.090” 1
11 J20031 Lipped Blade 20” 1
11 J24031 Lipped Blade 24” 1
12 J20032 Screw Bottom Blade 8/10/12
13 J209061 Defl ector Bracket 2
14 J209300 Adjuster Knob Cylinder 2
15 J209302 Decal Cut On / Off 2
Item No. Part No. Description Quantity
16 J209303 Adjuster Rod 2
17 J209304 Shim Od: 22 Id:16 THK 0.3 2
18 J20008 Back Plate With Hole 1
19 J20023 Unit Limiting Stud 1
20 J20004 Bearing Self-aligning RI6 2
21 J20064 Grease Nipple 1/4” UNF 2
22 J20041 Female Coupling 1
23 J20063 Seal Single Lip 22 x 40 2
24 J209301 Circlip N1460 / 0062 (5/8 EXT) 2
25 SP01006 Button Head M8 x 20 3
26 SP01007 Coach Bolt M6 2
27 SP01008 Hex Set Screw M6 x 16 2
28 SP01009 Hex Set Screw M8 x 20 3
29 SP01010 Cap Head M10 x 30 (Low Hd) 2
30 SP01011 Hex Set Screw 3/8” UNF x 3/4” 2
31 SP02004 Nut M6 Nyloc 2
32 SP02005 Nut M8 STD 1
33 SP02015 Nut 3/8” UNF 4
34 SP02016 Nut 1/2” UNF 4
35 SP03002 Washer 3/8” 4
36 SP03004 Washer M8 Toothed 4
37 SP03005 Washer M10 Toothed 4
38 SP03006 Washer M12 Toothed 4
39 SP03007 Washer M6 x 18 4
40 SP03008 Washer M8 Form A 1
39
10
28
6
36
34
16
2
8
5
14
15
35
31
9
12
3
23
38
11
40
37
30
1
7
20
21
25
18
22
27
13
26
4
29
24
17
33
19
32
8
