ADV-M71

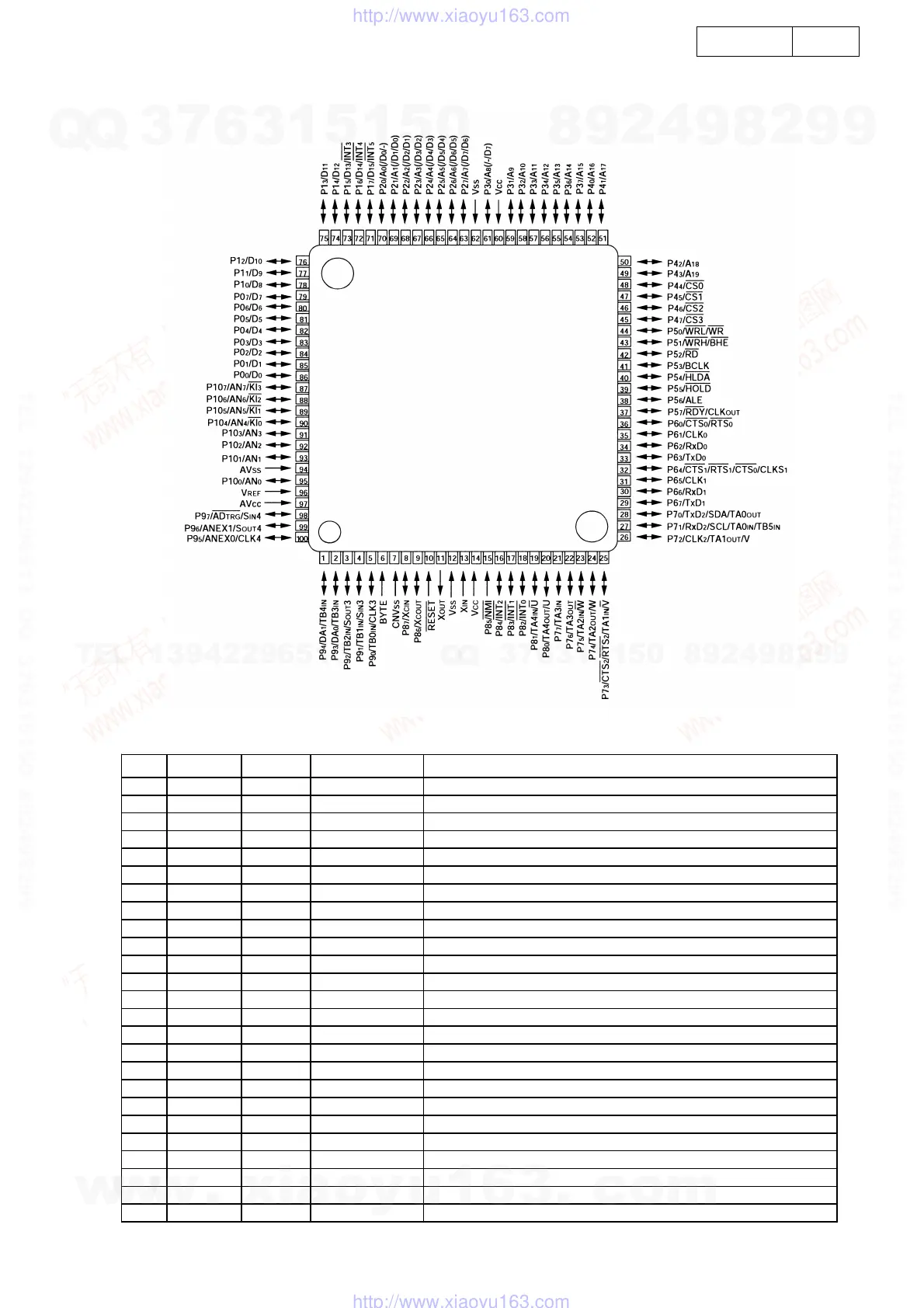

M30626FHPGP (MA: IC302)
M30626FHPGP PORT
Pin No. port function Port setting Port name Explanation
1P94
OE2P CS
Chip select output to EEPROM
2P93
O 3811 DATA
Serial data output to elec.VR
3P92
SO E2P DI
Serial data output to EEPROM
4P91
SI E2P DO
Serial data input from EEPROM
5P90
SO E2P CK
Serial clock output to EEPROM
6 BYTE - Gnd
7 CNVSS - don't use
8P87
O 3811 CLK
Serial clock output to elec.VR
9P86
OVMUTE
Mute output to video driver
10 RESET RESET Reset input
11 XOUT XOUT Xtal output
12 VSS VSS Gnd
13 XIN XIN Xtal input
14 VCC VCC Vcc
15 NMI - don't use
16 INT2
INT PROTECT
Protect signal input L:Protect detect
17 INT1
INT ESS CS
Chip select input from ESS
18 INT0 INT DE RXD Serial data input from DENON BUS
19 TA4IN
I50/60
Line pulse input(50/60Hz)
20 P80
O PROG/INTE
Progressive/Interlace switching signal output
21 P77
IVR JOG-B
VR encoder pulse-B input
22 P76
IVR JOG-A
VR encoder pulse-A input
23 P75
IFN JOG-B
Function encoder pulse-B input
24 P74
IFN JOG-A
Function encoder pulse-A input
25 P73
OFLCS
Chip select output to FLD driver
