Denon AVC-1530 - Speaker System Connections

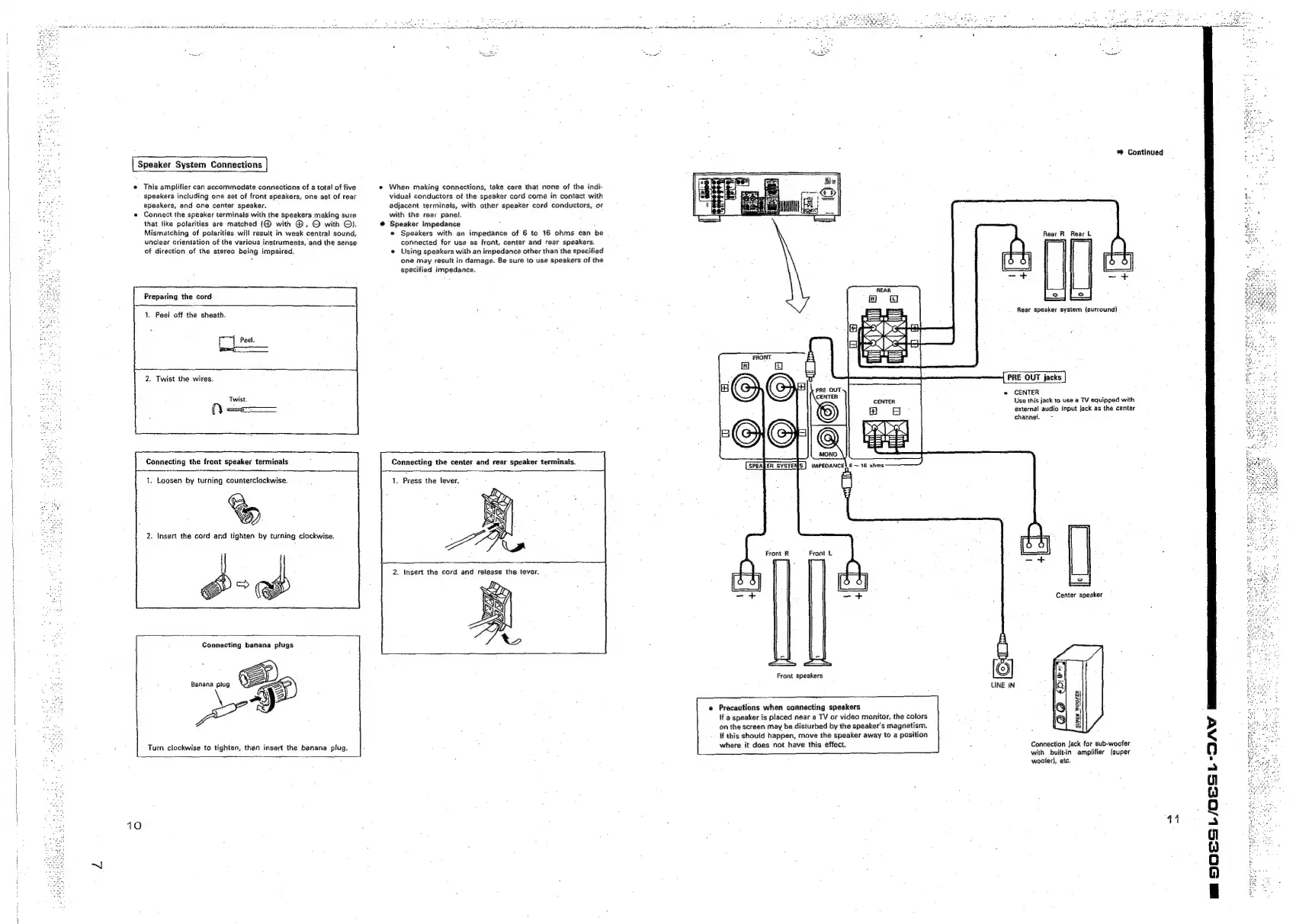

| Speaker System Connections
e This amplifier can accommodate connections of a total of five
speakers including one set of front speakers, one set of rear
speakers, and one center speaker.
« Connect the speaker terminals with the speakers making sure
that like polarities are matched (® with @. © with ©).
Mismatching of polarities will result in weak central sound,
unclear orientation of the various instruments, and the sense
of direction of the stereo being impaired,
Preparing the cord
1. Peel off the sheath.
imme! Peel.
Sa
2. Twist the wires.
Twist.
@ When making connections, take care that none of the indi-
vidual conductors of the speaker cord come in contact with
adjacent terminals, with other speaker cord conductors, or
with the rear panel.
@ Speaker impedance
© Speakers with an impedance of 6 to 16 ohms can be
connected for use as front, center and rear speakers.
« Using speakers with an impedance other than the specified
one may result in damage. Be sure to use speakers of the
specified impedance.
Connecting the front speaker terminals
Connecting the center and rear speaker terminals.
1. Loosen by turning counterclockwise.
D
2. Insert the cord and tighten by turning clockwise.
L
Connecting banana plugs
fo
Turn clockwise to tighten, then insert the banana plug.
10
1. Press the fever.
2. Insert the cord and release the (ever.
% Continued
Rear L
Rear speaker system (surround)
PRE OUT jacks
« CENTER
Use this jack to use a TV equipped with
external audio input jack as the center
channel.
[SPEAFER SYSTENS] imPEDANCE! 6 ~ 16 ohms
Front R Front &
—+
Center speaker
Front speakers
LINE IN
e Precautions when connecting speakers
if a speaker is placed near a TV or video monitor, the colors
on the screen may be disturbed by the speaker's magnetism,
if this should happen, move the speaker away to a position
where it does not have this effect.
Connection jack for sub-woofer
with built-in amplifier (super
woofer), ete.
