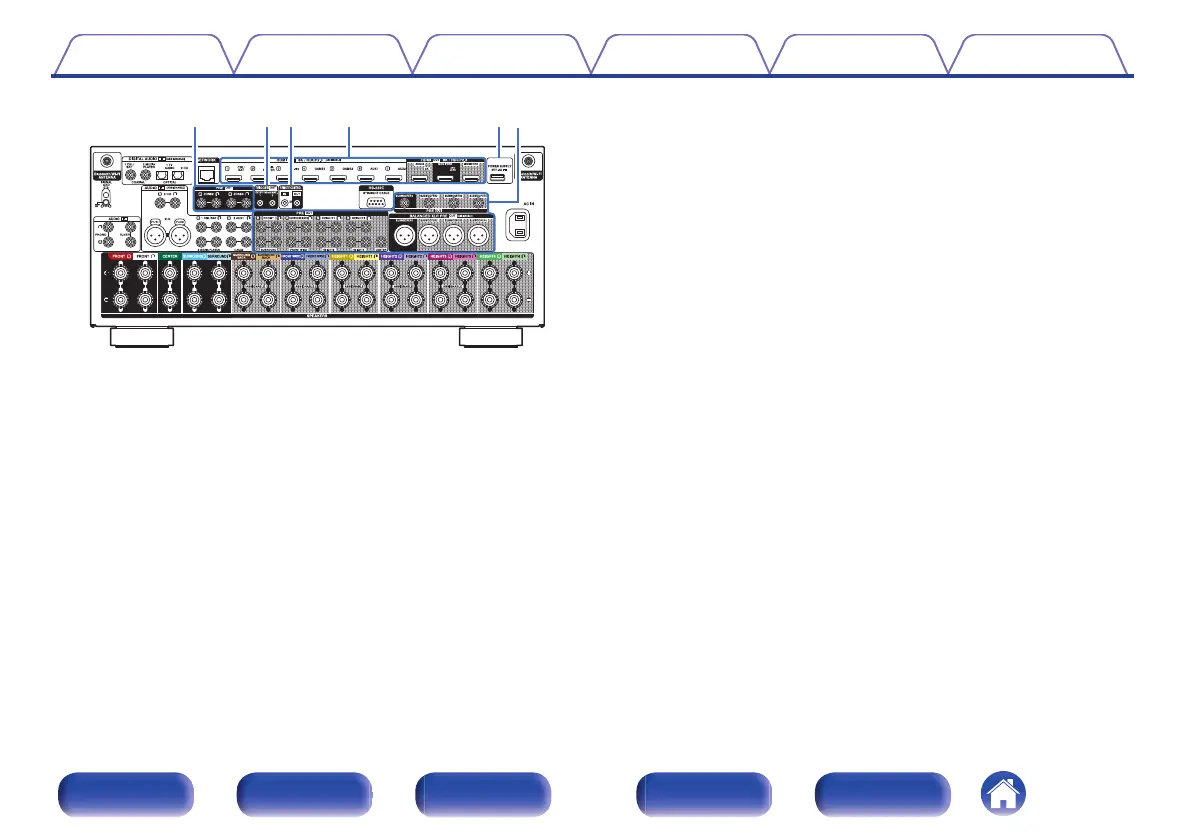

E
PRE OUT connectors
Used to connect a subwoofer with built-in amplifier or an external power
amplifier.
0
“Connecting the subwoofer” (v p. 39)
0
“Connecting an external power amplifier” (v p. 43)
0
“Connecting 11.1-channel speakers” (v p. 53)
0
“Connecting 13.1-channel speakers” (v p. 56)
0
“Connecting 15.1-channel speakers” (v p. 59)
0
“Connecting ZONE” (v p. 155)
F
TRIGGER OUT jacks
Used to connect devices equipped with the trigger function.
(v p. 82)
G
REMOTE CONTROL jacks
Used to connect infrared receivers/transmitters in order to operate this
unit and external devices from a different room. (v p. 81)
H
HDMI connectors
Used to connect devices equipped with HDMI connectors.
0
“Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC / eARC” (v p. 70)
0
“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC / eARC” (v p. 71)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 73)
0
“Connecting a media player” (v p. 74)
0
“Connecting a Blu-ray Disc player or DVD player” (v p. 75)
0
“Connecting a game console or player device compatible with
8K” (v p. 76)
I
USB port (POWER SUPPLY)
Can be used to power streaming media players, etc.
