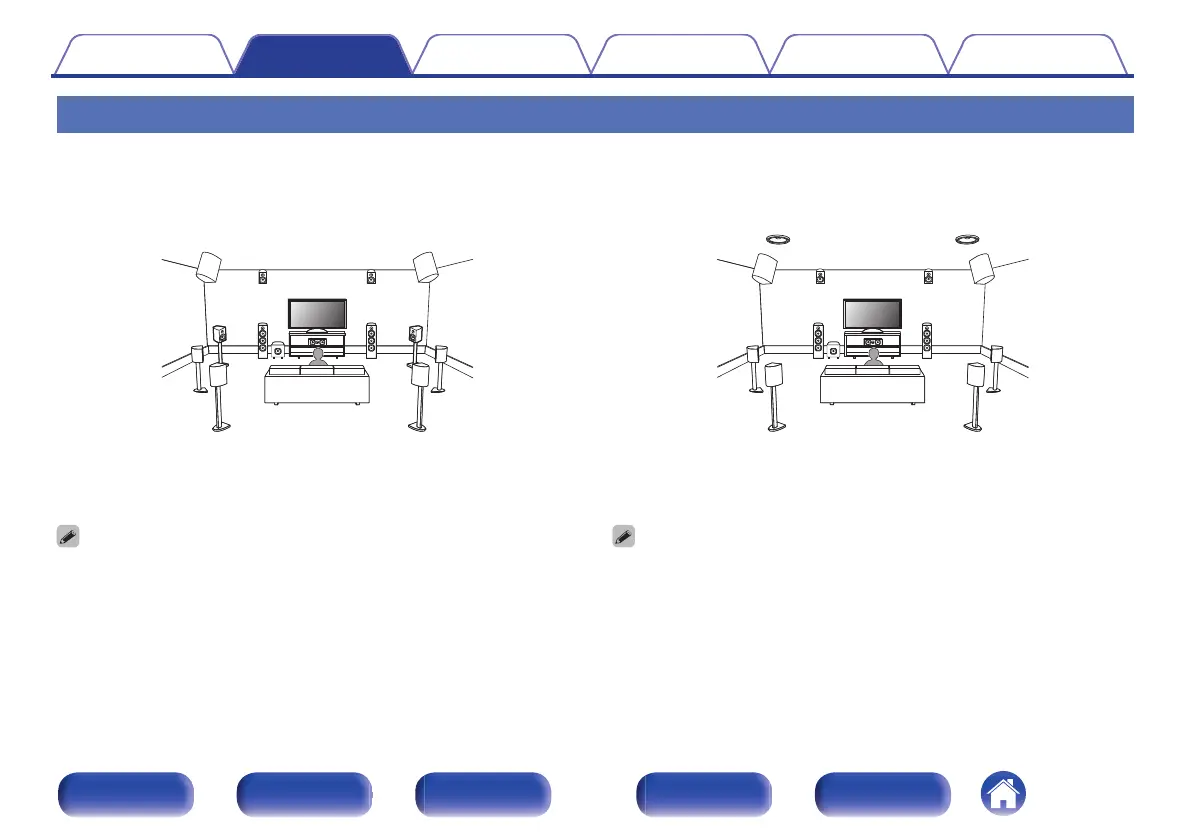

Denon AVC-A1H User Manual

Connecting 13.1-channel speakers
o
Example layout when using surround back,
Front Wide and two set of height speakers
C
FL FR
SW
RSLS
FHL FHR
RHL RHR
FWL FWR
SBL
SBR
For each speaker connection, refer to the following.
0
“Connecting speakers to the speaker terminals” (v p. 42)
0
“Connecting an external power amplifier” (v p. 43)
0
Set “Floor” - “Layout” to “5ch & SB & FW” and “Height Sp” (or “Dolby Sp”) to “4ch”
in the menu when connecting in this configuration. (v p. 215)
0
You can change the Front Height Speakers and Rear Height Speakers to any
Height/Ceiling/Dolby Atmos Enabled speakers in the “Amp Assign” - “Layout”
setting. (v p. 218)
o
Example layout when using surround back
and three sets of height speakers
C
FL FR
SBL
SBR
SW
RSLS
TML TMR
FHL FHR
RHL RHR
For each speaker connection, refer to the following.
0
“Connecting speakers to the speaker terminals” (v p. 42)
0
“Connecting an external power amplifier” (v p. 43)
0
Set “Floor” - “Layout” to “5ch & SB” and “Height Sp” (or “Dolby Sp”) to “6ch” in the
menu when connecting in this configuration. (v p. 215)
0
You can change the Front Height Speakers, Top Middle Speakers and Rear
Height Speakers to any Height/Ceiling/Dolby Atmos Enabled speakers in the “Amp
Assign” - “Layout” setting. (v p. 220)
