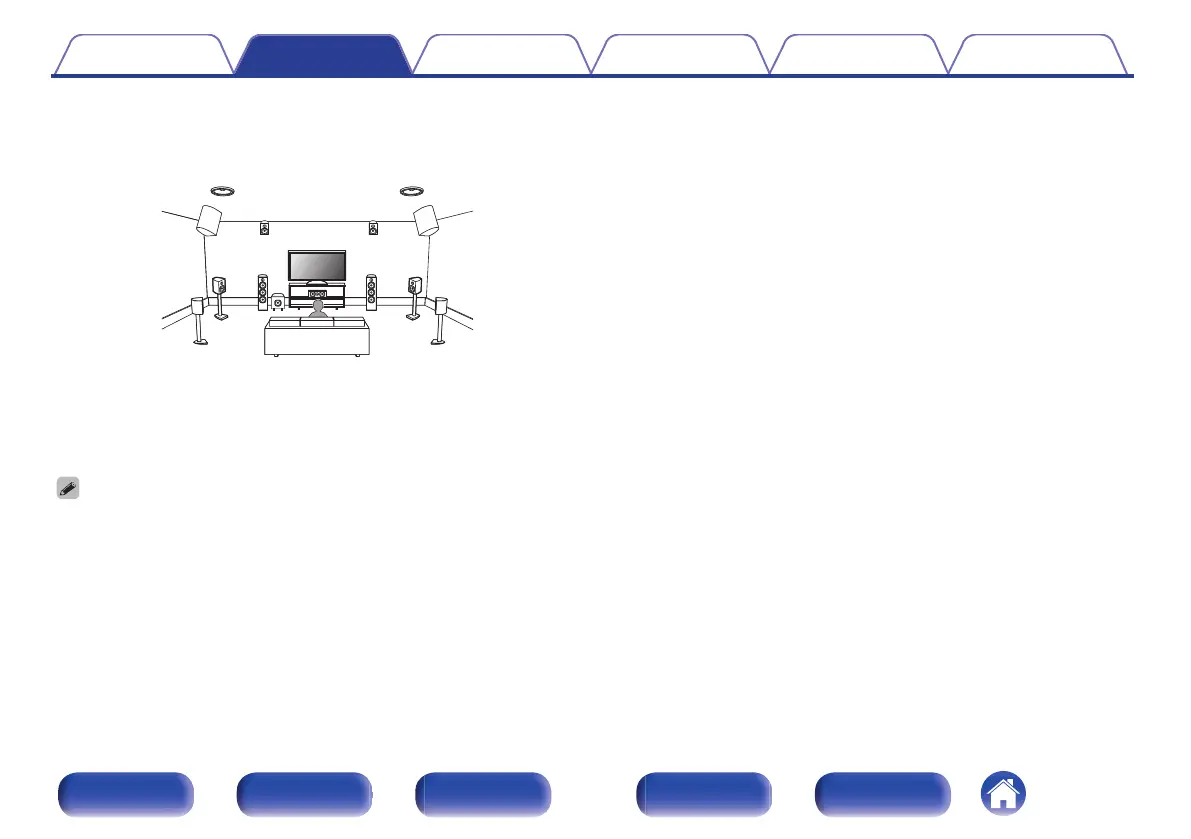

Example layout when using front wide and
three sets of height speakers
C
FL FR
SW
RSLS
TML TMR
FHL FHR
RHL RHR
FWL FWR
For each speaker connection, refer to the following.
0
“Connecting speakers to the speaker terminals” (v p. 42)
0
“Connecting an external power amplifier” (v p. 43)
0
Set “Floor” - “Layout” to “5ch & FW” and “Height Sp” (or “Dolby Sp”) to “6ch” in the
menu when connecting in this configuration. (v p. 215)
0
You can change the Front Height Speakers, Top Middle Speakers and Rear
Height Speakers to any Height/Ceiling/Dolby Atmos Enabled speakers in the “Amp
Assign” - “Layout” setting. (v p. 220)
