Denon AVC-A1H User Manual

o

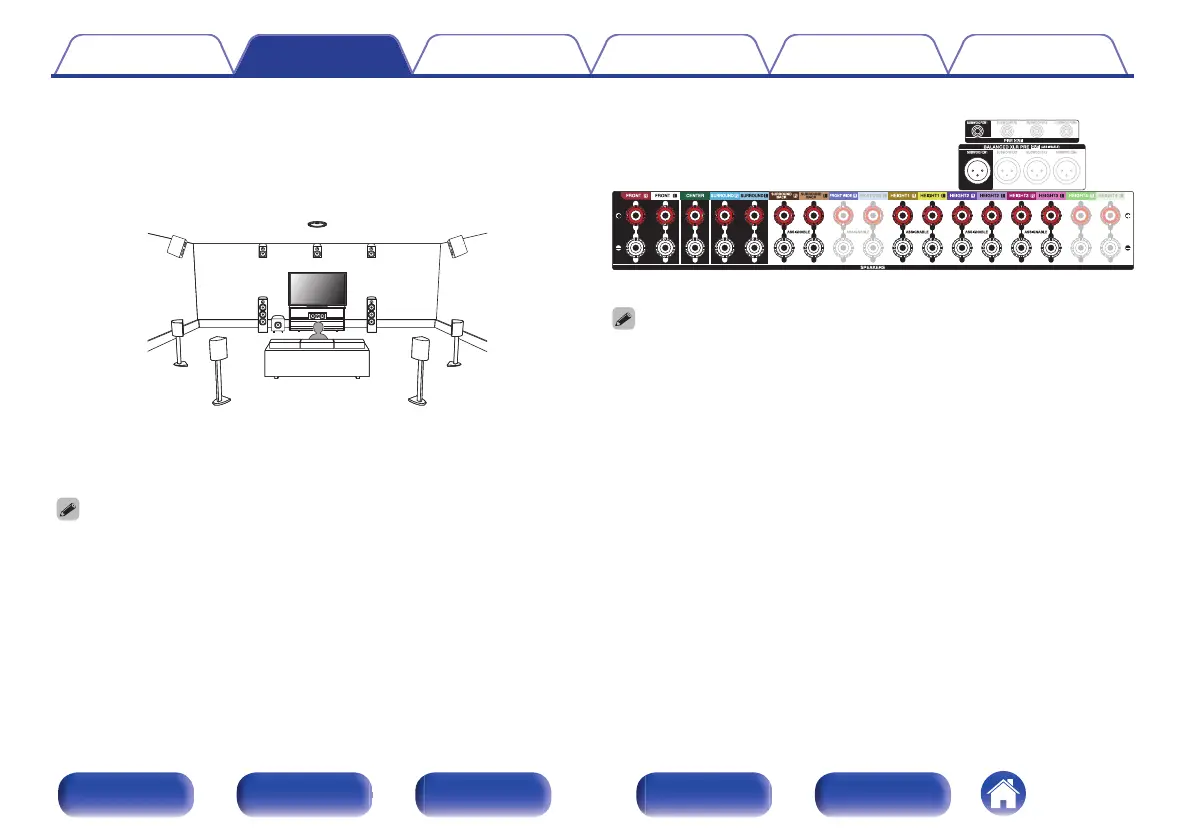

Example layout for Auro-3D 13.1 channel
system
This speaker configuration is optimized for Auro-3D playback.
FL FR
SW
SRSL
C
FHL FHR
CH
SHL SHR
TS
SBRSBL
For each speaker connection, refer to the following.
0
“Connecting speakers to the speaker terminals” (v p. 42)
0
“Connecting an external power amplifier” (v p. 43)
0
Set “Floor” - “Layout” to “5ch & SB” and “Height Sp” to “6ch” in the menu when
connecting in this configuration. (v p. 215)
Next, set “Height” - “Front Layout” to “Front Height & Center Height” and “Middle
Layout” to “Surround Height & Top Surround”. (v p. 220)
FR FL C SR SL FHR
SW1
FHLSBR SBL SHR SHL CH TS
0
To use two sets of height speakers with a center height and top surround
speakers, connect the center height and top surround speakers to the HEIGHT 3
connector.
0
For the best Auro-3D experience Surround Height speakers are recommended,
however you may substitute Rear Height speakers from a Dolby Atmos speaker
setup in place of Surround Height speakers.
Contents Connections Playback Settings Tips Appendix
58
Front panel Display Rear panel Remote Index

Denon AVC-A1H Specifications

General

Channels	15.4
Power Output	150W per channel (8 ohms, 20Hz-20kHz, 0.05% 2ch Drive)
HDMI Outputs	3
Audio Formats	Dolby Atmos, DTS:X, Auro-3D, IMAX Enhanced
Wireless Connectivity	Wi-Fi, Bluetooth
Type	AV Amplifier
IMAX Enhanced	Yes
8K/60Hz Pass-through	Yes
4K/120Hz Pass-through	Yes
HDR Support	HDR10, HDR10+, Dolby Vision, HLG
eARC	Yes
Phono Input	Yes
THD	0.05%
Frequency Response	10 Hz - 100 kHz
Input Sensitivity	200 mV
Signal-to-Noise Ratio	102 dB
Ethernet	Yes
USB Port	Yes
Multi-Room Audio	HEOS
Amplifier Type	Class AB
