Connecting 15.1-channel speakers
o

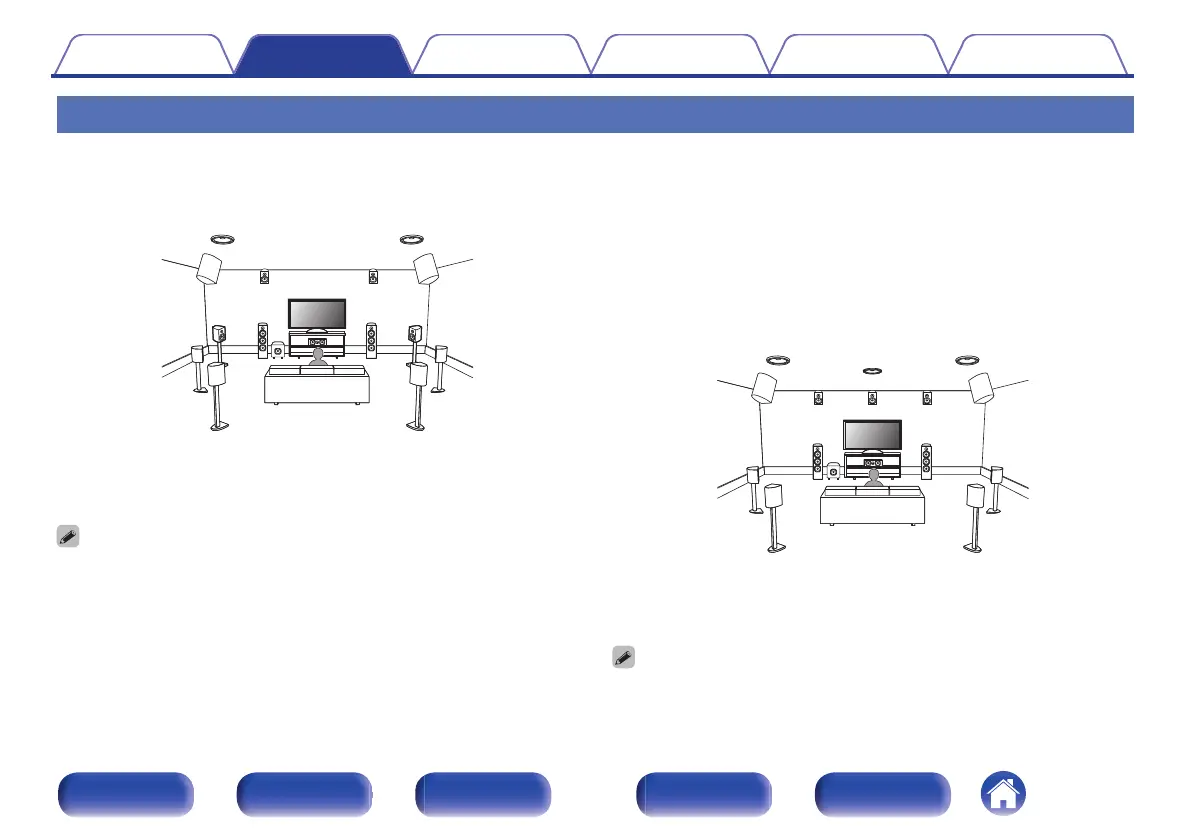

Example layout when using surround back,
Front Wide and three set of height speakers
C
FL FR
SW
RSLS
TML TMR
FHL FHR
RHL RHR
FWL FWR
SBL
SBR
For each speaker connection, refer to the following.
0
“Connecting speakers to the speaker terminals” (v p. 42)
0
“Connecting an external power amplifier” (v p. 43)
0
Set “Floor” - “Layout” to “5ch & SB & FW” and “Height Sp” (or “Dolby Sp”) to “6ch”
in the menu when connecting in this configuration. (v p. 215)
0
You can change the Front Height Speakers, Top Middle Speakers and Rear
Height Speakers to any Height/Ceiling/Dolby Atmos Enabled speakers in the “Amp
Assign” - “Layout” setting. (v p. 220)
o
Example layout when using surround back
and eight height speakers
This system can connect with up to 15.1-channel speakers and
simultaneously play up to 13.1-channels for Dolby Atmos and Auro-3D
playback.
The top middle speakers, top surround speaker, and center height
speaker are switched and played according to the audio format you
are playing.
TML TMR
C
SW
RSLS
RHL RHR
SBL
SBR
FHL FHR
FL FR
CH
TS
For each speaker connection, refer to the following.
0
“Connecting speakers to the speaker terminals” (v p. 42)
0
“Connecting an external power amplifier” (v p. 43)
0
Set “Floor” - “Layout” to “5ch & SB” and “Height Sp” to “8ch” in the menu when
connecting in this configuration. (v p. 215)
Contents Connections Playback Settings Tips Appendix
59
