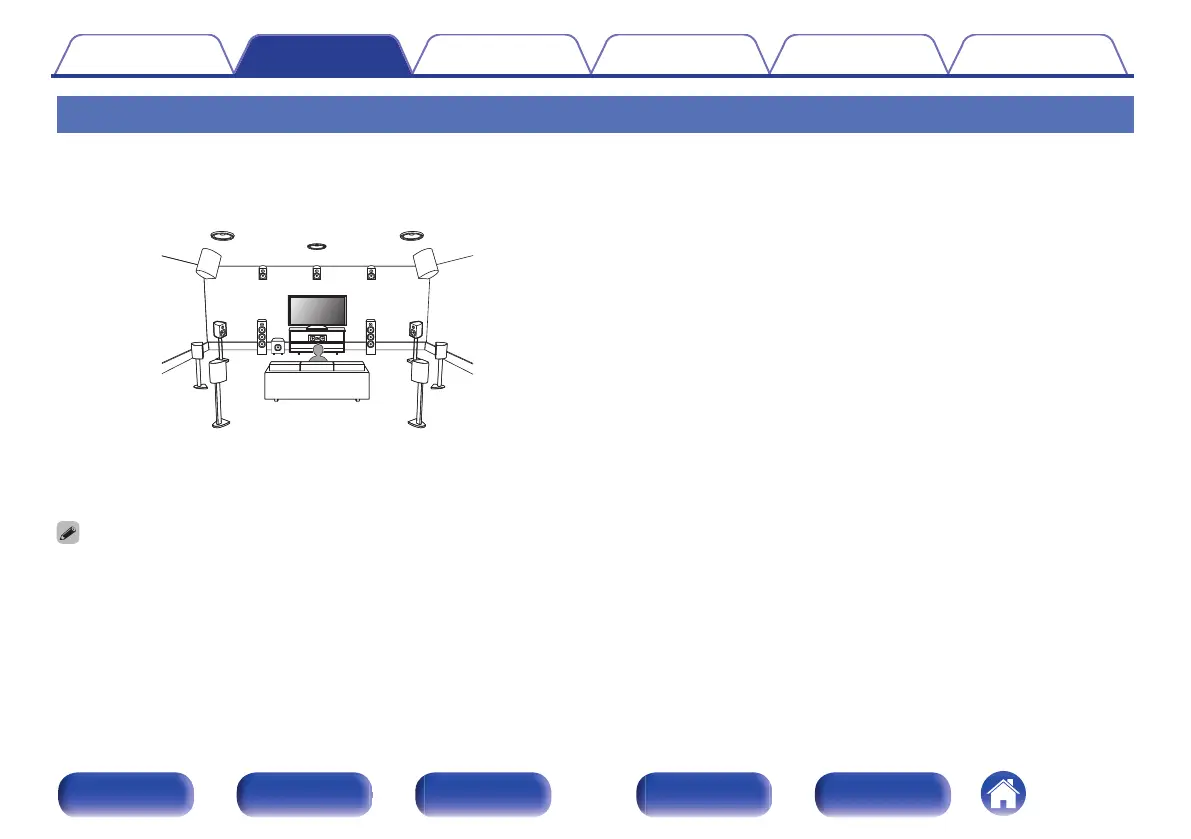

Connecting 17.1-channel speakers
This system can connect with up to 17.1-channel speakers and simultaneously play up to 15.1-channels for Dolby Atmos and play up to 13.1-channel for
Auro-3D playback.
The top middle speakers, top surround speaker, and center height speaker are switched and played according to the audio format you are playing.
FWL FWR
TML TMR
C
SW
RSLS
RHL RHR
SBL
SBR
FHL FHR
FL FR
CH
TS
For each speaker connection, refer to the following.
0
“Connecting speakers to the speaker terminals” (v p. 42)
0
“Connecting an external power amplifier” (v p. 43)
0
Set “Floor” - “Layout” to “5ch & SB & FW” and “Height Sp” to “8ch” in the menu
when connecting in this configuration. (v p. 215)
0
You can change the Front Height Speakers, Top Middle Speakers and Rear
Height Speakers to any Height/Ceiling/Dolby Atmos Enabled speakers in the “Amp
Assign” - “Layout” setting. (v p. 222)
Contents
Connections Playback Settings Tips Appendix
60
Front panel Display Rear panel Remote Index

Denon AVC-A1H Specifications

General

Channels	15.4
Power Output	150W per channel (8 ohms, 20Hz-20kHz, 0.05% 2ch Drive)
HDMI Outputs	3
Audio Formats	Dolby Atmos, DTS:X, Auro-3D, IMAX Enhanced
Wireless Connectivity	Wi-Fi, Bluetooth
Type	AV Amplifier
IMAX Enhanced	Yes
8K/60Hz Pass-through	Yes
4K/120Hz Pass-through	Yes
HDR Support	HDR10, HDR10+, Dolby Vision, HLG
eARC	Yes
Phono Input	Yes
THD	0.05%
Frequency Response	10 Hz - 100 kHz
Input Sensitivity	200 mV
Signal-to-Noise Ratio	102 dB
Ethernet	Yes
USB Port	Yes
Multi-Room Audio	HEOS
Amplifier Type	Class AB
