Bi-amp connection
o
13.1-channel playback (bi-amp connection of
front speakers)

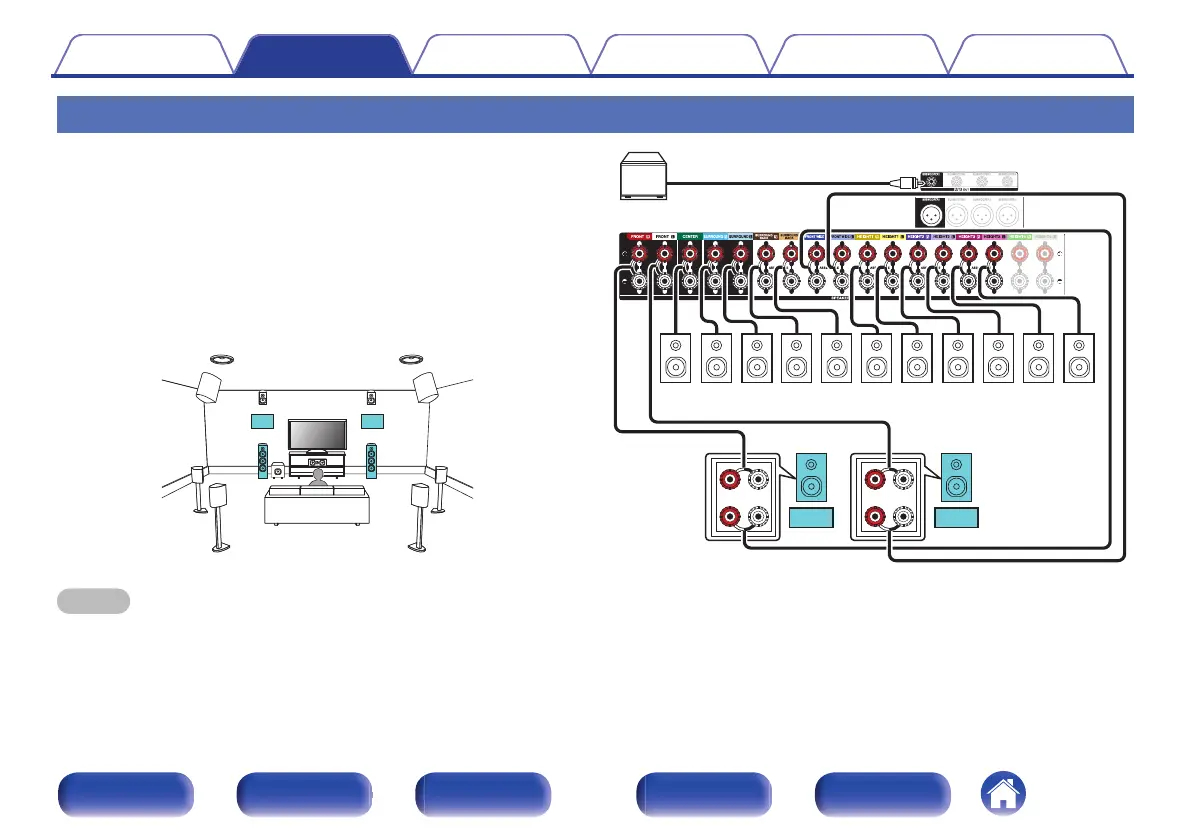

This system plays back 13.1-channels. You can use the bi-amp
connection for front speakers. Bi-amp connection is a method to
connect separate amplifiers to the tweeter terminal and woofer
terminal of a speaker that supports bi-amplification. This connection
enables back EMF (power returned without being output) from the
woofer to flow into the tweeter without affecting the sound quality,
producing a higher sound quality.
C
SW
RSLS
FHL FHR
RHL RHR
SBL
SBR
FL
(Bi-Amp) (Bi-Amp)
FR
TML TMR
NOTE
0
When making bi-amp connections, be sure to remove the short-circuiting plate or
wire between the speaker’s woofer and tweeter terminals.
wq
(R)
wq
(L)
SW
CSRSL
SBR SBL
FHR FHL RHR RHL
FR FL
TMR TML
z
2
z
2
z
2
z
2
z
2
z
2
z
1
z
1
z1
The speaker terminals for bi-amp connections to the front speakers vary
depending on the MAIN ZONE layout. Refer to “Amp Assign” - “Bi-Amp”.
(v p. 223)
z2
The height speakers, ceiling speakers and Dolby Atmos Enabled speakers
can be connected to the HEIGHT1, HEIGHT2 and HEIGHT3 speaker
terminals. Set the speaker to be connected from “Height” in the menu.
(v p. 217)
