Connecting multi-zone speakers
o

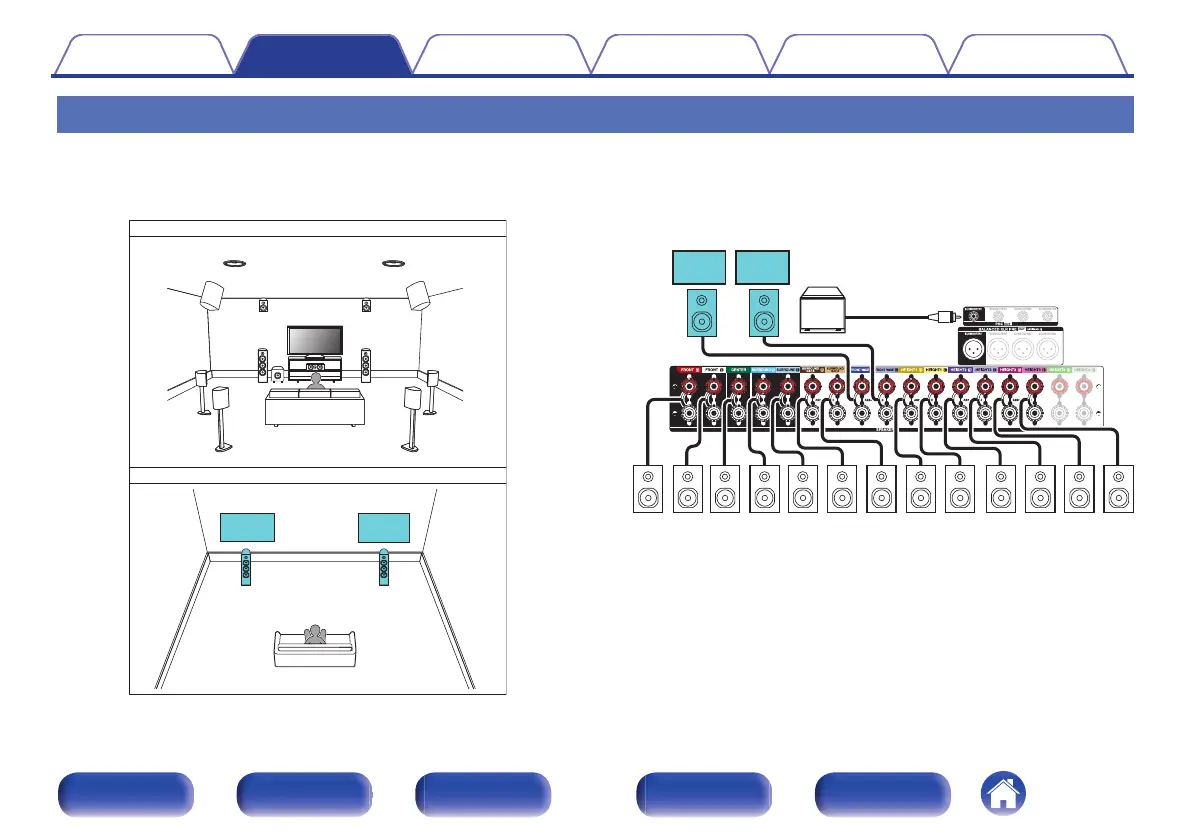

13.1-channel playback (MAIN ZONE) + 2-channel playback (ZONE2 or ZONE3)
This type of configuration plays back 13.1-channels in MAIN ZONE and 2-channels in ZONE2.
(Speakers can output audio from ZONE3 instead of ZONE2 (Assign Mode: 13.1ch + ZONE3)).
MAIN ZONE
ZONE2
ZONE2
L
ZONE2
R
C
SW
RSLS
FHL FHR
RHL
TML TMR
RHR
SBL
SBR
FL FR
CFR FL SR SL
SBR SBL
FHR FHL RHR RHL TMR TML
z
2
z
2
z
2
z
2
z
2
z
2
z
1
z
1
SW
ZONE2
R
ZONE2
L
z1
The speaker terminals for connecting to the ZONE2 (ZONE 3) speakers vary
depending on the main zone layout. Refer to “Amp Assign” - “ZONE2”
(“ZONE3”). (v p. 213)
z2
The height speakers, ceiling speakers and Dolby Atmos Enabled speakers
can be connected to the HEIGHT1, HEIGHT2 and HEIGHT3 speaker
terminals. Set the speaker to be connected from “Height” in the menu.
(v p. 217)
