Denon AVC-A1H

o
11.1-channel playback (bi-amp connection of front speakers: MAIN ZONE) + 2-channel playback
(ZONE2)

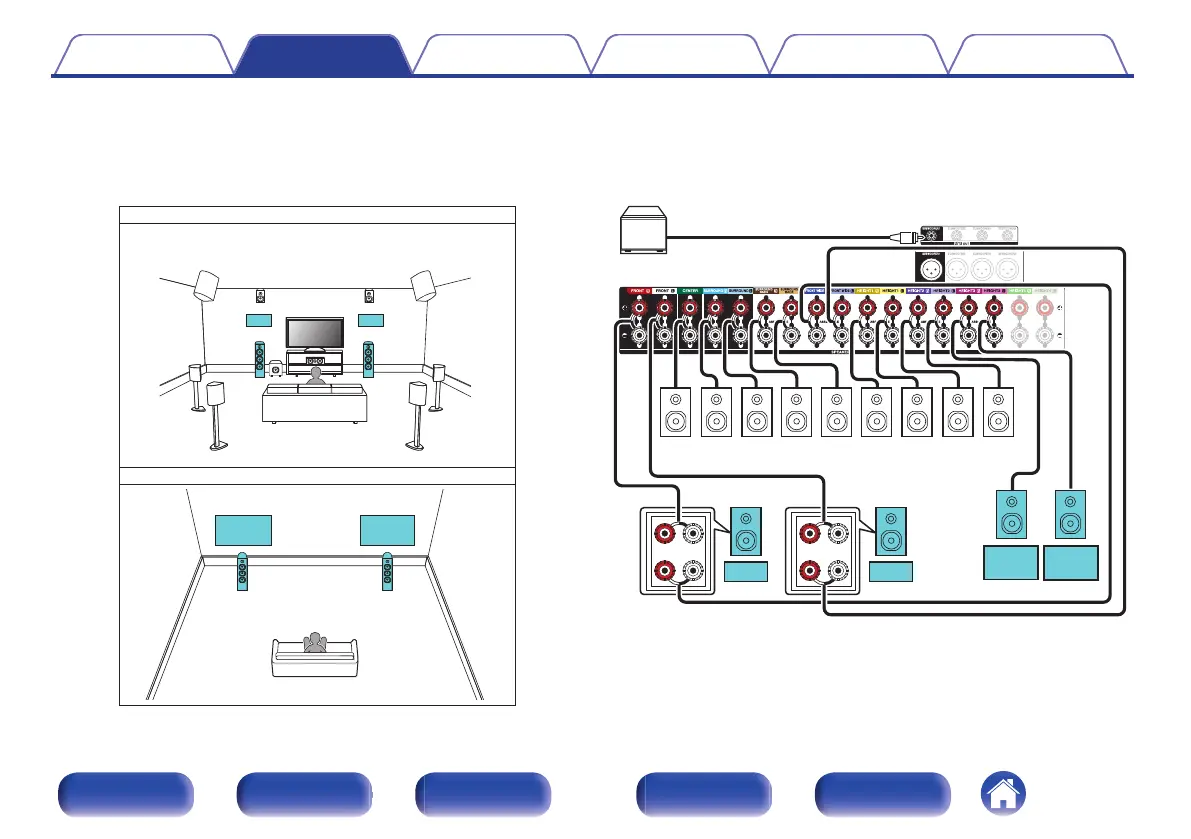

This type of configuration plays back 11.1-channels in MAIN ZONE and 2-channels in ZONE2. You can use the bi-amp connection for front speakers
in MAIN ZONE.
MAIN ZONE
ZONE2
ZONE2
L
ZONE2
R
C
SW
RSLS
FHL FHR
RHL RHR
SBL
SBR
FL
(Bi-Amp) (Bi-Amp)
FR
wq
(R)
wq
(L)
SW
CSRSL
SBR SBL
FHR FHL RHR RHL
FR FL
z
2
z
2
z
2
z
2
z
1
z
1
z
1
z
1
ZONE2
R
ZONE2
L
z1
The terminals for bi-amp connections of the front speakers and the speaker
terminals for the ZONE2 speakers vary depending on the MAIN ZONE layout.
Refer to “Amp Assign” - “Bi-Amp” and “ZONE2”. (v p. 213)
z2
The height speakers, ceiling speakers and Dolby Atmos Enabled speakers
can be connected to the HEIGHT1 and HEIGHT2 speaker terminals. Set the
speaker to be connected from “Height” in the menu. (v p. 217)
