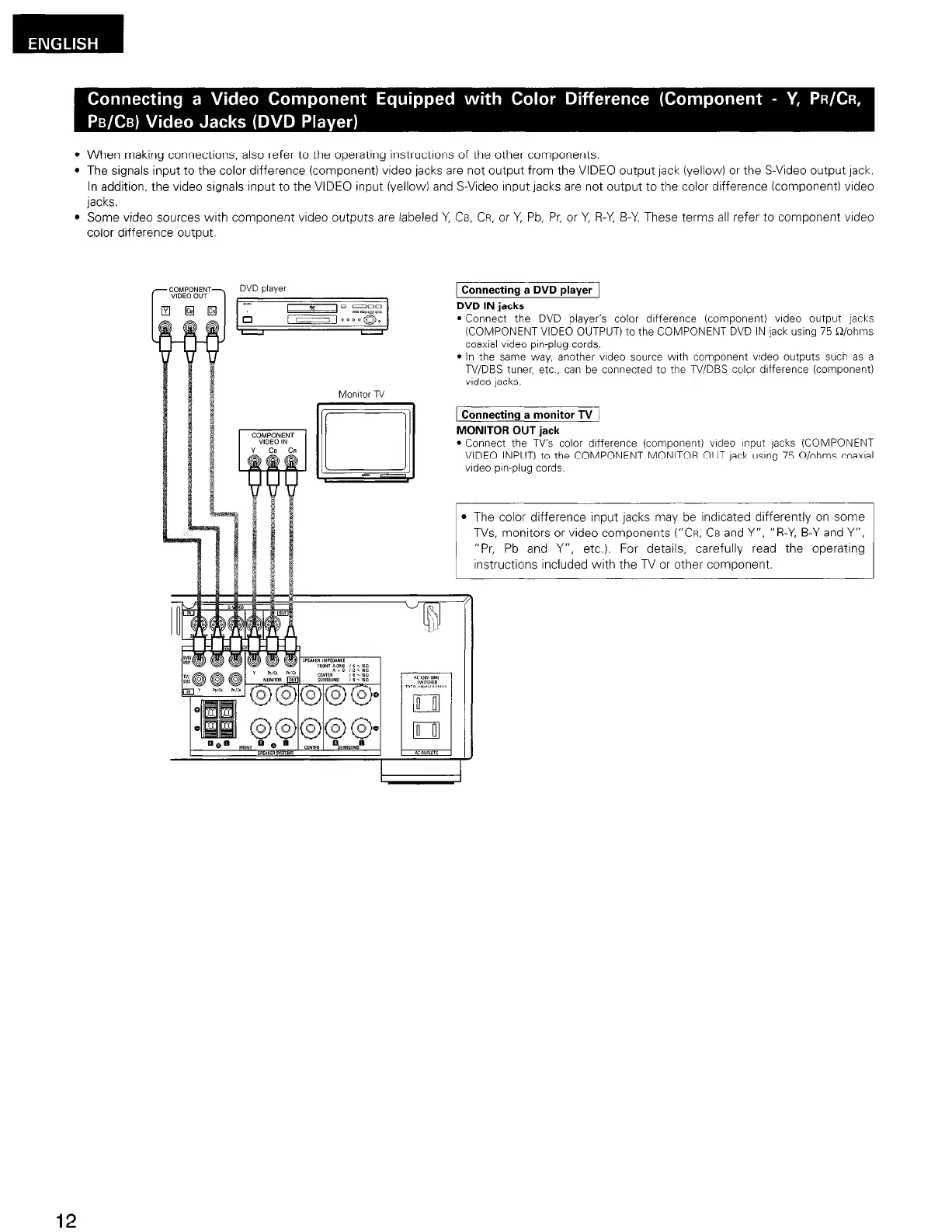

l When making connections, also refer to the operating instructrons of the other components,
l The signals input to the color difference (component) video jacks are not output from the VIDEO output jack (yellow) or the S-Video output jack,
In addition, the video signals input to the VIDEO input (yellow) and S-Video Input jacks are not output to the color drfference (component) vrdeo
jacks.
l Some video sources wrth component video outputs are labeled Y, Ca, CR, or Y, Pb, Pr, or Y, R-Y, B-Y. These terms all refer to component vrdeo
color difference output.
1 Connecting a DVD player 1
DVD IN jacks
l
Connect the DVD player’s color dffference (component) wdeo output jacks
(COMPONENT VIDEO OUTPUT) to the COMPONENT DVD IN lack wnq 75 Q/ohms
coaxial video pin-plug cords.
Mcmtor TV
szlll
l
In the same way, another video source with component wdeo outputs such as a
TV/DES tuner, etc., can be connected to the TV/DBS color difference (component)
video jacks.
1 Connecting a monitor TV 1
MONITOR OUT jack
l
Connect the TV’s color difference (component) wdeo Input jacks (COMPONENT
VIDEO INPUT) to the COMPONENT MONITOR OUT jack using 75 Q/ohms coaxial
wdeo pjn-plug cords.
l The color difference input jacks may be indrcated differently on some
TVs, monitors or video components (“CR, Ca and Y”, “R-Y, B-Y and Y”,
“Pr, Pb and Y”,
etc.). For details, carefully read the operating
instructions included wrth the TV or other component.
12
