Denon AVR-1603 User Manual

0

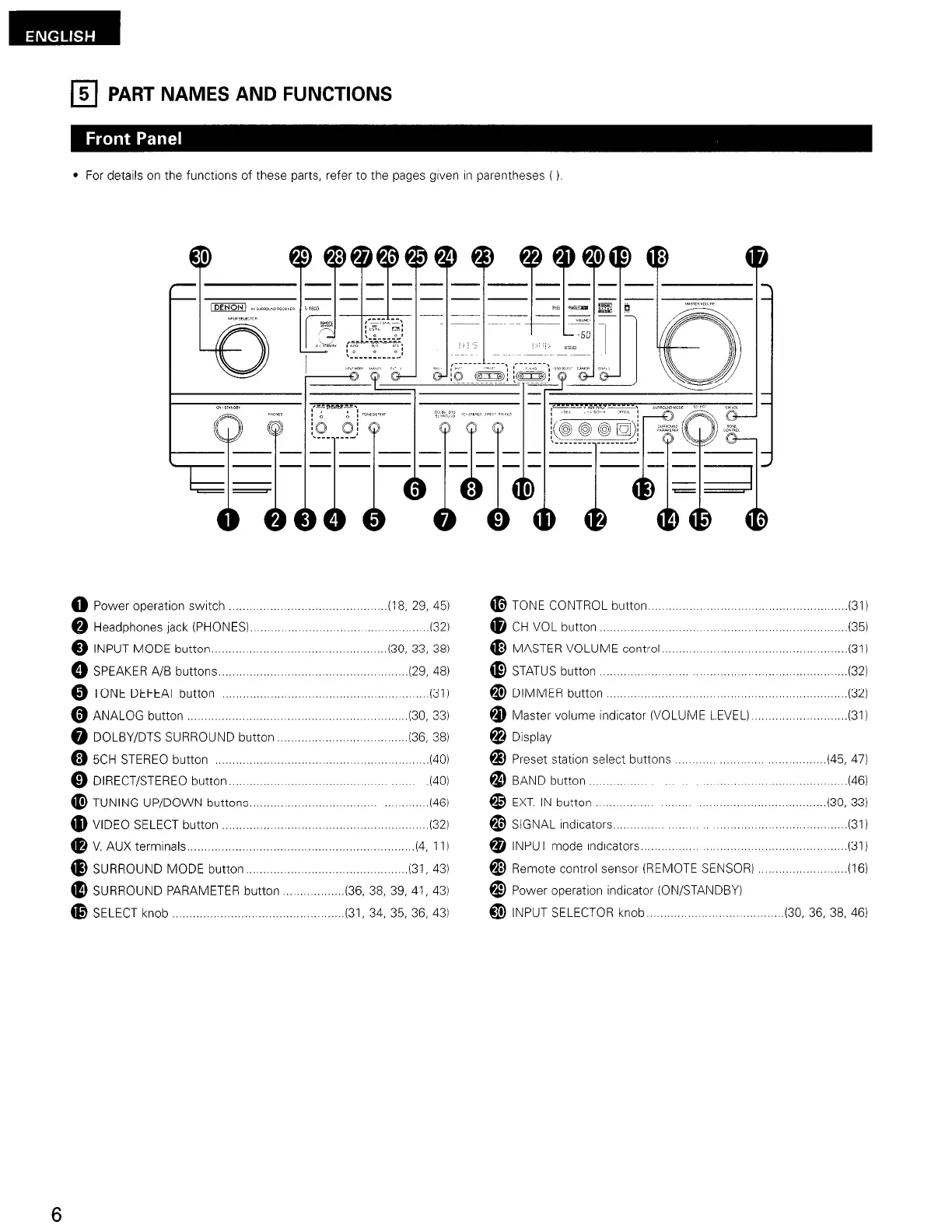

5 PART NAMES AND FUNCTIONS
l For details on the functions of these parts, refer to the pages given in parentheses ( )
0 Power operation switch ........................................ (18, 29, 451
@ Headphones jack (PHONES). ........................................ ..(32 1
@ INPUT MODE button.. ............... ................................ (30, 33, 381
0 SPEAKER A/B buttons.. ......................... .......................... (‘29, 48)
@ TONE DEFEAT button .................................................... (31 1
@ ANALOG button
................................................................
(30, 331
@ DOLBY/DTS SURROUND button ................................ (36, 381
@ 5CH STEREO button ........................................................ ..(40)
@ DIRECT/STEREO button
..................................................
.(40)
@) TUNING UP/DOWN buttons.. .......................................... .f46)
@ VIDEO SELECT button
...........................................................
(32)
@ V, AUX terminals..
................................................................
(4, 1 II
@ SURROUND MODE button..
.............................................
i31, 43)
@ SURROUND PARAMETER button ................. (36, 38, 39, 41, 43)
@ SELECT knob ................................................. (31, 34, 35, 36, 43)
@ TONE CONTROL button.. .......... ..................................... (31)
@ CH VOL button ............................ ........................................ (35)
@ MASTER VOLUME control.. ................................ ... ...... ... (31)
@ STATUS button ....................... ..................... ........ (321
@ DIMMER button ..................................................................... (32)
@ Master volume indrcator (VOLUME LEVEL). ........ ... .......... .. (311
@ Display
@ Preset station select buttons (45, 47)
@
BAND button
@ EXT. IN button 11. (30,‘::;
@
SIGNAL rndrcators
,., (31)
@ INPUT mode indrcators (31)
@ Remote control sensor (REMOTE SENSOR) (16)
@ Power operation indicator (ON/STANDBY)
@ INPUT SELECTOR knob (30, 36, 38, 46)
6

Denon AVR-1603 Specifications

General

Output level	47000 mV
Receiver type	Surround
Frequency range	10 - 10000 Hz
Input sensitivity	200 mV
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	96 dB
Total Harmonic Distortion (THD)	0.8 %
Power output per channel (1KHz@6 Ohm)	110 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	0
AC (power) in	Yes
Composite video in	4
S-Video inputs quantity	3
Digital audio coaxial in	1
Component video (YPbPr/YCbCr) in	2
Connectivity technology	Wired
Speakers connectivity type	-
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Optical drive included	No
AC input voltage	120 V
AC input frequency	60 Hz
Product color	Black
Audio decoders	DTS, Dolby Pro Logic II
Apple docking compatibility	Not supported

Weight and Dimensions

Depth	417 mm
Width	434 mm
Height	147 mm
Weight	10400 g
