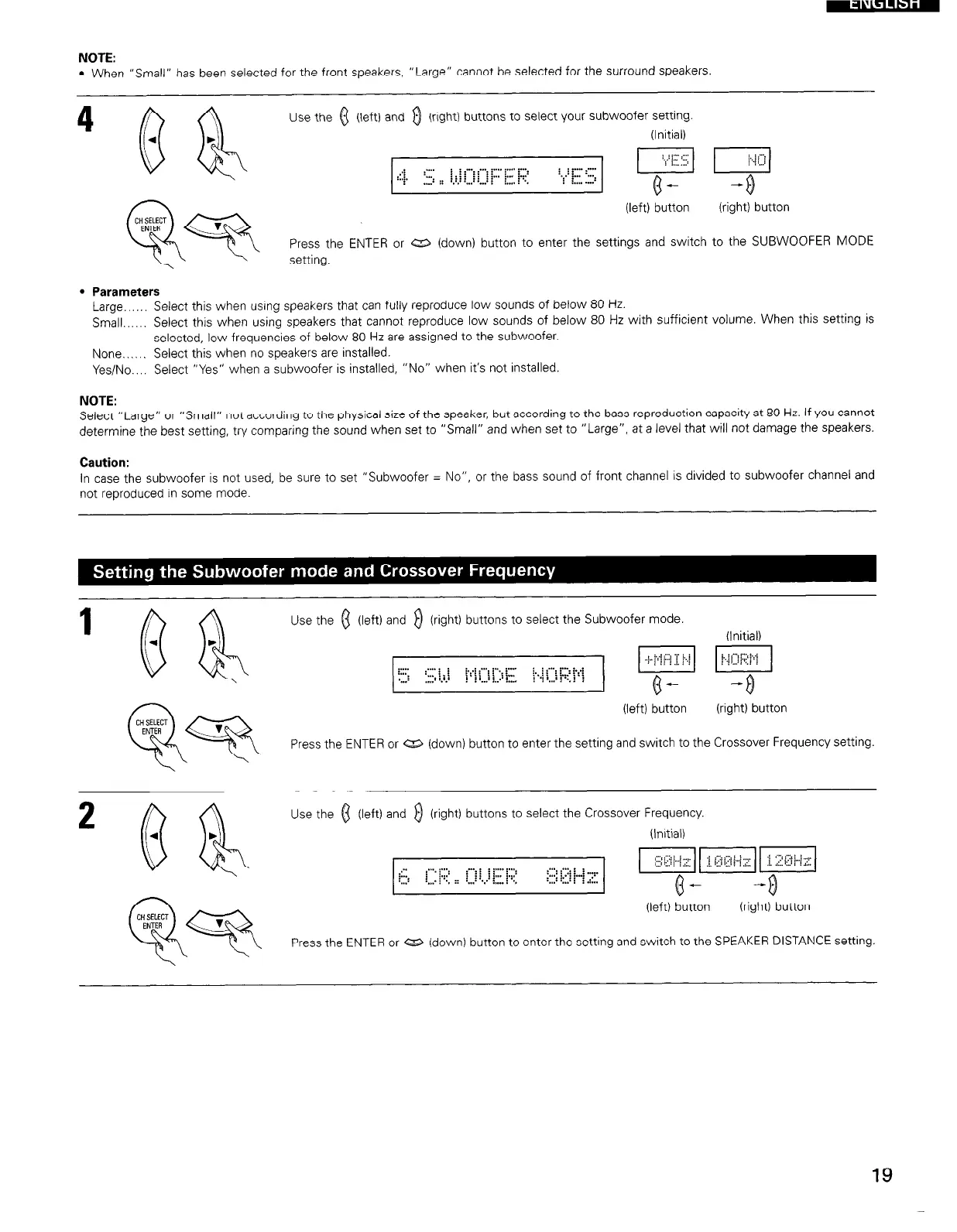

NOTE:
l When “Small” has been selected for the front speakers,
“Large” cannot be selected for the surround speakers
Use the Q (left) and 0 (right) buttons to select your subwoofer setting
(Initial)
.
::j. ::::
1 . ; y: :
. . .
: :
. . . . . y. :....
:....
. ....: :: :~:~::...!!“.i~ ;:::.i...
~.:~~::~:::~
. :........:
(p -0
Qq
(left) button
(right) button
CH SELECT
ENTER
v
Press the ENTER or a (down) button to enter the settings and switch to the SUBWOOFER MODE
setting.
Parameters
Large.. Select this when using speakers that can fully reproduce low sounds of below 80 Hz.
Small.,..., Select this when using speakers that cannot reproduce low sounds of below 80 Hz with sufficient volume. When this setting is
selected, low frequencies of below 80 Hz are assigned to the subwoofer.
None.. ,. Select this when no speakers are installed.
Yes/No..,. Select “Yes” when a subwoofer is installed, “No” when it’s not installed.
NOTE:
Select “Large” or “Small” not according to the physical size of the speaker, but according to the bass reproduction capacity at 80 Hz. If you cannot
determine the best setting, try comparing the sound when set to “Small” and when set to “Large”,
at a level that will not damage the speakers.
Caution:
In case the subwoofer is not used, be sure to set “Subwoofer = No”,
or the bass sound of front channel is divided to subwoofer channel and
not reproduced in some mode.
Use the 0 (left) and 0 (right) buttons to select the Subwoofer mode.
(Initial)
(left) button
(right) button
Press the ENTER or Q3 (down) button to enter the setting and switch to the Crossover Frequency setting.
Use the 6 (left) and 0 (right) buttons to select the Crossover Frequency.
(Initial)
.-
! 7. . . . .
:-.
iI-> . $1
:...::..:: ~~
.....
~~~1
:: f-i :...:
1 C/’ ; i y; .... z y:l -. :I-> F.!
!
.:::. (j- -0
(left) button (right) button
Press the ENTER or a (down) button to enter the setting and switch to the SPEAKER DISTANCE setting.
19
