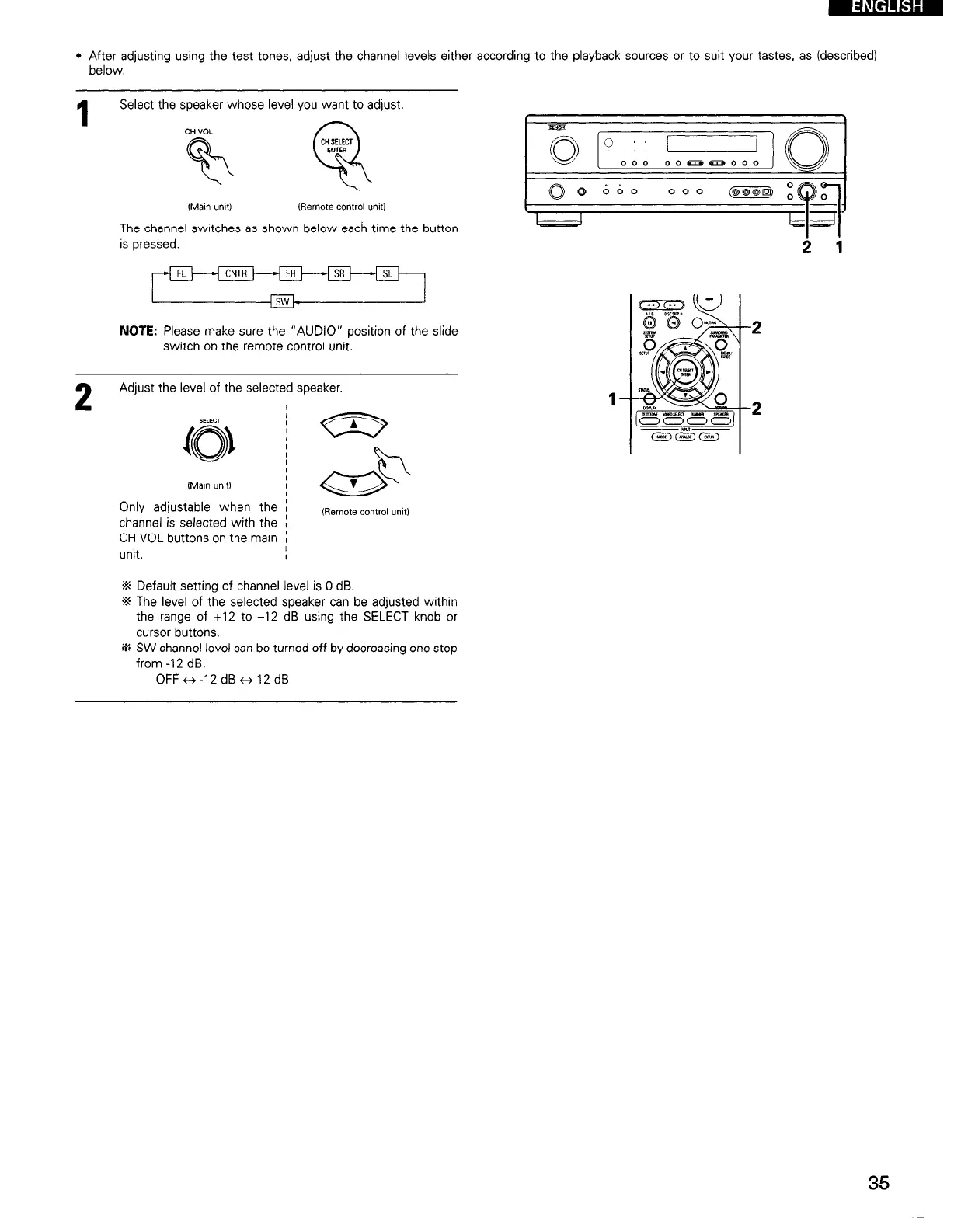

l After adjusting using the test tones, adjust the channel levels either according to the playback sources or to suit your tastes, as (described)
below.
Select the speaker whose level you want to adjust.
’ cy& q
(Main unltl
~Remote control unit)
The channel switches as shown below each time the button
is pressed.
NOTE: Please make sure the “AUDIO” position of the slide
switch on the remote control unit.
2
Adjust the level of the selected speaker.
*ELECT
1 a
1
I
,
2-T
Only adjustable when the ~
channel is selected with the ;
U3emote control unit)
CH VOL buttons on the main ~
unit.
1
I
% Default setting of channel level is 0 dB.
*X The level of the selected speaker can be adjusted within
the range of +I2 to -12 dB using the SELECT knob or
cursor buttons.
% SW channel level can be turned off by decreasing one step
from -12 dB.
OFF++-12dBel2dB
35

Denon AVR-1603 Specifications

General

Output level	47000 mV
Receiver type	Surround
Frequency range	10 - 10000 Hz
Input sensitivity	200 mV
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	96 dB
Total Harmonic Distortion (THD)	0.8 %
Power output per channel (1KHz@6 Ohm)	110 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	0
AC (power) in	Yes
Composite video in	4
S-Video inputs quantity	3
Digital audio coaxial in	1
Component video (YPbPr/YCbCr) in	2
Connectivity technology	Wired
Speakers connectivity type	-
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Optical drive included	No
AC input voltage	120 V
AC input frequency	60 Hz
Product color	Black
Audio decoders	DTS, Dolby Pro Logic II
Apple docking compatibility	Not supported

Weight and Dimensions

Depth	417 mm
Width	434 mm
Height	147 mm
Weight	10400 g
