Denon AVR-1712 Service Manual

5
TECHNICAL SPECIFICATIONS
n
Audio Section
• Poweramplier
Rated output :
Front :
90 W + 90 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
125 W + 125 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Center :
90 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
125 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Surround :
90 W + 90 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
125 W + 125 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Surround back:
90 W + 90 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
125 W + 125 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Output connectors : 6 – 16 Ω
• Analog
Input sensitivity/Input impedance : 200 mV/47 kΩ
Frequency response: 10 Hz – 100 kHz — +1, –3 dB (DIRECT mode)
S/N : 100 dB (IHF–A weighted, DIRECT mode)
n
Video section
• Standard video connectors
Input/output level and impedance : 1 Vp-p, 75 Ω
Frequency response : 5 Hz – 10 MHz — 0, –3 dB
• Color component video connector
Input/output level and impedance :
Y (brightness) signal — 1 Vp-p, 75 Ω
P
B / CB signal — 0.7 Vp-p, 75 Ω
P
R / CR signal — 0.7 Vp-p, 75 Ω
Frequency response : 5 Hz – 60 MHz — 0, –3 dB
n
Tuner section
[FM](Note: μV at 75 Ω, 0 dBf = 1 x 10
–15
W)
Receiving Range :
[FM]
87.5 MHz – 107.9 MHz [AM]520 kHz – 1710 kHz
Usable Sensitivity :
[FM]
1.2 μV (12.8 dBf) [AM]18 μV
50 dB Quieting Sensitivity :
[FM]MONO 2.8 μV (20.2 dBf)
S/N (IHF-A) :
[FM]
MONO 70 dB (IHF–A weighted, DIRECT mode)
STEREO 67 dB (IHF–A weighted, DIRECT mode)
Total harmonic Distortion (at 1 kHz) :
[FM]
MONO 0.7 %
STEREO 1.0 %
n
General
Power supply : AC 120 V, 60 Hz
Power consumption :
460 W
0.1 W (Standby)
3 W (CEC standby)
Maximum external dimensions :
435 (W) x 162 (H) x 382 (D) mm
Weight : 10.2 kg
n
Remote Control Unit (RC-1156)
Batteries : R6/AA Type (two batteries)
Maximum external dimensions : 53 (W) x 224 (H) x 28 (D) mm
Weight : 160 g (including batteries)

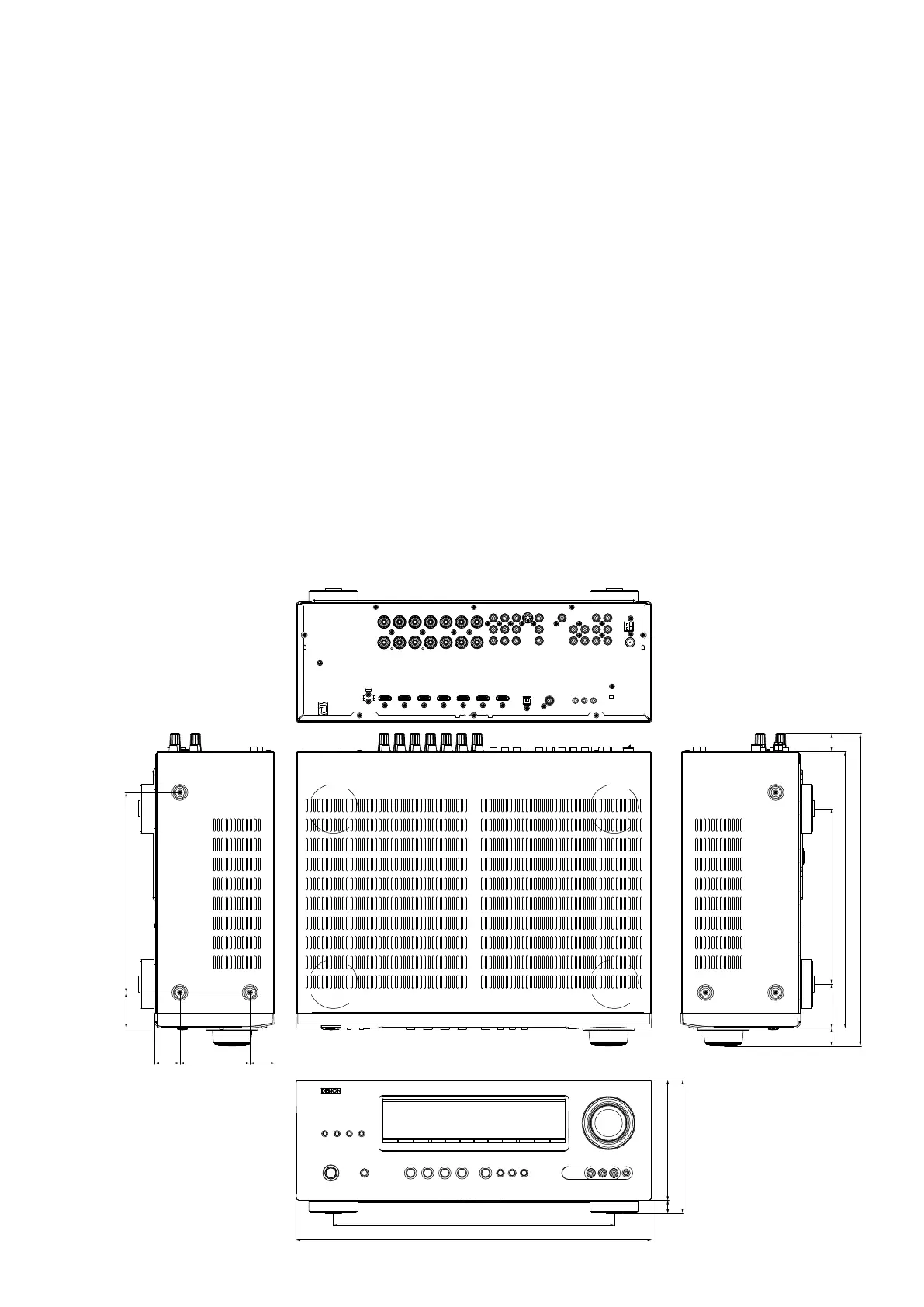

DIMENSION
245.043.5
30.5 30.586.0
435.0
344.0
162.0
22.0
53.8 213.9
338.5 382.0
16.0
146.0
21.5

Denon AVR-1712 Specifications

General

Brand	Denon
Model	AVR-1712
Category	Stereo Receiver
Language	English
