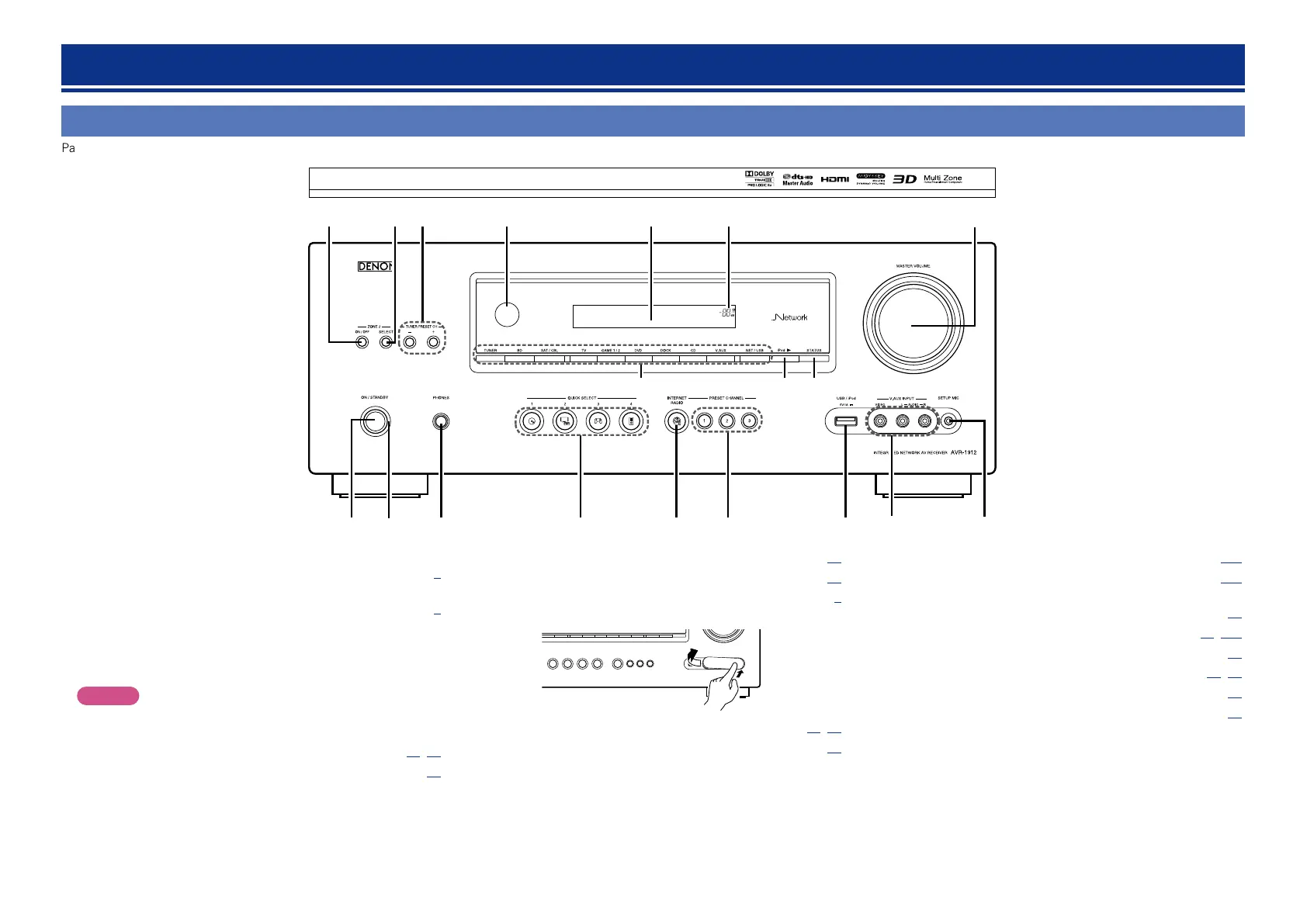

Panel delantero
Para los botones no explicados aquí, vea la página indicada entre paréntesis ( ).
Q3Q4Q6 Q5 Q2
Q1 Q0
o
i
Q7 Q8 Q9
utr yewq
q Botón de alimentación
(ON/STANDBY) ································································· (C 5)
Enciende y apaga la unidad (modo de espera).
w Indicador de alimentación ················································ (C 5)
e Conector de auriculares (PHONES)
Cuando enchufe unos auriculares a este conector, se dejará de oír
el audio a través de los altavoces conectados o de los conectores
PRE OUT.
NOTA
Para evitar pérdida de audición, no suba el volumen
excesivamente cuando use los auriculares.
r Botones QUICK SELECT ··················································· (61, 69)
t Botón INTERNET RADIO ························································· (29)
Q2 Pantalla ··················································································· (109)
Q3 Sensor de mando a distancia ··············································· (112)
Q4 Botones de los canales presintonizados
(TUNER PRESET CH +, –) ························································ (27)
Q5 Botón ZONE SELECT ······················································· (68, 101)
Q6 Botón ZONE2 ON/OFF ···························································· (68)
Q7 Botones selectores de fuente de entrada ······················· (20, 68)
Q8 Botón de reproducción del iPod (iPod 1) ····························· (25)
Q9 Botón STATUS ········································································ (81)
y Botones PRESET CHANNEL (1 – 3) ········································ (30)
u Puerto USB/iPod ····································································· (10)
i Conectores V.AUX INPUT ························································ (9)
Quite la tapa de los conectores cuando quiera utilizarlos.
o Conector SETUP MIC ························································ (15, 56)
Q0 Control MASTER VOLUME ····················································· (21)
Q1 Indicador de volumen principal
