L1
L2
L3
21
ENGLISH
2
3
4
ENTER
ENTER

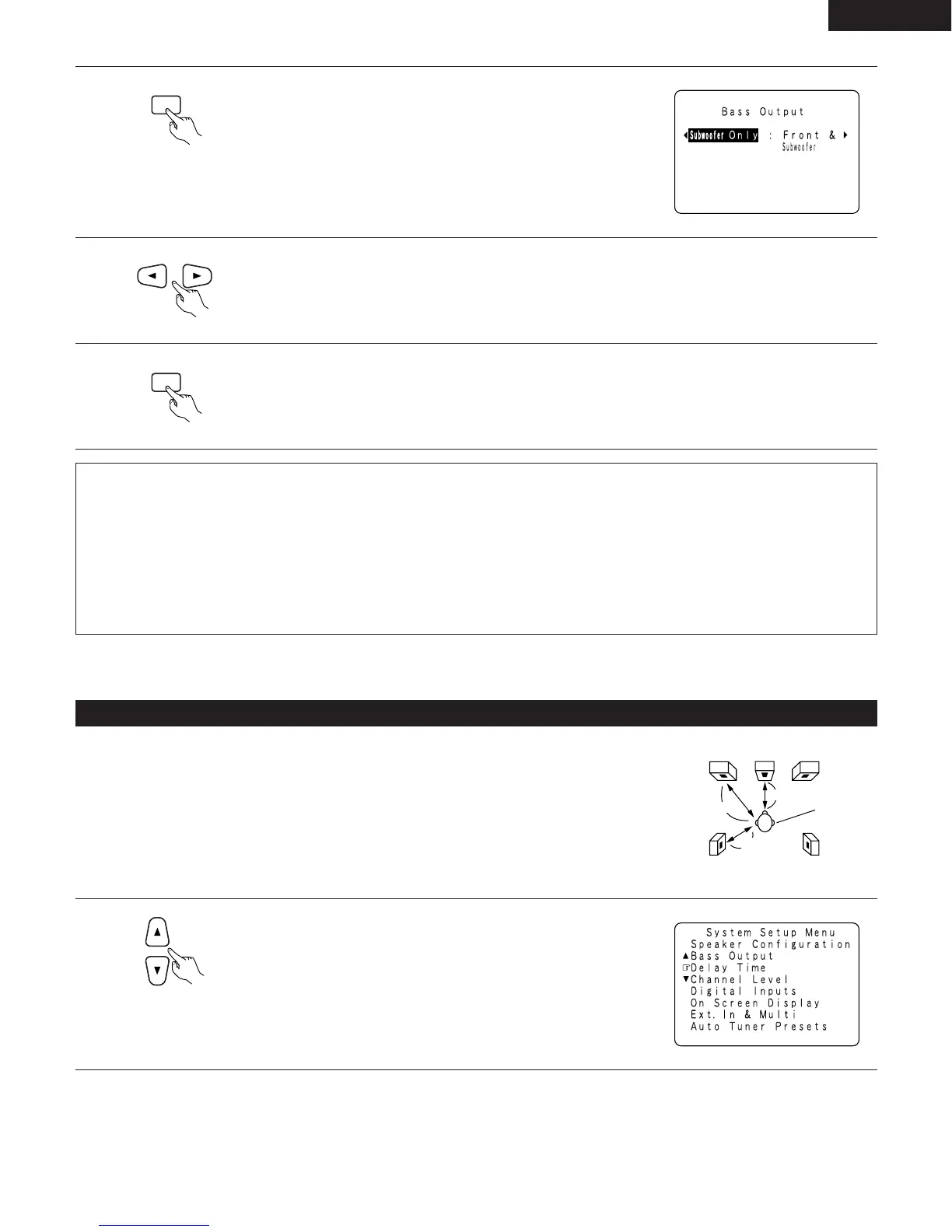

Switch to the Bass Output screen.
Select the bass signal playback mode.
Enter the setting.
The System Setup Menu reappears.
NOTES:
In the Bass Output screen, you have the flexibility to choose how bass information is distributed to your speakers if you have large front left
and right speakers and a subwoofer as part of your home theater speaker system.
By selecting the “Front and Subwoofer” option, you will be sending the same bass frequencies to both the front left, front right, AND the
subwoofer speakers simultaneously. Depending upon your room size and shape, this can create a more evenly distributed bass around the
room or sometimes actually decrease the amount of bass in the room due to low frequency cancellations.
If the “Subwoofer Only” option is selected, bass from the large front left and front right speakers goes ONLY to the front left and front right
speakers. Bass going to the subwoofer comes from the LFE signal and any speakers which you have designated as “Small.” This selection
is preferred as it reduces the chances of bass cancellations in the room.
Once you have positioned all of your speakers in the room, choose the option which gives you the most solid sounding bass.
Setting the delay time
Input the distances from the listening position to the speakers and set the surround delay time.
Preparations:
Measure the distances from the listening position to the speakers (L1 to L3 on the diagram at the right).
L1: Distance from center speakers to listening position
L2: Distance from front speakers to listening position
L3: Distance from rear speakers to listening position
1
At the System Setup Menu select “Delay Time”.
FL
Center
FR
Listening
position
SL
SR

Other manuals for Denon AVR-3300

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Denon AVR-3300 and is the answer not in the manual?

Denon AVR-3300 Specifications

Audio Specifications IconAudio Specifications
rated output (front)105 W + 105 W (8 Ω, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
rated output (center)105 W (8 Ω, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
dynamic power140 W x 2 ch (8 Ω)
input sensitivity / input impedance200 mV / 47 kΩ
frequency response (analog)10 Hz ~ 50 kHz: +0, –3 dB (DIRECT mode)
S/N (analog)102 dB (DIRECT mode)
distortion (analog)0.01% (20 Hz ~ 20 kHz) (DIRECT mode)
D/A output (rated)2 V (at 0 dB playback)
total harmonic distortion (digital)0.008% (1 kHz, at 0 dB)
S/N ratio (digital)102 dB
dynamic range (digital)96 dB
phono input sensitivity2.5 mV
RIAA deviation±1 dB (20 Hz to 20 kHz)
signal-to-noise ratio (phono)74 dB (A weighting, with 5 mV input)
distortion factor (phono)0.03% (1 kHz, 3 V)
Video Specifications IconVideo Specifications
input / output level and impedance (standard video)1 Vp-p, 75 Ω
frequency response (standard video)5 Hz ~ 10 MHz — +0, –3 dB
input / output level and impedance (S-video)Y signal — 1 Vp-p, 75 Ω; C signal — 0.286 Vp-p, 75 Ω
frequency response (S-video)5 Hz ~ 10 MHz — +0, –3 dB
input / output level and impedance (color component video)Y signal — 1 Vp-p, 75 Ω; Cb/Cr signal — 0.7 Vp-p, 75 Ω
frequency response (color component video)5 Hz ~ 20 MHz — +0, –3 dB
Tuner Specifications IconTuner Specifications
receiving range (FM)87.50 MHz ~ 107.90 MHz
receiving range (AM)520 kHz ~ 1710 kHz
usable sensitivity (FM)1.0 µV (11.2 dBf)
50 dB quieting sensitivity (MONO)1.6 µV (15.3 dBf)
S/N (IHF-A) (MONO)80 dB
total harmonic distortion (MONO)0.15% (at 1 kHz)
General Specifications IconGeneral Specifications
power supply (North America model)AC 120 V, 60 Hz
power consumption (North America model)5.6 A
maximum external dimensions434 (W) x 171 (H) x 416 (D) mm
weight15.0 kg (33 lbs 2 oz)
batteries (remote control)R6P/AA Type (two batteries)
external dimensions (remote control)70 (W) x 215 (H) x 24 (D) mm
weight (remote control)200 g (Approx. 7 oz) (including batteries)
