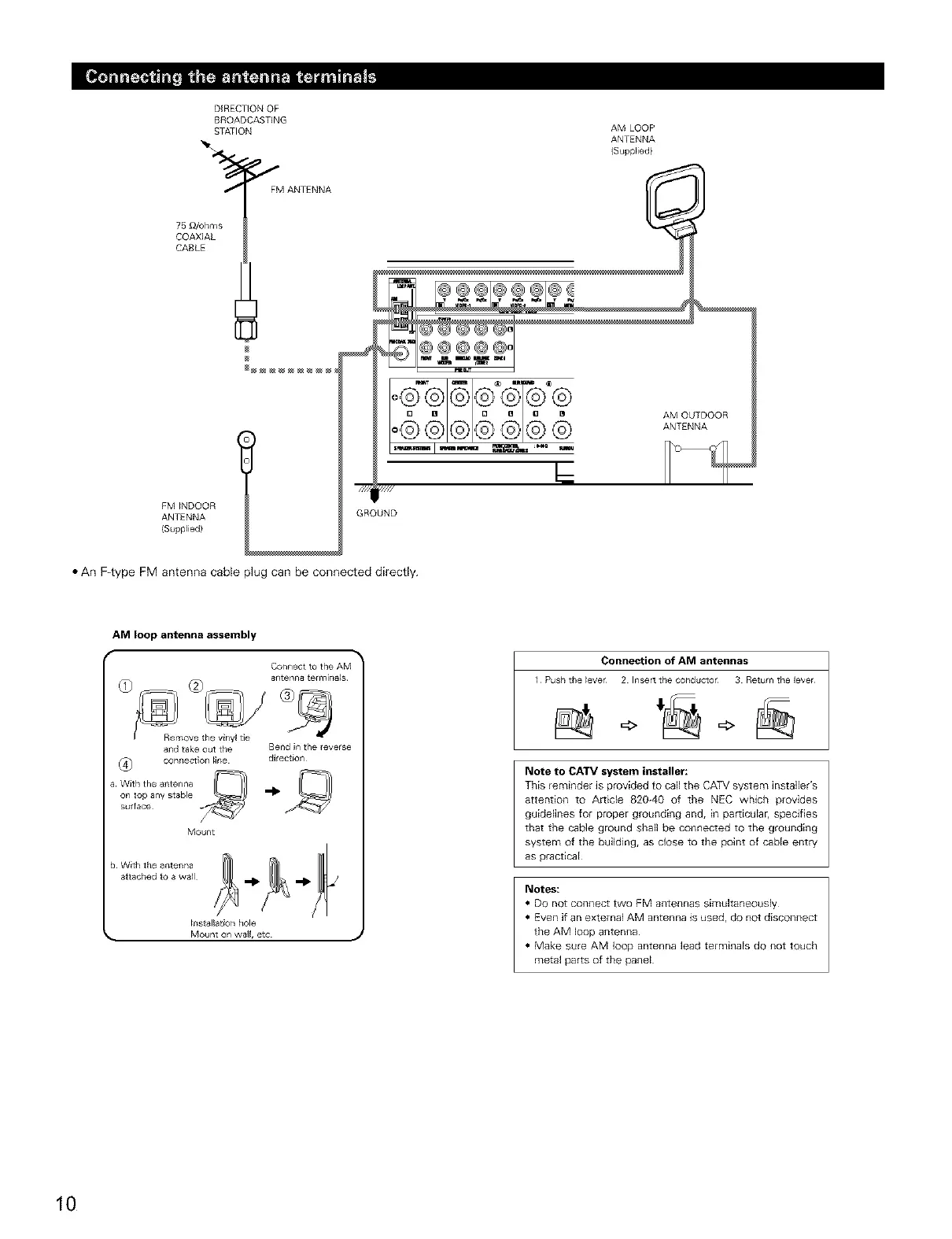

Denon AVR-3803

DIRECTIONOF
BROADCASTING
STATION
J FM ANTENNA
75 _fohms
COAXIAL
CABLE
FM_NDOOR
ANTENNA
{Supplied)
AM LOOP
ANTENNA
{Supplied}
AM OUTDOOR
ANTENNA
"_ Y///
GROUND
• An Ftype FM antenna cable plug can be connected directly.
AM loop antenna assembly
f
Connect to the AM
antenna tetmins_s
and take out the Bend in the reverse
(_ connecl_on _ine direction
s Wig_ the antenna _ _
on to[) any stable "_
surface
Mount
b With the antenna
attached to a wall
Installation hole
Mount on wall, etc •
Connection of AM antennas
Push the _ever 2 Insert the conductor 3 Return the ]ever
=> =>
Note to CATV system installer:
This reminder is provided to call the CATV system installer's
attention to Ar[icle 820-40 of the NEC which provides
guidelines for proper grounding and, in par[icular, specifies
that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry
as piactical
Notes:
• DO not connect two FM antennas simultaneously
• Even if an external AM antenna is used, do not disconnect
the AM loop antenna
• Make sure AM loop antenna lead terminals do not touch
metal parts of the panel
10
