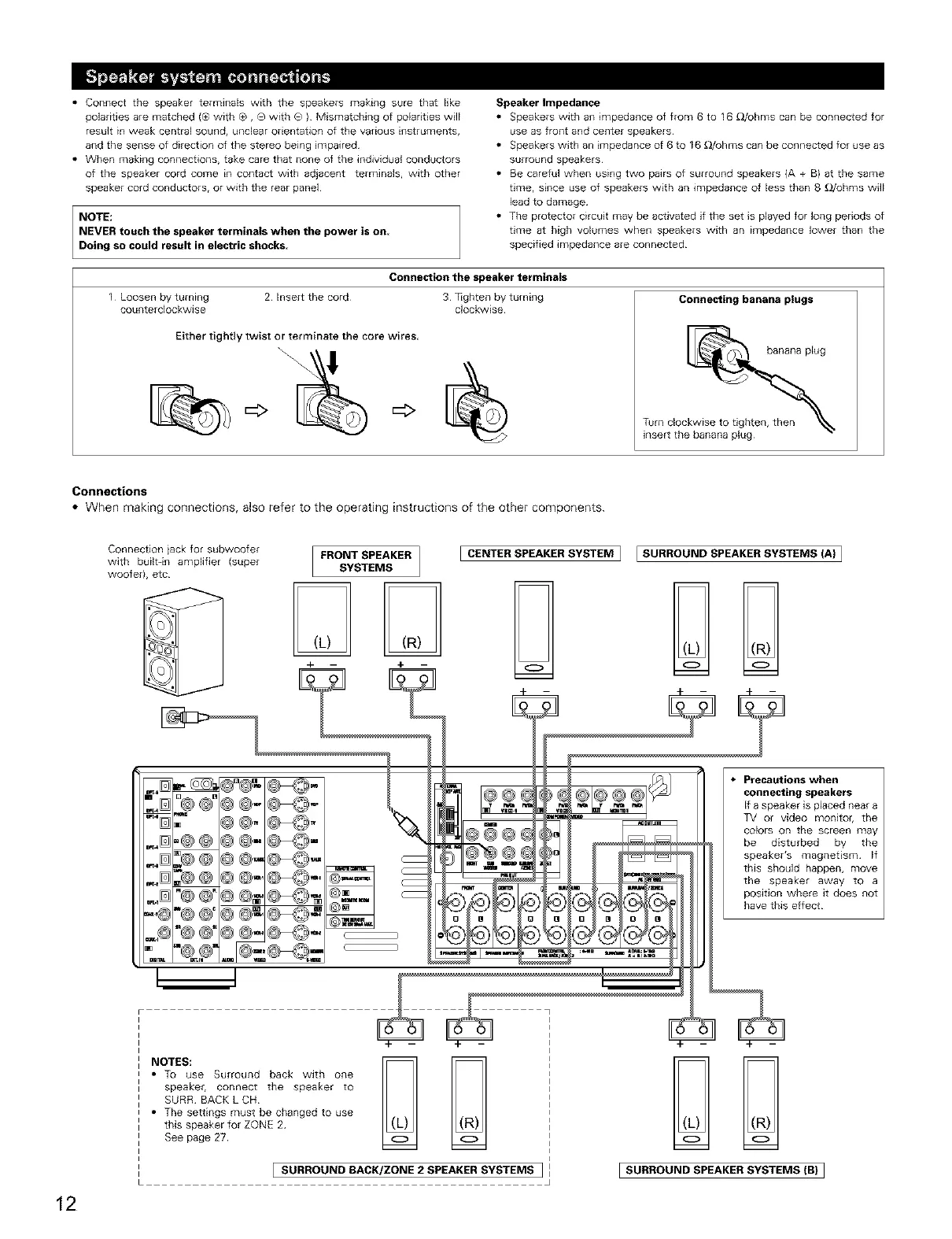

• Connect the speaker terminals with the speakers making sure that like
polarities are matched (® with ®, ® with 0 ) Mismatching of polarities will
result in weak central sound, unclear orientation of the various instruments,
and the sense of direction of the stereo being impaired
• When making connections, take care that none of the individual conductors
of the speaker cord come in contact with adjacent terminals, with other
speaker cord conductors, or with the rear panel
NOTE:
NEVER touch the speaker ter minals when the power is on
Doing so could result in electric shocks
Speaker Impedance
• Speakers with an impedance of from 6 to 16 PJohms can be connected for
use as front and center speakers¸
• Speakers with an impedance of 6 to 16 _)johms can be connected for use as
surround speakers¸
• Be careful when using two pairs of surround speakers (A + B) at the same
time, since use of speakers with an impedance of less than 8 _)johms will
lead to damage¸
• The protector circuit may be activated if the set is played for long periods of
time at high volumes when speakers with an impedance lower than the
specified impedance are connected¸
Connection the speaker terminals
1 Loosen by turning 2 Insert the cord 3 _ghten by turning
counterclockwise clockwise
Either tightly twist or terminate the core wires,
Connecting banana plugs
banana plug
Turn clockwise to tighten, then
insertth_
Connections
• When making connections, also refer to the operating instructions of the other components.
Connection iack for subwoofer
with builtdn amplifier (super
woofer), etc
FRONT SPEAKER [ CENTER SPEAKER SYSTEM ] [ SURROUND SPEAKER SYSTEMS (A) ]
SYSTEMS
D
• Precautions when
connecting speakers
If a speaker is placed near a
TV or video monitor, the
colors on the screen may
be disturbed by the
speaker's magnetism If
this should happen, move
the speaker away to a
position where it does not
have this effect
°: DE
• To use Surround back with one
speaker, connect the speaker to
SURR BACKLCH
• The settings must be changed to use
this speaker for ZONE 2
See page 27
ESURROUND BACK/ZONE 2 SPEAKER SYSTEMS ] I
]D
[ SURROUND SPEAKER SYSTEMS (B} ]
12
