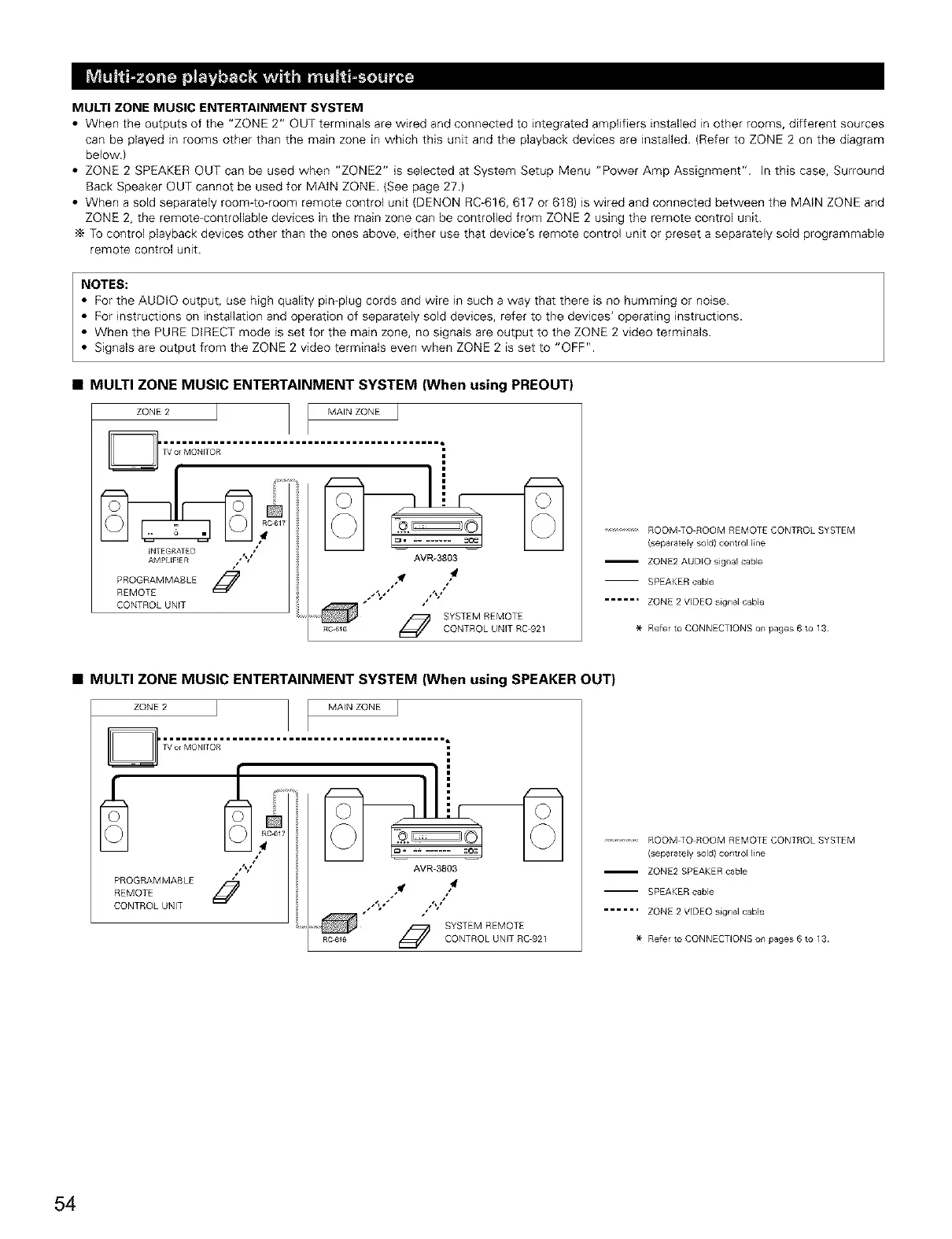

Denon AVR-3803

MULTI ZONE MUSIC ENTERTAINMENT SYSTEM
• When the outputs of the "ZONE 2" OUT terminals are wired and connected to integrated ampfifiers installed in other rooms, different sources
can be played in rooms other than the main zone in which this unit and the playback devices are installed. (Refer to ZONE 2 on the diagram
below.)
• ZONE 2 SPEAKER OUT can be used when "ZONE2" is selected at System Setup Menu "Power Amp Assignment". In this case, Surround
Back Speaker OUT cannot be used for MAiN ZONE. (See page 27.)
• When a sold separately room to-room remote control unit (DENON RC-616, 6t7 or 618) is wired and connected between the MAIN ZONE and
ZONE 2, the remote-controllable devices in the main zone can be controlled from ZONE 2 using the remote control unit.
To control playback devices other than the ones above, either use that device's remote control unit or preset a separately sold programmable
remote control unit.
NOTES:
• For the AUDIO output, use high quality pin-plug cords and wire in such a way that there is no humming or noise.
• For instructions on installation and operation of separately sold devices, refer to the devices' operating instructions.
• When the PURE DIRECT mode is set for the main zone, no signals are output to the ZONE 2 video terminals.
• Signals are output from the ZONE 2 video terminals even when ZONE 2 is set to "OFF'.
• MULTI ZONE MUSIC ENTERTAINMENT SYSTEM (When using PREOUT)
ZONE 2 MA_N ZONE
_'T_" c""_'o_"_'&...................................
" t AVR-3803
AMPLIFIER
PROGRAMMABLE
REMOTE ."_ ", ,'_ •
CONTROL UNiT " '
RC-616
SYSTEM REMOTE
CONTROL UNIT RC 921
...... ROOM_O ROOM REMOTE CONTROL SYSTEM
(separately sold) control line
ZONE2 AU D_Q sigllal came
-- SPEAKER cable
...... ZONE 2 VIDEO signal cable
Refer to CONNECTIONS on pages 6 to 13
• MULTI ZONE MUSIC ENTERTAINMENT SYSTEM (When using SPEAKER OUT)
ZONE 2 MA_N ZONE
'_/_'rtto_i;&.................................... •
,' _ AVR-3803
PROGRAMMABLE I_ 411
REMOTE ,_ /
CONTROL UNIT "'] " •, _,"
RC.616
SYSTEM REMOTE
CONTROL UNIT RC 921
ROOM_ROOM REMOTE CONTROL SYSTEM
(separately sold) control line
ZONE2 SPEAKER cable
-- SPEAKER cable
...... ZONE 2 VIDEO signal cable
Refer to CONNECTIONS on pages 6 to 13
54
