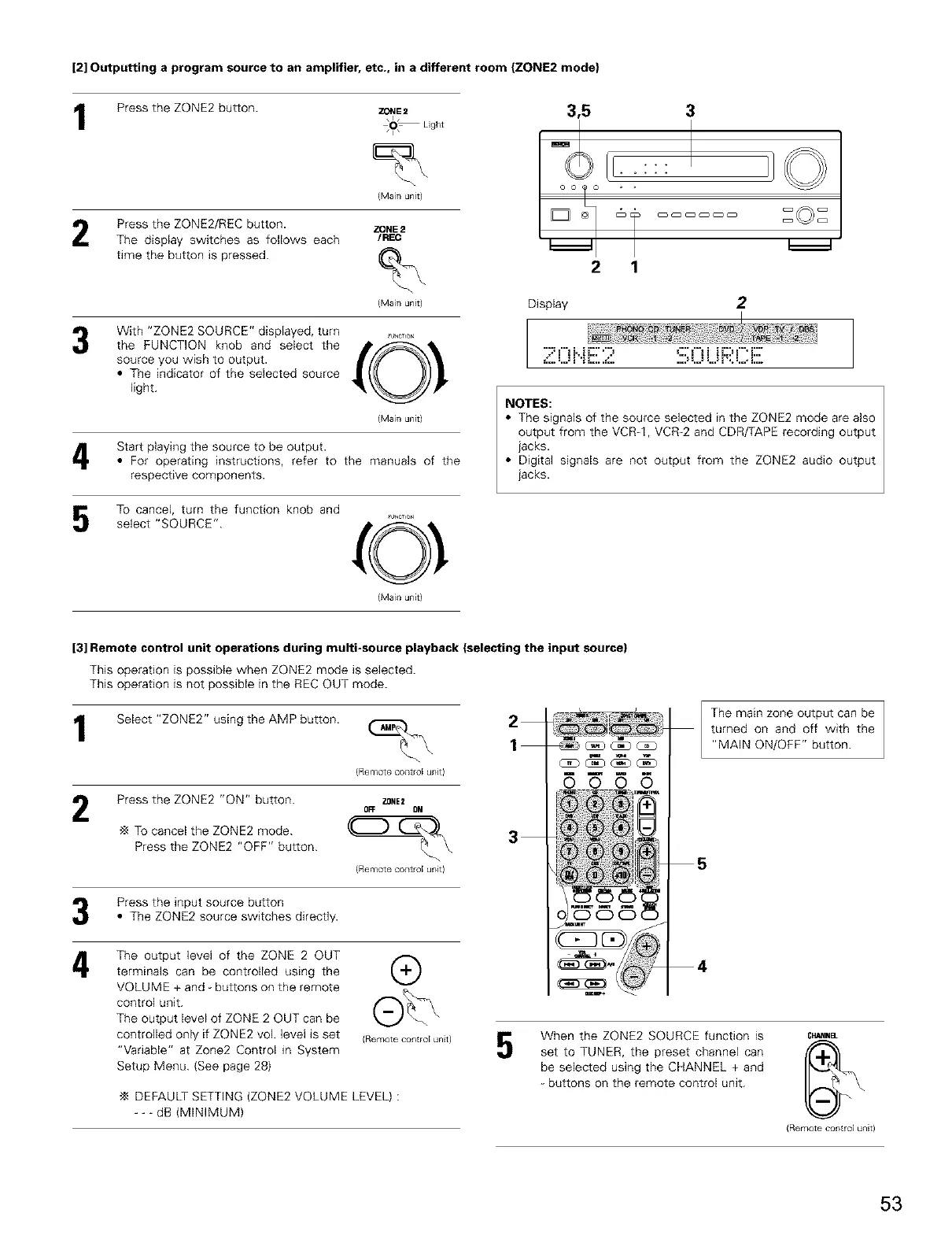

[2] Outputting a program source to an amplifier, etc. in a different room (ZONE2 mode)
1
Press the ZONE2 button.
ZONE2 3,5
_O_ Ught
{Main unit}
Press the ZONE2/REC button.
The display switches as follows each
time the button is pressed.
ZONE 2
/REC
{Malrl unit)
With "ZONE2 SOURCE" displayed, turn
w _lor_
the FUNCTION knob and select the _1_O_
source you wish to output.
• The indicator of the selected source
light.
{Maill unit}
Start playing the source to be output.
• For operating instructions, refer to the manuals of the
respective components.
To cancel, turn the function knob and
select "SOURCE".
(Mai_ unit}
3
1
I
2
Display 2
"=:_='='=i, H'=".'='_ ='="='='=i H'='=='='.i ....
=::..L._i "i E:..=::. .:::=L._L._r_:.L., E:.
NOTES:
• The signals of the source selected in the ZONE2 mode are also
output from the VCR-1, VCR-2 and CDRfFAPE recording output
jacks.
• Digital signals are not output from the ZONE2 audio output
jacks.
[3] Remote control unit operations during multi-source playback (selecting the input source)
This operation is possible when ZONE2 mode is selected.
This operation is not possible in the REC OUT mode.
Select "ZONE2" using the AMP button. (___ 2
1
(Remote colltro_ urlJt)
Press the ZONE2 "ON" button. ZONe2
OFF DN
TO cancel the ZONE2 mode. ,_
Press the ZONE2 "OFF" button.
{Remote contro_ urfit)
Press the input source button
• The ZONE2 source switches directly.
A The output level of the ZONE 2 OUT
terminals can be controlled using the
+tZ)
VOLUME + and buttons on the remote
control unit. @_._.
The output level of ZONE 2 OUT can be
controlled only if ZONE2 voL level is set
"Variable" at Zone2 Control in System
Setup Menu. (See page 28)
{Remote corEro_ unit)
-_ DEFAULT SETTING (ZONE2 VOLUME LEVEL) :
- - - dB (MINIMUM)
J
5 56
The main zone output can be
turned on and off with the
"MAIN ON/OFF" button.
5
4
When the ZONE2 SOURCE function is
set to TUNER, the preset channel can
be selected using the CHANNEL + and
- buttons on the remote control unit.
C_NBL
{Remote control unit)
53
