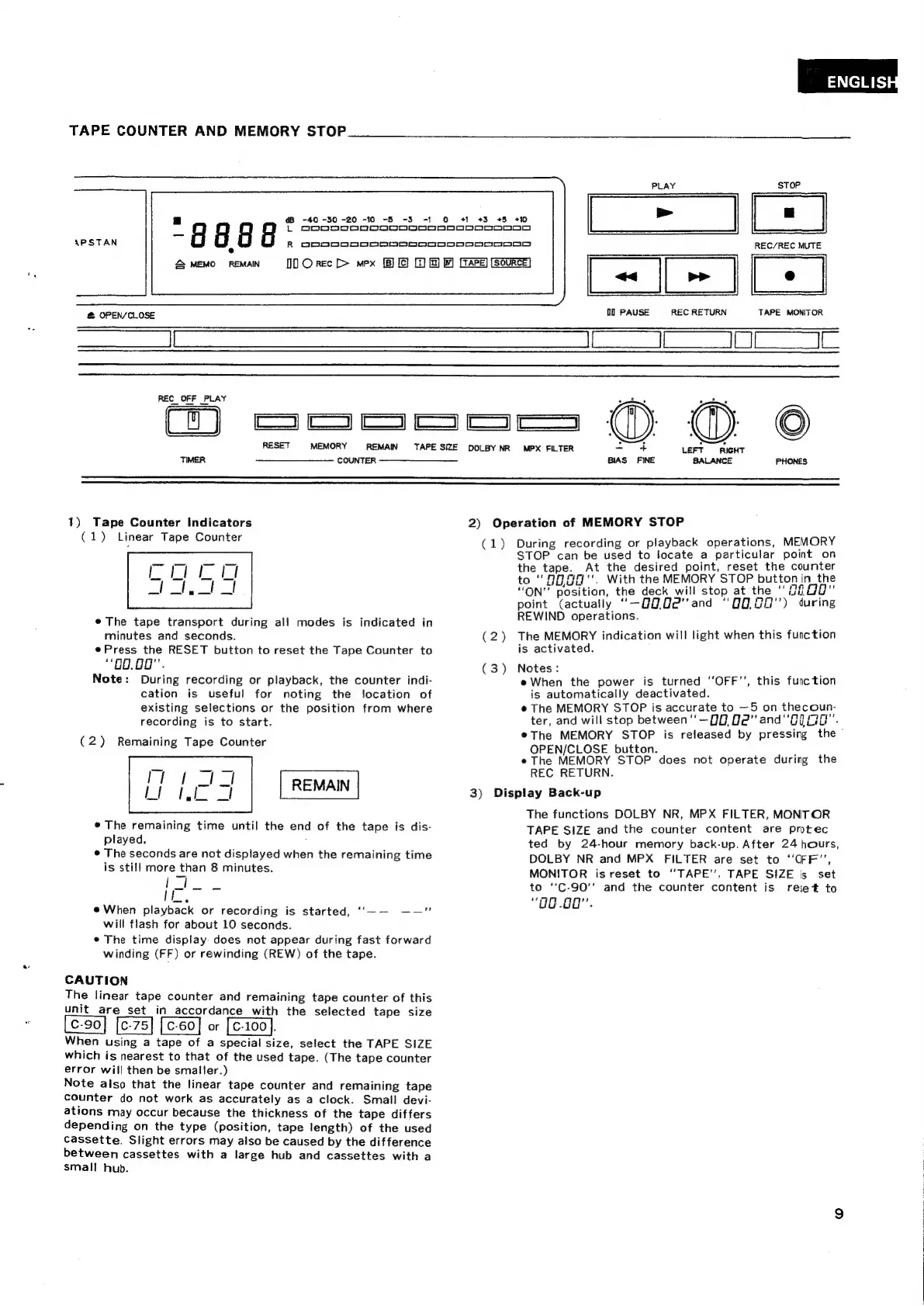

TAPE COUNTER AND MEMORY STOP
ENGLIS
APSTAN
@ OPEN/CLOSE
ee ee
RESET
MEMORY
REMAIN
TAPE
SIZE
DOLBY
NR
MPX
FILTER
REC_OFF PLAY
TIMER neve COUNTER
1) Tape Counter Indicators
(1) Linear Tape Counter
e The tape transport during all modes is indicated in
minutes and seconds.
¢Press the RESET button to reset the Tape Counter to
“90.00”.
Note: During recording or playback, the counter indi-
cation is useful for noting the location of
existing selections or the position from where
recording is to start.
(2) Remaining Tape Counter
¢ The remaining time until the end of the tape is dis-
played.
© The seconds are not displayed when the remaining time
is still more than 8 minutes.
@ When playback or recording is started, ‘‘-— ——”
will flash for about 10 seconds.
e The time display: does not appear during fast forward
winding (FF) or rewinding (REW) of the tape.
CAUTION
The linear tape counter and remaining tape counter of this
unit
are
set
in
accordance
with
the
selected
tape
size
When
using
a
tape
of
a
special
size,
select
the
TAPE
SIZE
which
is
nearest
to
that
of
the
used
tape.
(The
tape
counter
error will then be smaller.)
Note
also
that
the
linear
tape
counter
and
remaining
tape
counter
do
not
work
as
accurately
as
a
clock.
Small
devi-
ations
may
occur
because
the
thickness
of
the
tape
differs
depending
on
the
type
(position,
tape
length)
of
the
used
cassette.
Slight
errors
may
also
be
caused
by
the
difference
between
cassettes
with
a
large
hub
and
cassettes
with
a
small
hub.
g @B -40 -30 -20 -10 -5 -3 -t
8 8 g g L ppomcspoooopesesnsposoooo
e R OMmDDODOOMAMSoooDoOMOnAOoOoOoD
& MEMO REMAIN 00 Orec > mex BE Ow
PLAY STOP
2 Stadiace
REC/REC MUTE
Pl JL |
Of) PAUSE REC RETURN
TAPE MONITOR
LEFT RIGHT
BIAS FINE BALANCE PHONES
2) Operation of MEMORY STOP
(1) During recording or playback operations, MEMORY
STOP can be used to locate a particular point on
the tape. At the desired point, reset the counter
to ‘90,G0"''. With the MEMORY STOP button in_the
“ON’’ position, the deck will stop at the “2400"
point (actually “‘—-Q@.02"’and “QO.2f") during
REWIND operations.
(2) The MEMORY indication will light when this function
is activated.
(3) Notes:
e When the power is turned ‘‘OFF’’, this function
is automatically deactivated.
e The MEMORY STOP is accurate to —5 on thecoun-
ter, and will stop between "‘—Q0 Qe" and"‘Gq ma".
®The MEMORY STOP is released by pressing the
OPEN/CLOSE button. ,
@ The MEMORY STOP does not operate during the
REC RETURN.
3) Display Back-up
The functions DOLBY NR, MPX FILTER, MONTOR
TAPE SIZE and the counter content are protec
ted by 24-hour memory back-up. After 24 hours,
DOLBY NR and MPX FILTER are set to ‘‘OFF”’,
MONITOR is reset to “‘TAPE"’, TAPE SIZE js set
to ‘‘C-90’' and the counter content is reset to
“dG.0a".
