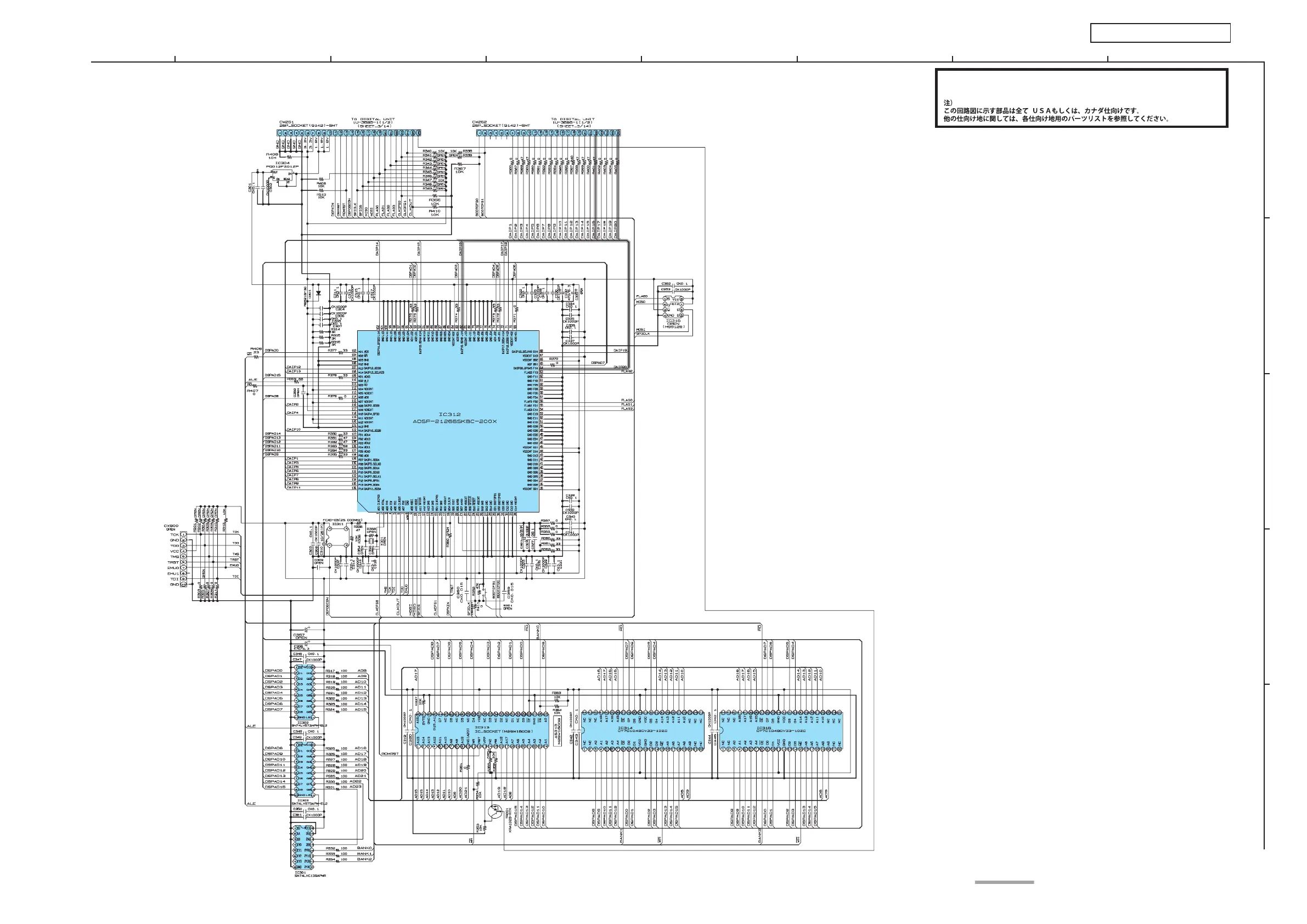

SCHEMATIC DIAGRAMS (4/14) ／ 配線図 (4/15)
AVR-3805 / AVC-3890
SCHEMATIC DIAGRAMS (4/14) ／ 配線図 (4/15)
DSP ADI EX UNIT
CAUTION:
The parts shown in this schematic diagram are all for the U.S.A. or Canada region.
About other regions, please refer to each parts list.
SIGNAL LINE
