Denon AVR-3805 Service Manual

39
39
AVR-3805 / AVC-3890

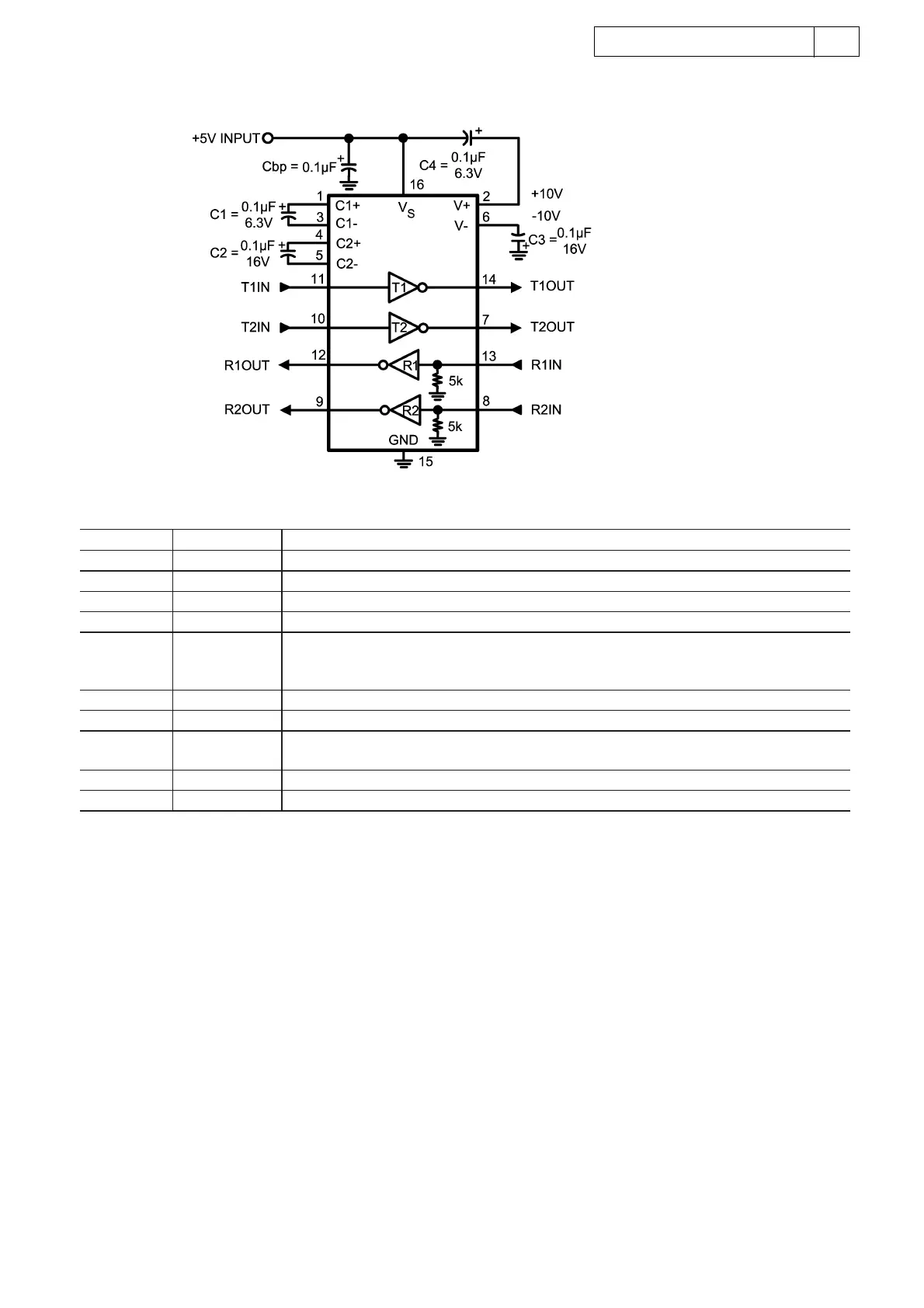

LMS202IMX
LMS202IMX Terminal Function
Pin Number Pin Name Pin Function
1, 3 C1+, C1− External capacitor connection pins. Recommended external capacitor C1 = 0.1µF (6.3V)
2 V+ Positive supply for TIA/EIA-232E drivers. Recommended external capacitor C4 = 0.1µF (6.3V)
4, 5 C2+, C2− External capacitor connection pins. Recommended external capacitor C2 = 0.1µF (16V)
6 V− Negative supply for TIA/EIA-232E drivers. Recommended external capacitor C3 = 0.1µF (16V)
7, 14 T1out, T2out Transmitter output pins conform to TIA/EIA-232E levels. The typical transmitter output swing is
±
8V when loaded 3kΩ load to ground. The open-circuit output voltage swings from (V+ − 0.6V)
to V−
8,13 R1in, R2in Receiver inputs accept TIA/EIA-232
9, 12 R1out and R2out Receiver output pins are TTL/CMOS compatible
10, 11 Tin1, Tin2 Transmitter input pins are TTL/CMOS compatible. Inputs of transmitter do not have pull-up
resistors. Connect all unused transmitter inputs to ground
15 GND Ground pin
16 V
S
Power supply pin for the device, +5V (
±
10%)

Denon AVR-3805 Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Speaker selector	A / B
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.05 %
Power output per channel (1KHz@6 Ohm)	160 W
Power output per channel (20-20KHz@8 Ohm)	120 W
AC input voltage	120 V
AC input frequency	60 Hz
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	56
HDMI in	0
Audio (L/R) in	11
Remote control in	1
Composite video in	7
Digital audio coaxial in	2
Digital audio optical in	5
Component video (YPbPr/YCbCr) in	3
AirPlay	No
Display	-
Product color	Black
Audio decoders	DTS 96/24, DTS Neo:6, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), Dolby Digital EX, Dolby Pro Logic IIx
Apple docking compatibility	Not supported
Speakers connectivity type	RCA

Weight and Dimensions

Depth	429 mm
Width	434 mm
Height	171 mm
Weight	17000 g
