Denon AVR-3806 Service Manual

10
AVR-3806 / AVC-3920

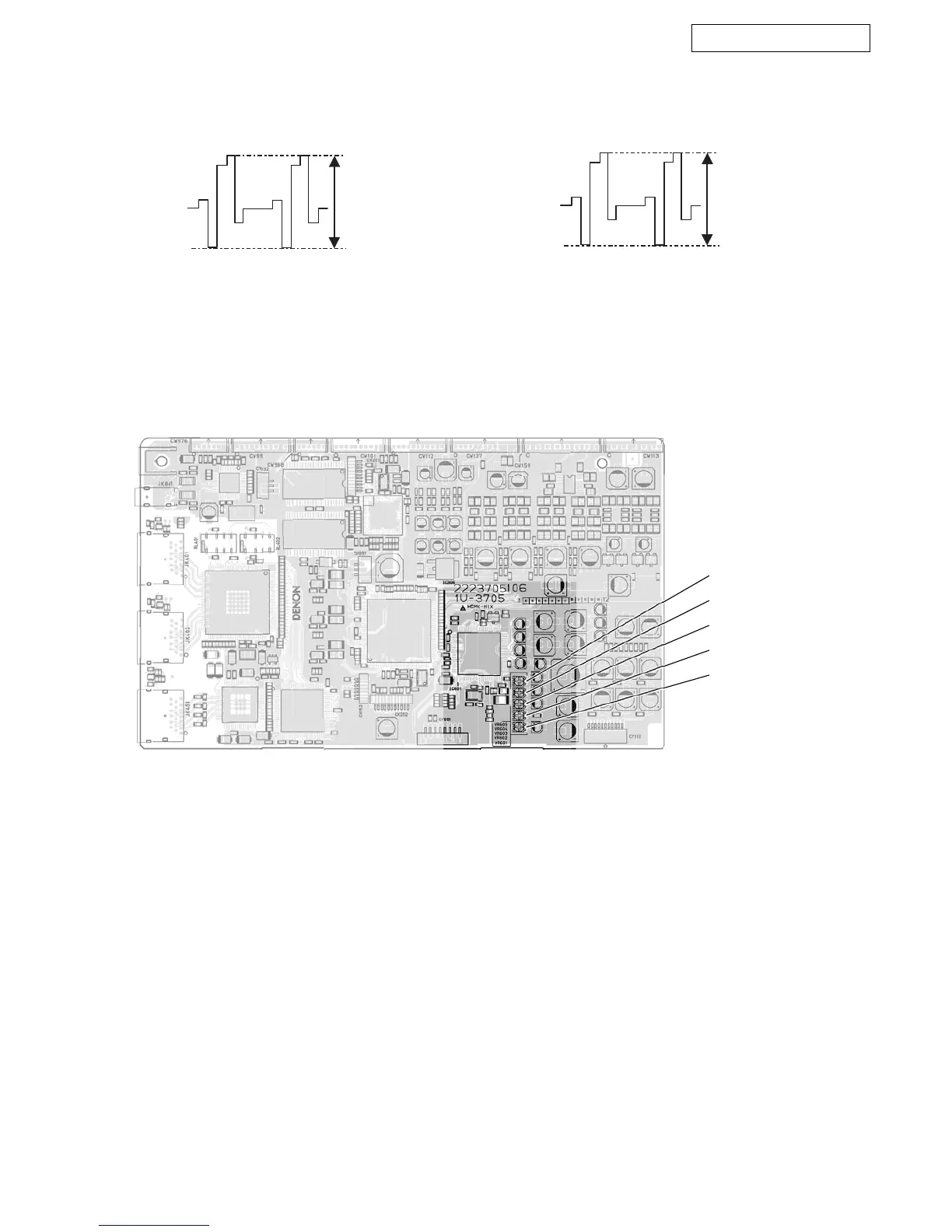

(c) PR/CR 信号レベル
調整個所 ： 1U-3705VR605
調整値 ： 525 ± 10ｍV
波形
PR/CR
COMPONENTOUT の PR/CR 信号レベル
(c) Target, P
R/CR-signal
Point : 1U-3705 VR605
Adjustment Value : *525 ± 10mV
Waveform
* : 486 ± 10mV for U.S.A. & Canada model
1U-3705 DIGITAL UNIT
PR/CR-signal COMPONENT OUT
PR/CR
VR601 S-Y
VR602 S-C
VR603 Y
VR604 P
B/CB
VR605 PR/CR

Denon AVR-3806 Specifications

General

HDMI Inputs	2
HDMI Outputs	1
Component Video Inputs	3
Component Video Outputs	1
Digital Audio Inputs	5 (3 Optical, 2 Coaxial)
THX Certified	No
Dimensions (W x H x D)	434 x 171 x 429 mm
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Total Harmonic Distortion	0.05%
Input Sensitivity/Impedance	200 mV/47 kOhms
Signal-to-Noise Ratio	102 dB
Digital Audio Outputs	1 optical
Surround Sound Formats	Dolby Digital, Dolby Pro Logic IIx, DTS
Video Inputs/Outputs	Composite, S-Video, Component
Analog Audio Inputs	9 stereo pairs
Multi-Room Zones	3
Weight	15 kg
