Denon AVR-3806 Service Manual

4
AVR-3806 / AVC-3920
WIRE ARRANGEMENT
If wire bundles are untied or moved to perform adjustment or
parts replacement etc.,be sure to rearrange them neatly as
they were originally bundled or placed afterward.
Otherwise, incorrect arrangement can be a cause of noise
generation.

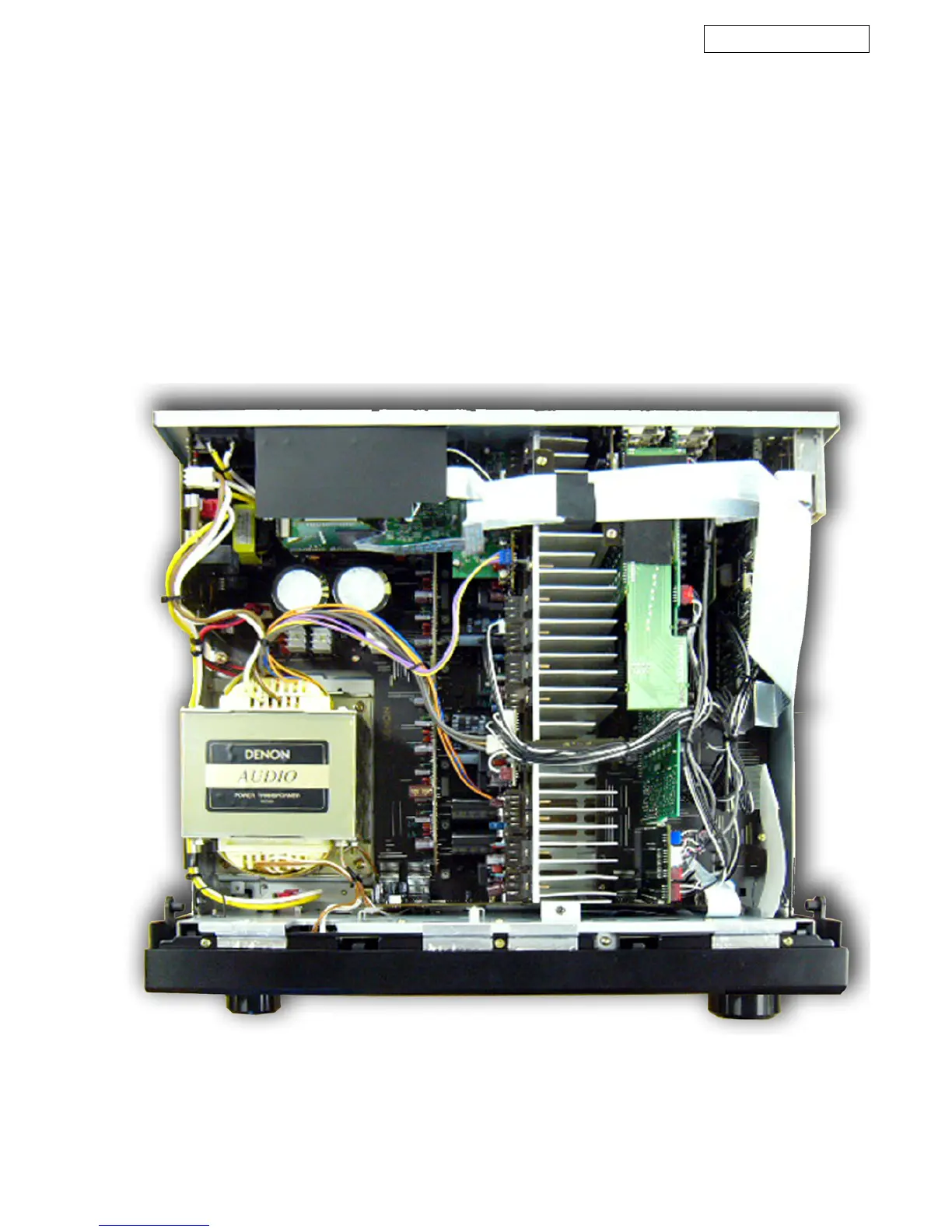

Wire arrangement viewed from the top
ワイヤー整形図
調整や部品の交換等により、ワイヤー類の結束をはずしたり
移動させた場合には、それらの作業が完了した時点でワイ
ヤーの整形をおこなってください。正しく整形されていない
とノイズ発生の原因となることがあります。
上面からみたワイヤー整形
Front Panel side
Back Panel side

Denon AVR-3806 Specifications

General

HDMI Inputs	2
HDMI Outputs	1
Component Video Inputs	3
Component Video Outputs	1
Digital Audio Inputs	5 (3 Optical, 2 Coaxial)
THX Certified	No
Dimensions (W x H x D)	434 x 171 x 429 mm
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Total Harmonic Distortion	0.05%
Input Sensitivity/Impedance	200 mV/47 kOhms
Signal-to-Noise Ratio	102 dB
Digital Audio Outputs	1 optical
Surround Sound Formats	Dolby Digital, Dolby Pro Logic IIx, DTS
Video Inputs/Outputs	Composite, S-Video, Component
Analog Audio Inputs	9 stereo pairs
Multi-Room Zones	3
Weight	15 kg
