8. PCB ASSY POWER

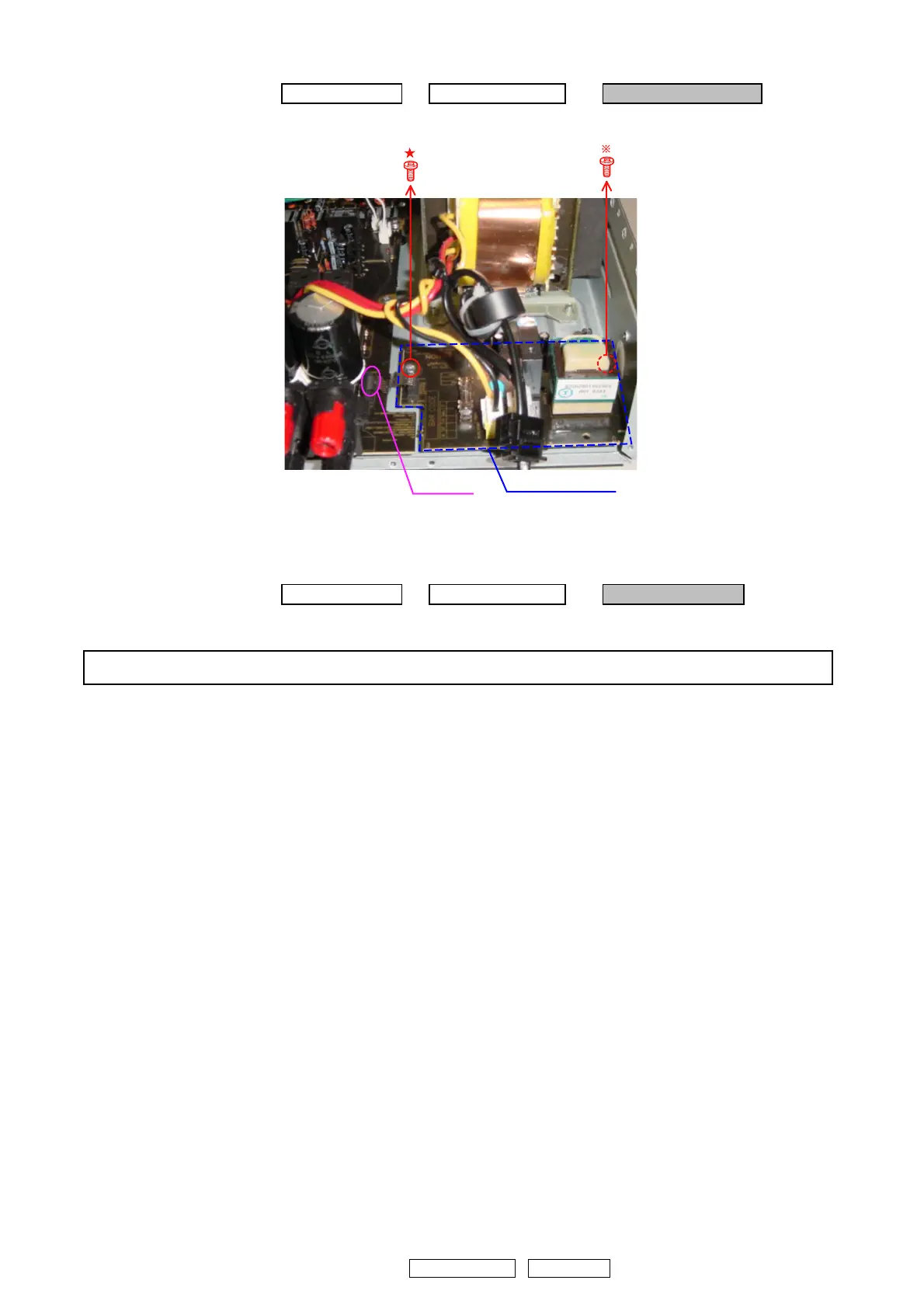

(1) Disconnect the connector wires and remove the screws.
9. PCB ASSY MAIN
Please refer to "EXPLODED VIEW" for the disassembly method of PCB ASSY MAIN.
Proceeding : CABINET TOP → CHASSIS BACK → PCB ASSY POWER
Top view
CP103
POWER Board
Proceeding : CABINET TOP → CHASSIS BACK → PCB ASSY MAIN
