Denon AVR-390 Service Manual

8
DHT-390XP
AVR-390

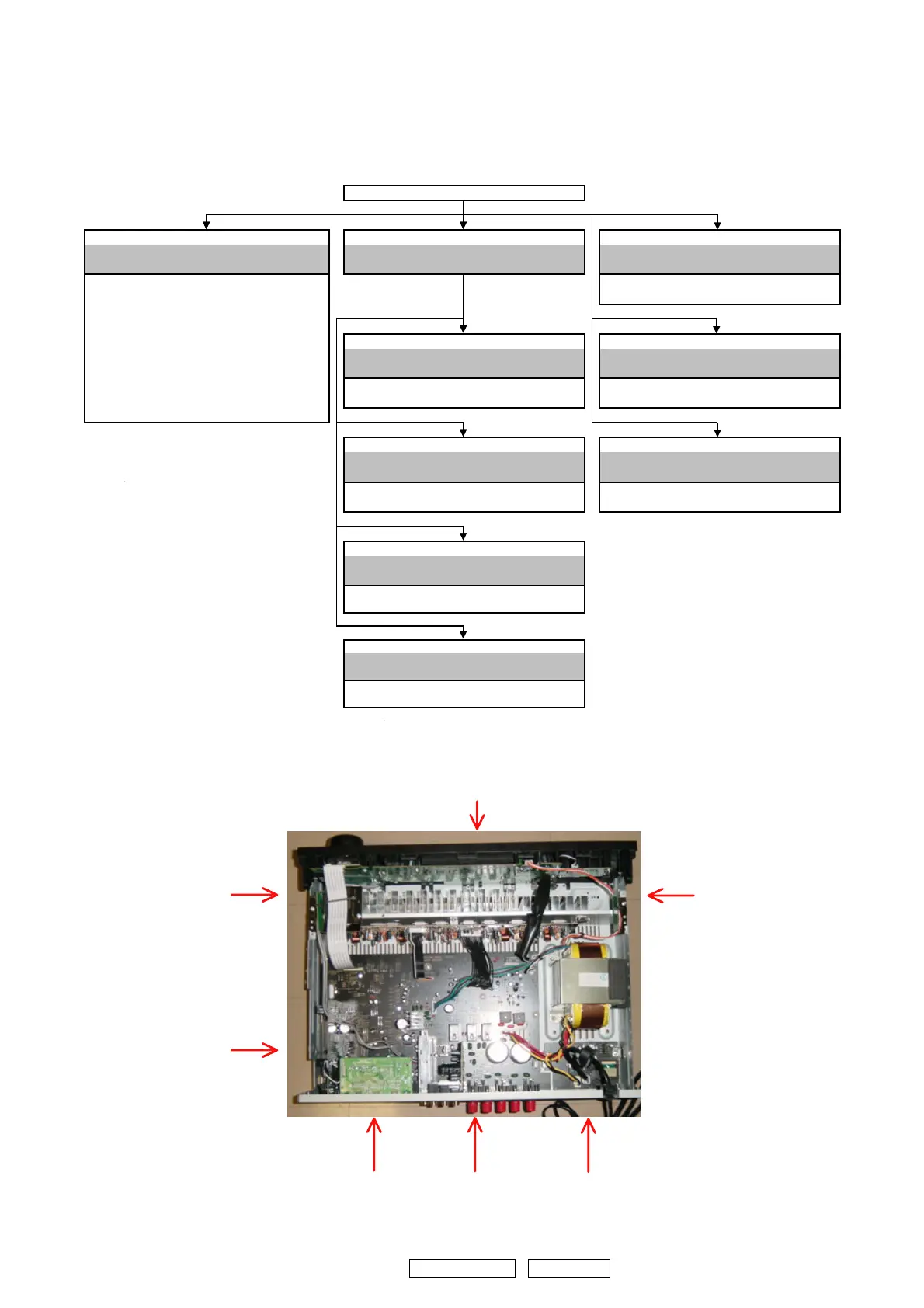

DISASSEMBLY
• Disassemble in order of the arrow of the figure of following flow.
• In the case of the re-assembling, assemble it in order of the reverse of the following flow.
• In the case of the re-assembling, observe "attention of assembling" it.
CABINET TOP
PANEL FRONT ASS
Y
CHASSIS BAC
K
HEATSINK MAIN ASS
Y
Refer to "DISASSEMBLY 1.PANEL FRONT ASSY" Refer to "DISASSEMBLY 5.CHASSIS BACK" Refer to "DISASSEMBLY 2.HEATSINK
and "EXPLODED VIEW" and "EXPLODED VIEW" MAIN ASSY" and "EXPLODED VIEW"
PCB ASSY ST-BY PCB ASSY AMP
(Ref. No. of EXPLODED VIEW : 11) (Ref. No. of EXPLODED VIEW : 20)
PCB ASSY TACT-SW
(Ref. No. of EXPLODED VIEW : 12)
PCB ASSY FRONT
PCB ASSY DS
P
PCB ASSY HDMI
(Ref. No. of EXPLODED VIEW : 13) Refer to "DISASSEMBLY 6.PCB ASSY DSP" Refer to "DISASSEMBLY 3.PCB ASSY HDMI"
PCB ASSY H/P and "EXPLODED VIEW" and "EXPLODED VIEW"
(Ref. No. of EXPLODED VIEW : 14) PCB ASSY DSP PCB ASSY HDMI
PCB ASSY ENCORDER (Ref. No. of EXPLODED VIEW : 32) (Ref. No. of EXPLODED VIEW : 33)
(Ref. No. of EXPLODED VIEW : 17)
PCB ASSY VIDE
O
POWER TRANS
Refer to "DISASSEMBLY 7.PCB ASSY VIDEO" Refer to "DISASSEMBLY 4.POWER TRANS"
and "EXPLODED VIEW" and "EXPLODED VIEW"
PCB ASSY VIDEO POWER TRANS
(Ref. No. of EXPLODED VIEW : 31) (Ref. No. of EXPLODED VIEW : 28)
PCB ASSY POWE
R
Refer to "DISASSEMBLY 8.PCB ASSY POWER"
and "EXPLODED VIEW"
PCB ASSY POWER
(Ref. No. of EXPLODED VIEW : 29)
PCB ASSY MAIN
Refer to "DISASSEMBLY 9.PCB ASSY MAIN"
and "EXPLODED VIEW"
PCB ASSY MAIN
(Ref. No. of EXPLODED VIEW : 30)
Picture A
Picture F
Picture G
Picture B
( Bottom view )
Picture C
The viewpoint of each photograph
(photography direction)
[ Top view ]
Picture D
Picture E
