Denon AVR-5700 - Part Names and Functions

14
6
PART NAMES AND FUNCTIONS

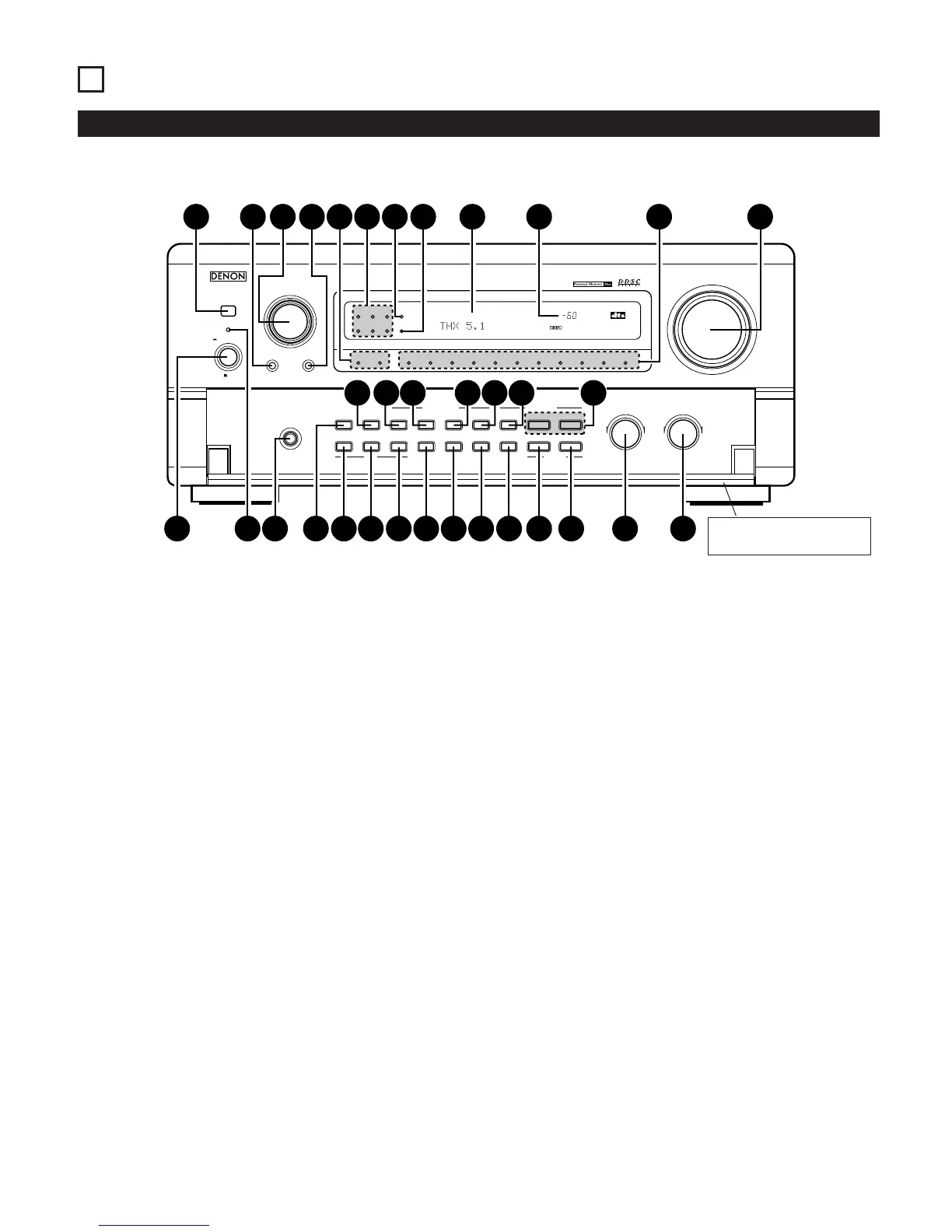

Front Panel
• For details on the functions of these parts, refer to the pages given in parentheses ( ).
DSP
SIMULATION
MASTER VOLUME
REMOTE SENSOR
ON / STANDBY
ON / STANDBY
OFF
INPUT SELECTOR
TAPE-2 MON
HOME
THX CINEMA
VOLUME LEVEL
PHONES
BASS
TREBLE
DIRECT
INPUT MODE
STEREO
ANALOG
DOLBY / DTS
SURROUND
WIDE
SCREEN
5CH
STEREO
SURROUND MODE
TUNING PRESET
SHIFT
6CH / 8CH
EXT. IN
VIDEO
SELECT
TONE
DEFEAT
DIMMER
PANEL
MODE
SOURCE
INPUT
REC / MULTI
DOWN UP
TUNER DVD VDP TV / DBS VCR-1 VCR-2 V. AUX MD / TAPE-1 TAPE-2 MONPHONO CD
L
C
R
SL
S
SR
CH INDICATOR
LOCK
LFE
SURROUND SPEAKER
BA
14
15 16 17 18 19 20
123
4
5678910111213 21 22
34
33 32
31
30 29
28 27 26 25 24 23
Q
Power switch ………………………………………………………(36)
W
Power indicator ……………………………………………………(36)
E Headphones jack (PHONES) ……………………………………(39)
R DIRECT button ……………………………………………………(49)
T INPUT MODE selector button ……………………………………(37)
Y ANALOG button……………………………………………………(37)
U 6CH/8CH external input button
(6CH/8CH EXT. IN)…………………………………………………(41)
I
VIDEO SELECT button ……………………………………………(39)
O
TONE DEFEAT button ……………………………………………(39)
P
PANEL button………………………………………………………(39)
{ DIMMER button……………………………………………………(39)
}
REC/MULTI MODE selector button ……………………………(40)
q
REC/MULTI SOURCE selector button …………………………(40)
w
STEREO button ……………………………………………………(38)
e
DOLBY/DTS SURROUND button ……………………………(44, 45)
r
WIDE SCREEN button ……………………………………………(49)
t
5CH STEREO button ………………………………………………(49)
y
DSP SIMULATION button ………………………………………(49)
u
SHIFT button …………………………………………………(53, 54)
i
PRESET UP/DOWN button …………………………………(53, 54)
o
BASS adjustment control …………………………………………(39)
p
TREBLE adjustment control………………………………………(39)
[
MASTER VOLUME control ………………………………………(38)
]
Input source indicators
A
Master volume indicator (VOLUME LEVEL) ………………………(38)
S
Display
D
Low frequency effect indicator (LFE) ……………………………(46)
F
Digital lock indicator (LOCK)………………………………………(38)
G
Dolby digital/DTS surround input channel indicators
[CH INDICATOR] …………………………………………………(45)
H
Surround speaker system indicators
(SURROUND SPEAKER A/B)
J
Tape 2 monitor button (TAPE-2 MON) …………………………(37)
K
Input source selector dial (INPUT SELECT) ……………………(37)
L
HOME THX CINEMA button ……………………………………(47)
: Remote control sensor (REMOTE SENSOR) …………………(28)
Lightly press on the bottom
of the door to open it.
