Getting Started Setup Playback Remote Control Multi-Zone Information Troubleshooting
ENGLISH
Specifications
47*%&0
065
"6%*0 7*%&0
$0.10/&/57*%&0
: 1# 13
7*%&0
065065
"6%*0
3-
065 065
)%.*
015*$"-
065
R
L
R
L

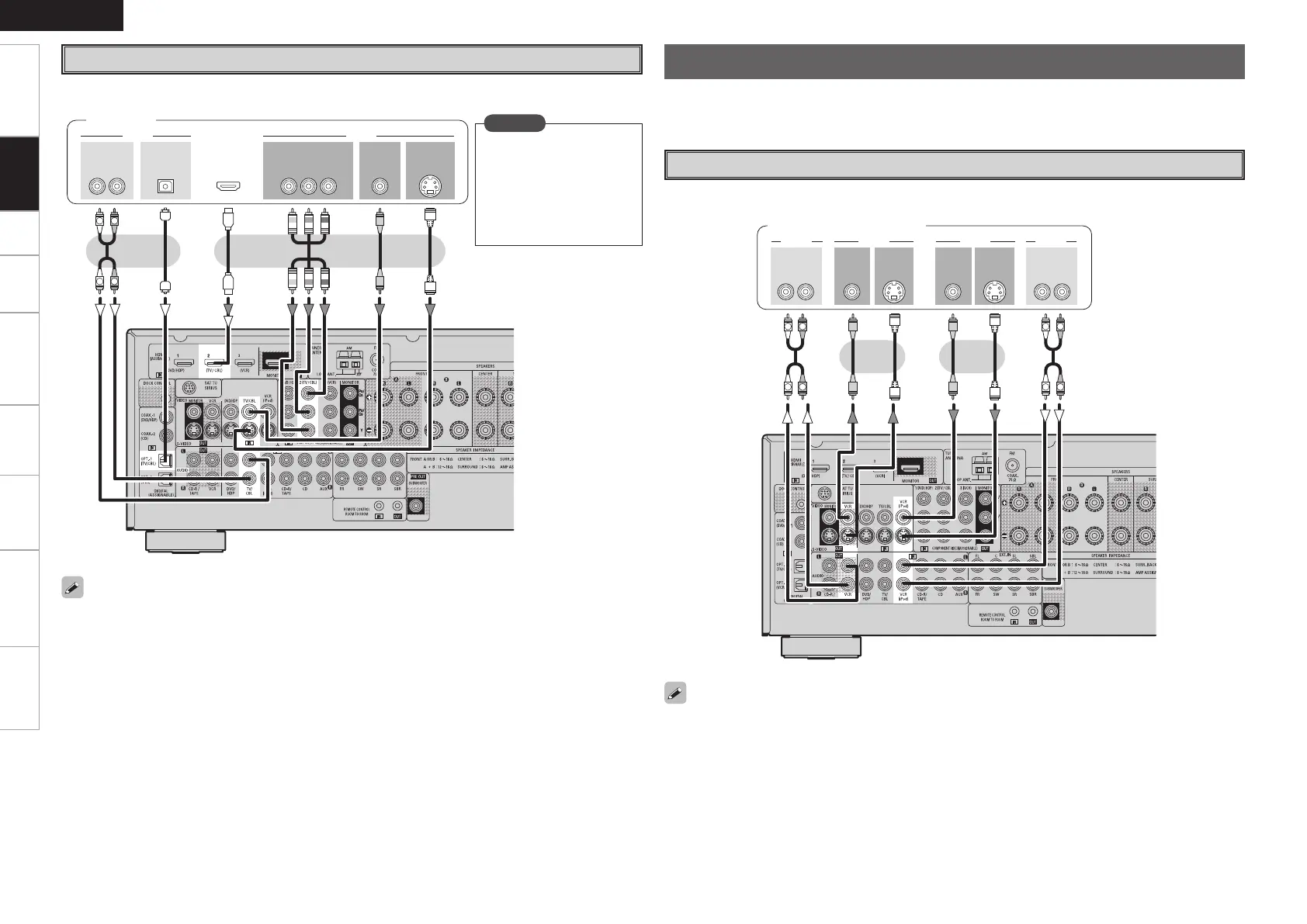

TV/CABLE Tuner
Select the terminal to use and connect the device.
TV tuner
When using a optical cable for the digital audio connection, make the settings at “System Setup” – “Input
Setup” – “Digital In Assign” (vpage 26).
Carefully check the left (L) and right (R) channels and the inputs and outputs, and be sure to interconnect
correctly.
Video Cassette Recorder
Select the terminal to use and connect the device.
• When recording via the AVR-689, the playback device’s cable must be of the same type as the cable used
to connect the AVR-689’s VCR OUT connector.
Example: TV IN → S-Video cable : VCR OUT → S-Video cable
TV IN → Video cable : VCR OUT → Video cable
• When using a component video cable for the video connection, make the settings at “System Setup” –
“Input Setup” – “Component In Assign” (vpage 26).
Connections
Connecting the Recording Components
NOTE
The audio signal input to
the HDMI input connector
cannot be played on the
AVR-689. Input the audio
signal to the digital audio
input connector or analog
audio input connector.
47*%&047*%&0
065
3-3-
065065*/
"6%*07*%&0"6%*0 7*%&0
*/
"6%*0"6%*0 7*%&0 7*%&0
*/
R
L
R
L
R
L
R
L
Video cassette recorder
To Next Page
