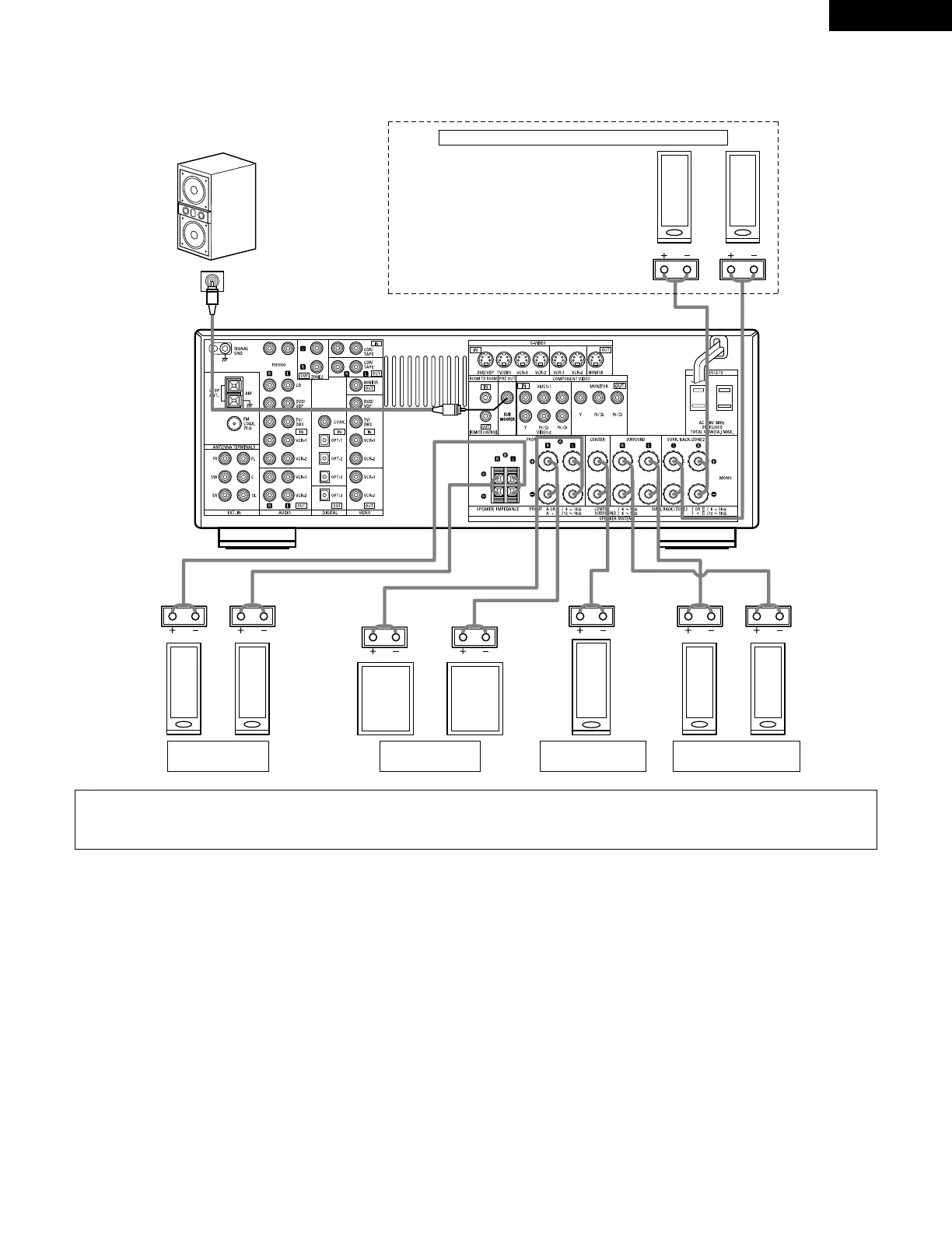

Connections
• When making connections, also refer to the operating instructions of the other components.
Connection jack for subwoofer with
built-in amplifier (super woofer), etc.
CENTER SPEAKER
SYSTEM
SURROUND BACK/MULTI ZONE SPEAKER SYSTEMS
SURROUND SPEAKER
SYSTEMS
• Precautions when connecting speakers
If a speaker is placed near a TV or video monitor, the colors on the screen may be disturbed by the speaker’s magnetism. If this should
happen, move the speaker away to a position where it does not have this effect.
NOTES:
• To use Surround back with one speaker,
connect the speaker to SURR. BACK (I).
• The settings must be changed to use this
speaker for ZONE2. (See page 28)
• The same signal is output simultaneously
to the SURR.BACK/ZONE2 I and II
terminals.
FRONT SPEAKER
(B) SYSTEMS
FRONT SPEAKER
(A) SYSTEMS
