ENGLISH
Multi-ZoneSettings
q w e r t y
i uQ1Q2Q5Q6
o
Q0
Q3
Q4
Part Names and Functions

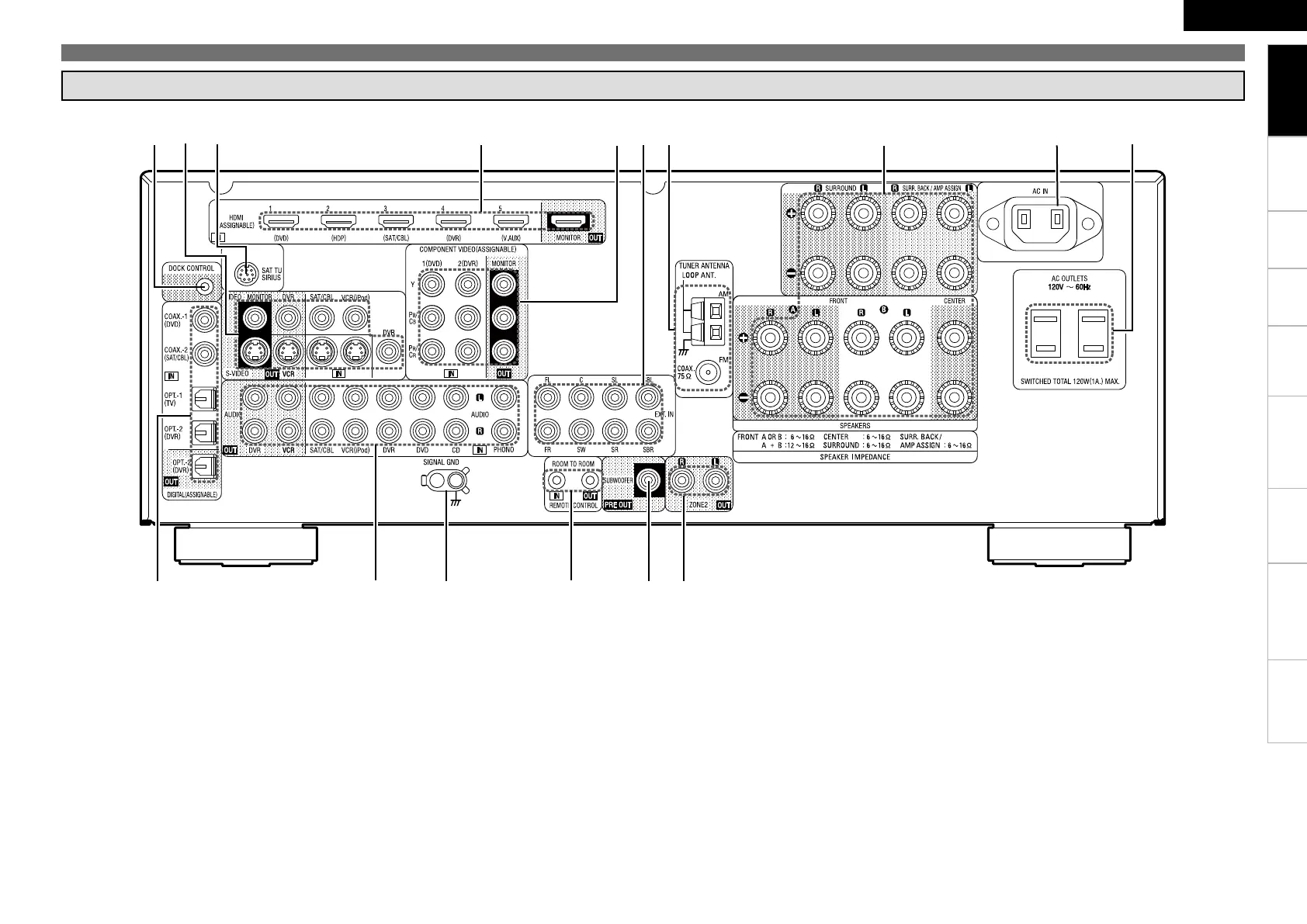

Rear Panel
q Digital audio connectors ···························(15)
w Analog audio connectors ··························(14)
e SIGNAL GND terminal ······························(15)
r REMOTE CONTROL jacks ·························(18)
t PRE OUT connector ···································(11)
y ZONE2 connectors ····································(54)
u AC OUTLETS ··············································(18)
i AC inlet (AC IN) ··········································(18)
o Speaker terminals ·····································(11)
Q0 FM/AM antenna terminals ·······················(17)
Q1 EXT. IN connectors ····································(16)
Q2 COMPONENT VIDEO connectors ·············(14)
Q3 HDMI connectors ·······································(13)
Q4 SIRIUS connector ······································(17)
Q5 VIDEO/S-VIDEO connectors ·····················(15)
Q6 Control dock for iPod
DOCK CONTROL jack ································(14)
