CD Recorder / MD Recorder / Tape Deck

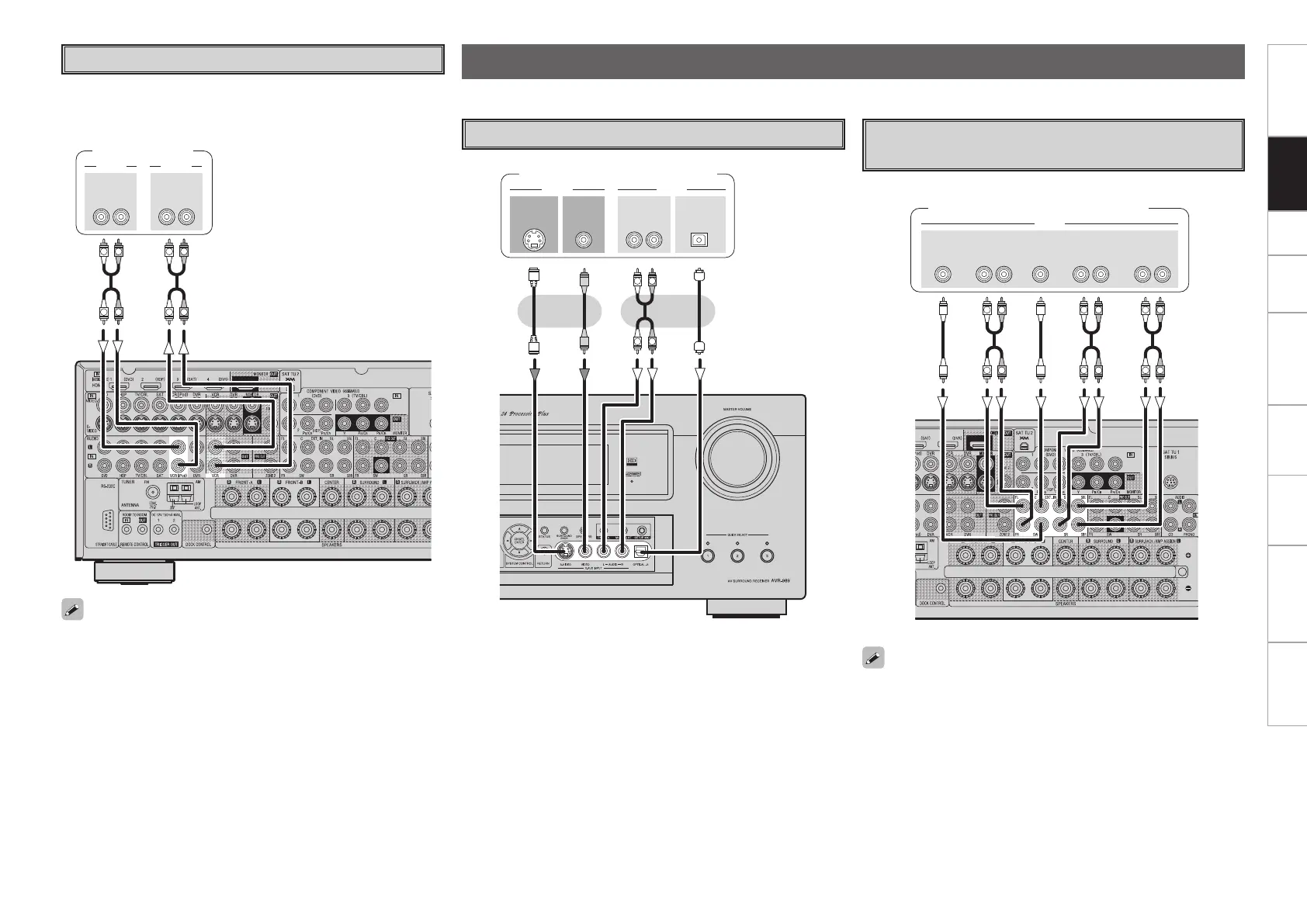

Select the terminal to use and connect the device.
Video Camera / Game Console
Video camera / Game console
Carefully check the left (L) and right (R) channels and the inputs and outputs, and be sure to interconnect correctly.
Connections to Other Devices
3-3-
*/065
"6%*0"6%*0
"6%*0 "6%*0
R
L
R
L
R
L
R
L
Component with Multi-channel Output
Connectors
Blu-ray Disc player / DVD player /
External decoder
To play the analog input signals input to the EXT. IN connectors,
press the INPUT MODE button on the main unit or INPUT button on
the remote control unit and select “EXT. IN” or make the settings at
menu “Input Setup” “Input Mode” “Input Mode” “EXT. IN”
(vpage 37).
The video signal can be connected in the same way as a Blu-ray Disc
player / DVD player (vpage 12).
CD recorder /
MD recorder /
Tape deck
Connections
Make analog connections if you wish to record analog audio signals,
or digital connections if you wish to record digital audio signals,
depending on the types of connectors on the components being
used.
When recording via the AVR-989, the playback device´s cable must
be of the same type as the cable used to connect the AVR-989´s VCR
OUT connector.
Example: CD IN Analog cable : VCR OUT Analog cable
