When the results of check item (18) are "the communication results are OK"
Checking operation between the HDMI (HDMI SW) device and the player
b
In order to check, connect the player to the HDMI terminal and congure the player as AVR source.
Check the sound output while turning on the player.
HDMI IN 1-3

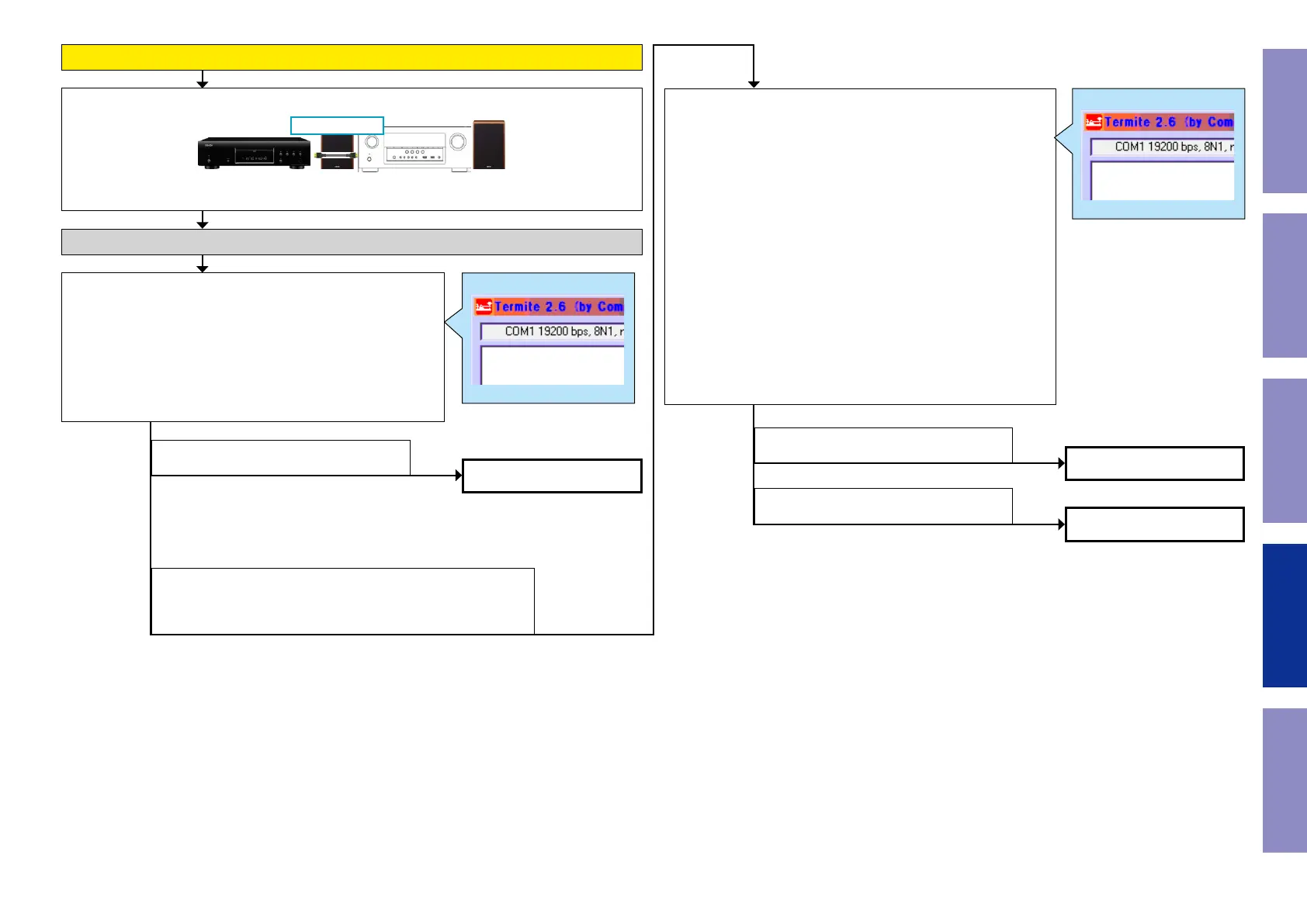

Checking the +5V/DDC status register (HDMI SW)
Check item(21). Checking the +5V status register :
Send the following command from Termite.exe.
Send the transmission command "i 002E 00FF 0001" from Termite.
exe.
Move to the branch destination according to the value returned.
Example
i 002E 0040 0001
HDMI In1/In2/In3 "00"
(Detection of 5V is not OK.)
"00 or 04"
(Detection of DDC is not OK.)
"22"
(Detection of DDC is OK)
HDMI In1 "44 or 40" HDMI In2 "22 or 20" HDMI In3 "11 or 10"
(Detection of 5V is OK)
Go to check item (23)
Go to check item (24)
Go to check item (25)
Check item(22). Checking the +5V/DDC status register :
Send the following command from Termite.exe.
When the HDMI IN1, Send the transmission command "i 002B 0084
0001" from Termite.exe.
When the HDMI IN2, Send the transmission command "i 002B 0054
0001" from Termite.exe.
When the HDMI IN3, Send the transmission command "i 002B 0054
0001" from Termite.exe.
Move to the branch destination according to the value returned.
Example
i 002B 0084 0001
82
