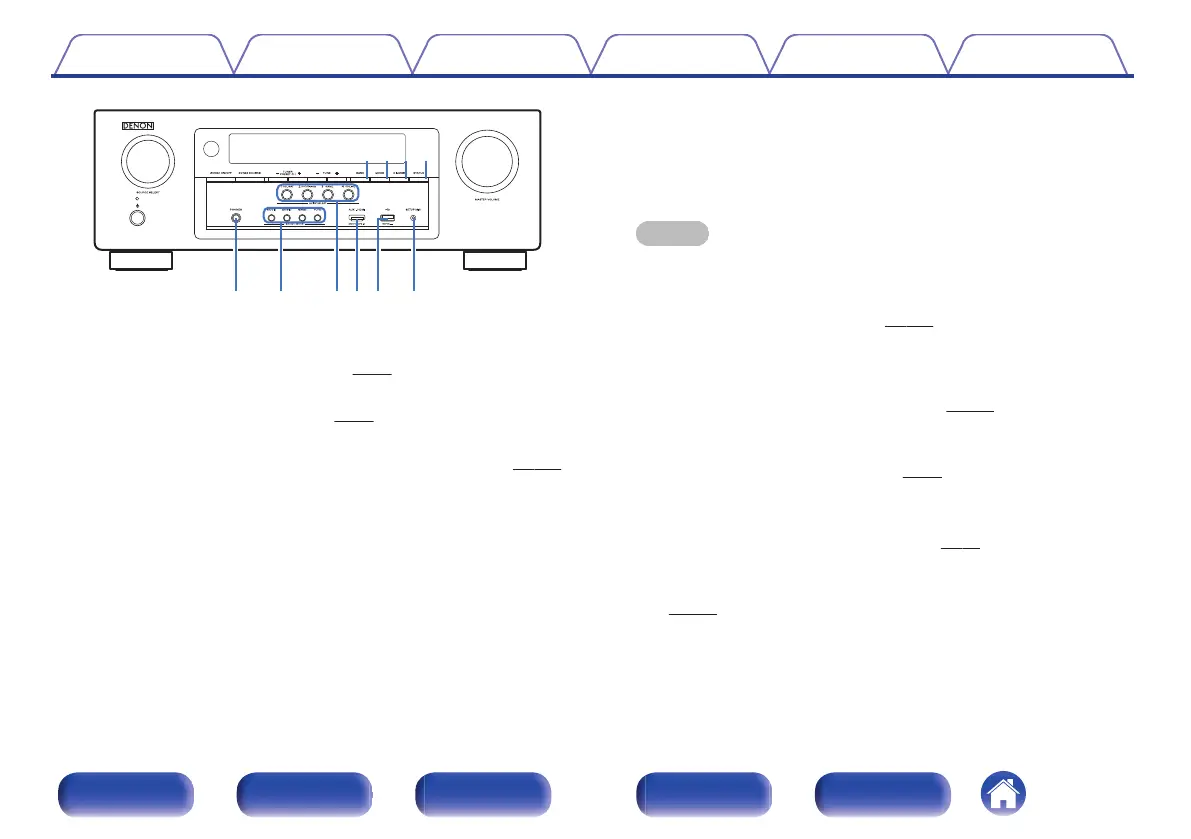

K
Reception band select button (BAND)
This switches the reception band. (v
p. 77)
L
Tune mode select button (MODE)
This switches the tuning mode. (v p. 79)
M
DIMMER button
Each press of this switches the brightness of the display. (v
p. 200)
N
STATUS button
Each press of this switches the status information that is shown on the
display.
O
Headphones jack (PHONES)
This is used to connect headphones.
When the headphones are plugged into this jack, audio will no longer
be output from the connected speakers or from the SUBWOOFER
connectors.
NOTE
0
To prevent hearing loss, do not raise the volume level excessively when using
headphones.
P
SOUND MODE buttons
These select the sound mode. (v
p. 116)
Q
QUICK SELECT buttons
With a single press of any of these buttons, you can call up various
settings you’ve registered to each button such as the input source,
volume level and sound mode settings. (v
p. 132)
R
AUX-HDMI connector
This is used to connect HDMI output compatible devices such as video
camcorders and game consoles. (v
p. 52)
S
USB port (T)
This is used to connect USB storages (such as USB memory devices)
and the USB cable supplied with iPod. (v p. 53)
T
SETUP MIC jack
This is used to connect the supplied Sound calibration microphone.
(v
p. 170)
Contents
Connections Playback Settings Tips Appendix
15
Front panel Display Rear panel Remote Index
