FRONT FRONT
CENTER SURROUND
SURROUND BACK SURROUND BACK
SURROUND
F

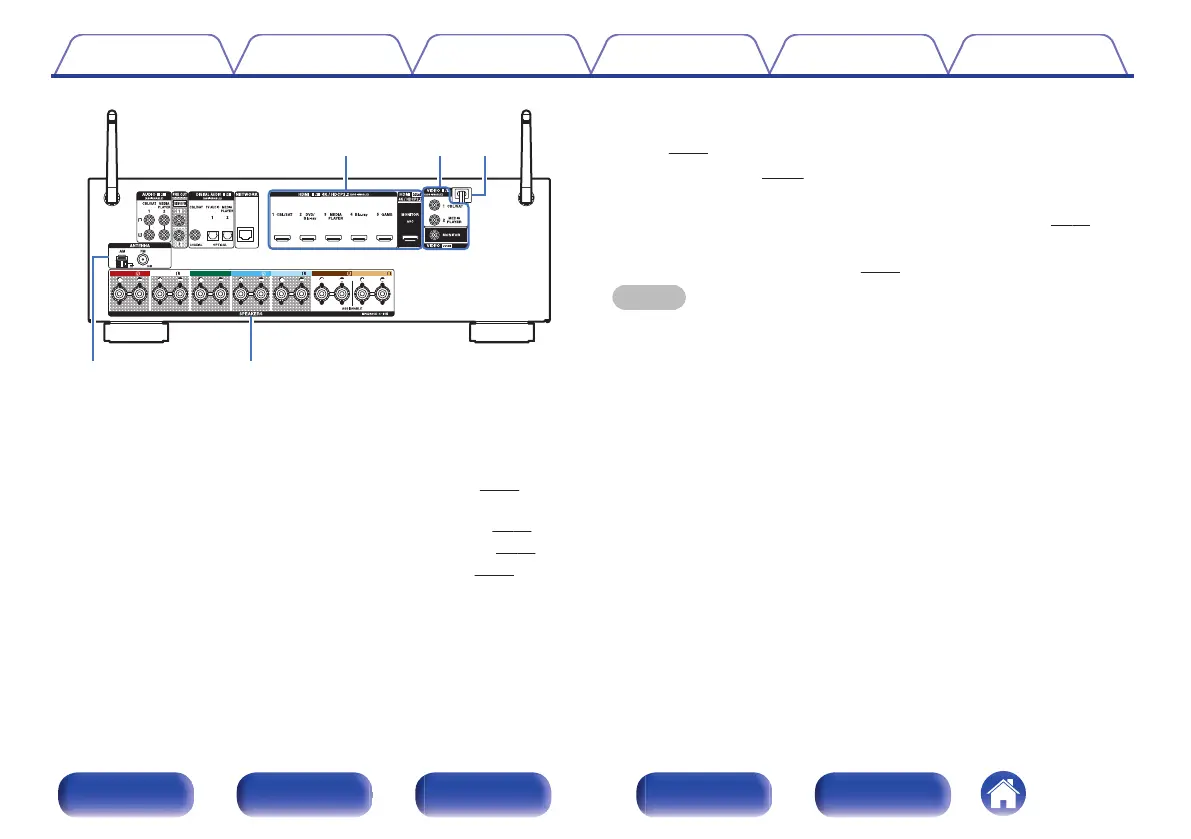

HDMI connectors
Used to connect devices equipped with HDMI connectors.
0
“Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel)” (v
p. 46)
0
“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel)” (v p. 47)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v
p. 50)
0
“Connecting a DVD player or Blu-ray Disc player” (v
p. 51)
G
Video connectors (VIDEO)
Used to connect devices equipped with video connectors.
(v p. 50)
H
Power cord (v p. 59)
I
FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. (v
p. 55)
J
Speaker terminals (SPEAKERS)
Used to connect speakers. (v
p. 32)
NOTE
0
Do not touch the inner pins of the connectors on the rear panel. Electrostatic
discharge may cause permanent damage to the unit.
