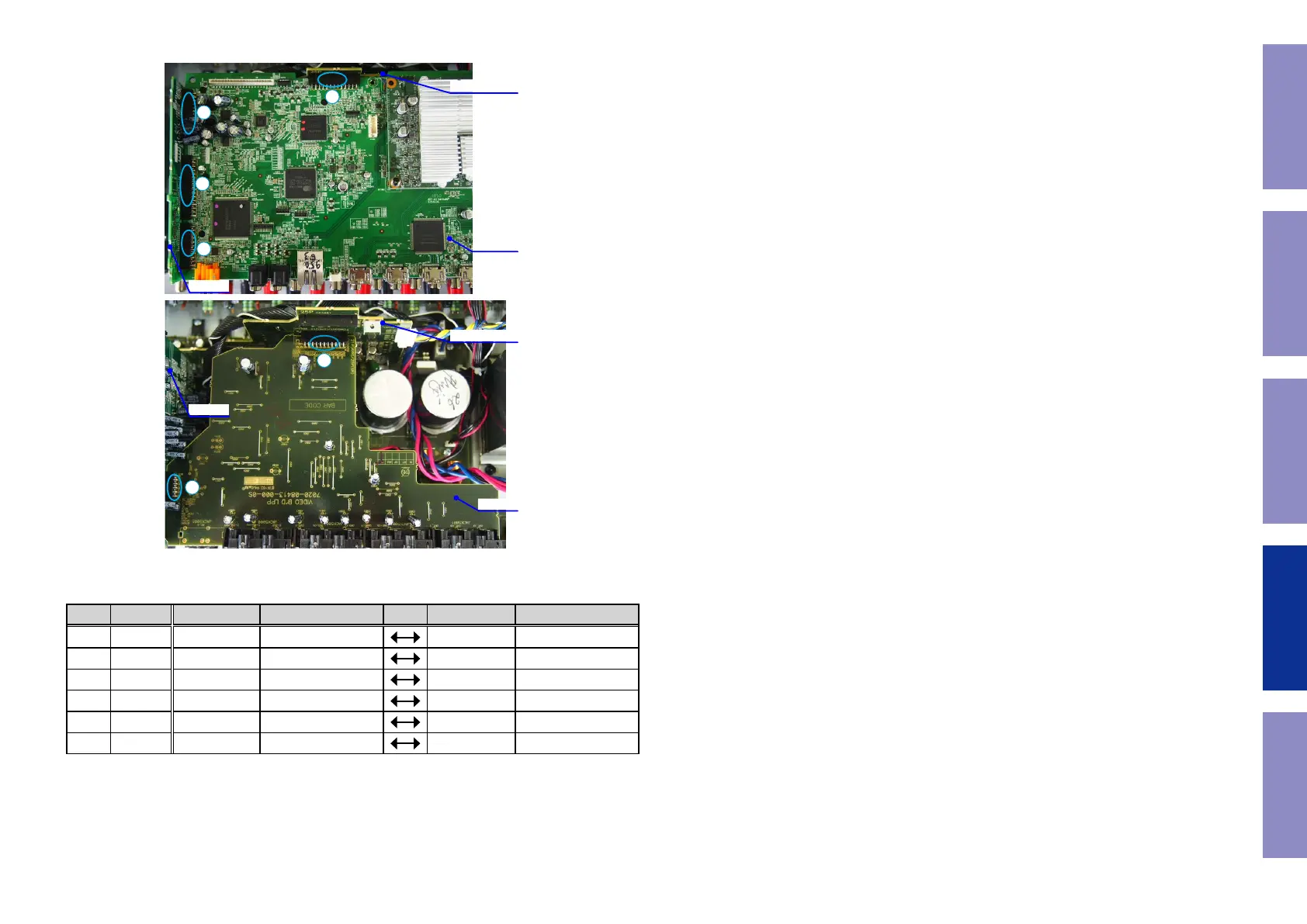

(4) Connect the expansion cables.
Board-to-Board Connections
No. Pin Ref. No. PCB Ref. No. PCB
q
15pin CP4200 INPUT
N1020 DIGITAL
w
27pin CP4205 INPUT
N1016 DIGITAL
e
23pin CP4201 INPUT
N1014 DIGITAL
r
25pin CP3401 FRONT CNT
N1039 DIGITAL
t
11pin CP4204 INPUT
CN5003 VIDEO
y
21pin CP5000 FRONT CNT
CN5000 VIDEO
FRONT CNT
FRONT CNT
DIGITAL
VIDEO
INPUT
INPUT
1
2
3
4
6
5
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
163
