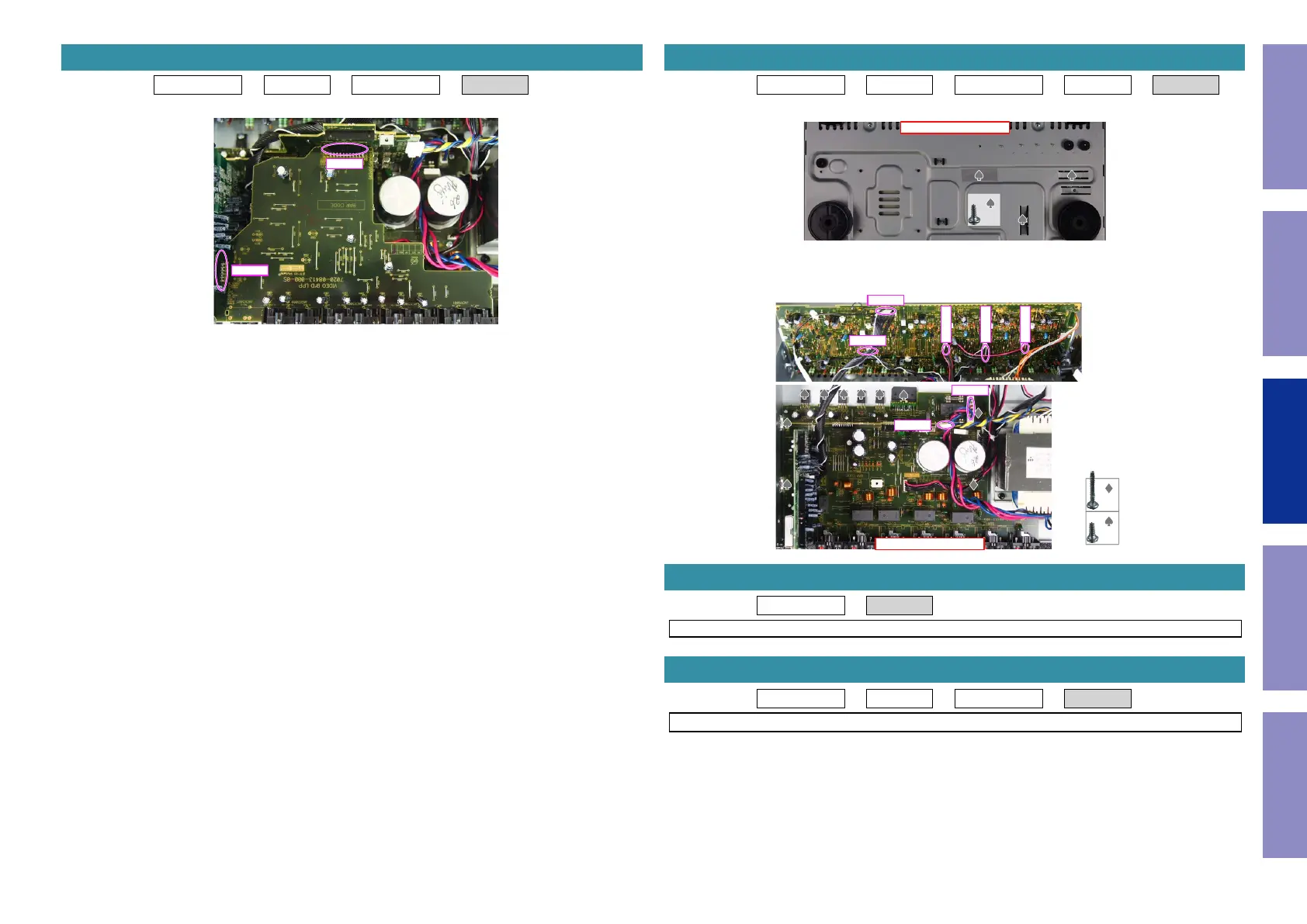

Denon AVR-S950H Series - Video Pcb; Main Pcb; Smps Pcb; Trans

Proceeding : TOP COVER → WiFi ANT → DIGITAL PCB → VIDEO PCB
(1) Removetheconnector.
4. VIDEO PCB
N5000
CN5003
Proceeding : TOP COVER → WiFi ANT → DIGITAL PCB → VIDEO PCB → MAIN PCB
(1) Removethescrews.
(2) Removethescrews.Removetheconnector.
Proceeding : TOP COVER → SMPS PCB
See"EXPLODEDVIEW"forinstructionsonremovingtheSMPSPCB.
Proceeding : TOP COVER → COVER → DIGITAL PCB → TRANS
See"EXPLODEDVIEW"forinstructionsonremovingthetransformer(TRANS).
5. MAIN PCB
View from the bottom
x3
↑Shooting direction: A↑
x8
x2
CP401
CP501
CP401
CP402 CP403 CP405
CP404
6. SMPS PCB
7. TRANS
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
71
