Connecting multi-zone speakers
o

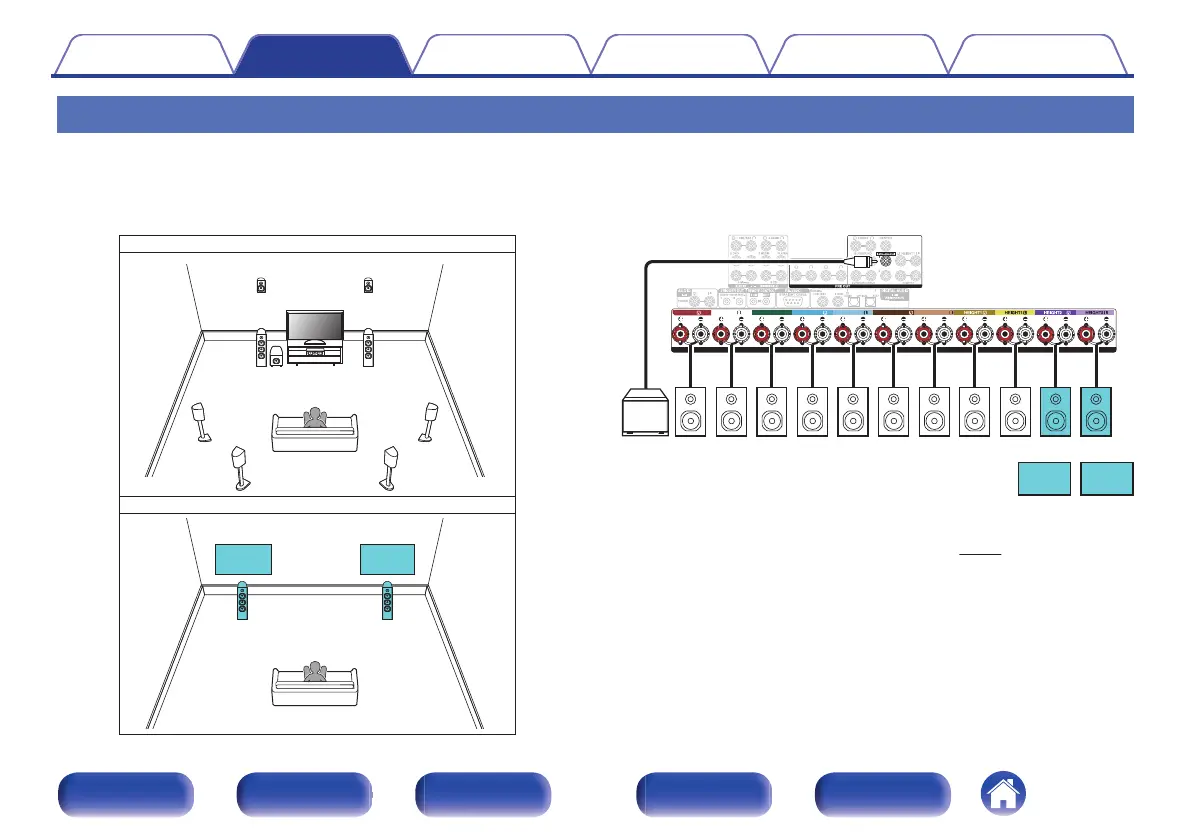

9.1-channel playback (MAIN ZONE) + 2-channel playback (ZONE2 or ZONE3)
This type of configuration plays back 9.1-channels in MAIN ZONE and 2-channels in ZONE2.
(Speakers can output audio from ZONE3 instead of ZONE2 (Assign Mode: 9.1ch + ZONE3)).
.
MAIN ZONE
ZONE2
FHL
FL
SW
C
SL
SBL
FHR
FR
SR
SBR
ZONE2
L
ZONE2
R
.
ASSIGNABLE ASSIGNABLE ASSIGNABLE
SPEAKERS
CENTER SURROUND SURROUNDBACK SURROUNDFRONT SURROUNDBACK FRONT
SW
SBR SBL FHR FHL
FR FL C SR SL
ZONE2
R
ZONE2
L
zz
z
The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can
be connected to the HEIGHT1 speaker terminals. Set the speaker to be
connected from “Height” - “Layout” in the menu. (v p. 225)
