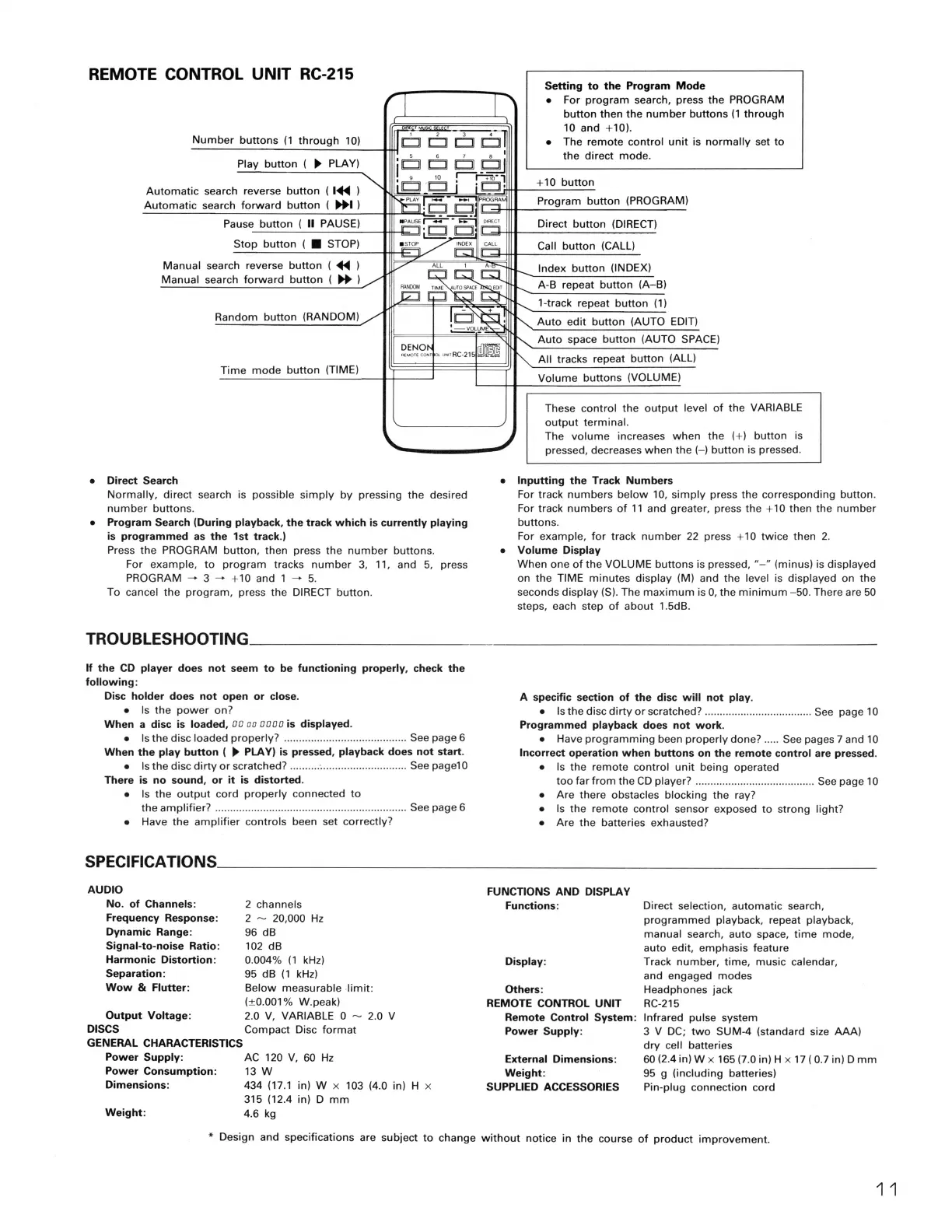

REMOTE CONTROL UNIT RC-215
Number buttons (1 through 10)
Play button (
►
PLAY)
Automatic search reverse button ( I~ )
Automatic search forward button (
►►
1
)
Pause button ( II PAUSE)
Stop button (
■
STOP)
Manual search reverse button (
~
)
Manual search forward button (
►►
)
Random button (RANDOM)
Time mode button (TIME)
c:::n:::::u:::J
6 7 a I
CJ Cl] QJ
Setting to the Program Mode
• For program search, press the PROGRAM
button then the number buttons (1 through
10 and +10).
• The remote control unit is normally set to
the direct mode.
+10 button
Program button (PROGRAM)
Direct button (DIRECT)
Call button (CALL)
Index button (INDEX)
A-B repeat button (A-B)
1-track repeat button (1)
Auto edit button (AUTO EDIT)
Auto space button (AUTO SPACE)
All tracks repeat button (ALL)
Volume buttons (VOLUME)
These control the output level of the VARIABLE
output terminal.
The volume increases when the (+) button is
pressed, decreases when the (-) button is pressed.
• Direct Search • Inputting the Track Numbers
Normally, direct search is possible simply by pressing the desired
number buttons.
• Program Search (During playback, the track which is currently playing
is programmed as the 1st track.)
Press the PROGRAM button, then press the number buttons.
For example, to program tracks number 3, 11, and 5, press
PROGRAM - 3 - +10 and 1 - 5.
To cancel the program, press the DIRECT button.
For track numbers below 10, simply press the corresponding button.
For track numbers of 11 and greater, press the +10 then the number
buttons.
For example, for track number 22 press +10 twice then 2.
• Volume Display
When one of the VOLUME buttons is pressed, "-" (minus) is displayed
on the TIME minutes display (M) and the level is displayed on the
seconds display (S). The maximum is 0, the minimum -50. There are 50
steps, each step of about 1.5dB.
TROUBLESHOOTING ___________________________ _
If the CD player does not seem to be functioning properly, check the
following:
A specific section of the disc will not play.
Disc holder does not open or close.
• Is the power on?
• Is the disc dirty or scratched? .................................... See page 10
When a disc is loaded, oa oo 0000 is displayed.
• Is the disc loaded properly? ......................................... See page 6
When the play button (
►
PLA V) is pressed, playback does not start.
• Is the disc dirty or scratched? ......... : ............................. See pa gel 0
There is no sound, or it is distorted.
• Is the output cord properly connected to
the amplifier? ................................................................ See page 6
• Have the amplifier controls been set correctly?
Programmed playback does not work.
• Have programming been properly done? ..... See pages 7 and 10
Incorrect operation when buttons on the remote control are pressed.
• Is the remote control unit being operated
too far from the CD player? ........................................ See page 10
• Are there obstacles blocking the ray?
• Is the remote control sensor exposed to strong light?
• Are the batteries exhausted?
SPECIFICATIONS ____________________________ _
AUDIO
No. of Channels:
Frequency Response:
Dynamic Range:
Signal-to-noise Ratio:
Harmonic Distortion:
Separation:
Wow & Flutter:
2 channels
2 - 20,000 Hz
96 dB
102 dB
0.004% (1 kHz)
95 dB (1 kHz)
Below measurable •limit:
(±0.001% W.peak)
Output Voltage: 2.0 V, VARIABLE 0 - 2.0 V
DISCS Compact Disc format
GENERAL CHARACTERISTICS
Power Supply:
Power Consumption:
Dimensions:
Weight:
AC 120 V, 60 Hz
13 W
434 (17.1 in) W x 103 (4.0 in) H x
315 (12.4 in) D mm
4.6 kg
FUNCTIONS AND DISPLAY
Functions:
Display:
Others:
REMOTE CONTROL UNIT
Direct selection, automatic search,
programmed playback, repeat playback,
manual search, auto space, time mode,
auto edit, emphasis feature
Track number, time, music calendar,
and engaged modes
Headphones jack
RC-215
Remote Control System: Infrared pulse system
Power Supply: 3 V DC; two SUM-4 (standard size AAA)
External Dimensions:
Weight:
SUPPLIED ACCESSORIES
dry cell batteries
60 (2.4 in) W x 165 (7.0 in) H x 17 ( 0.7 in) D mm
95 g (including batteries)
Pin-plug connection cord
* Design and specifications are subject to change without notice in the course of product improvement.
