Denon DCM-340 - Exploded View of Mechanism Unit

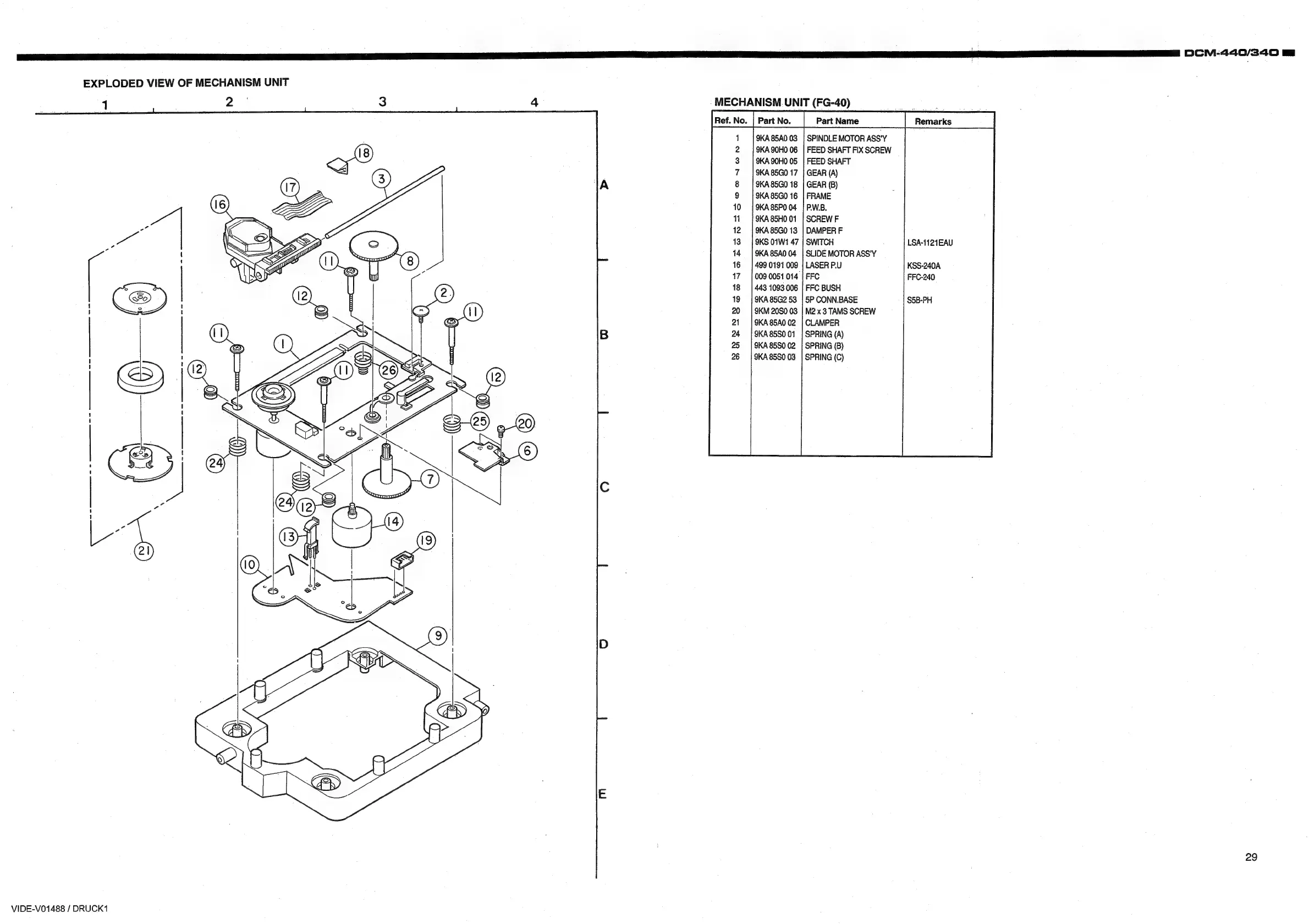

EXPLODED VIEW OF MECHANISM UNIT
1 2
VIDE-V01488 / DRUCK1
-MECHANISM UNIT (FG-40)
Ret.No. [PartNo | PartName | Remarks
9KA 85A0 03 | SPINDLE MOTOR ASS'Y
9KA90HO 06 | FEED SHAFT FIX SCREW
9KA90HO 05 | FEED SHAFT
9KA85G0 17 | GEAR (A)
9KA85G0 18 | GEAR (B)
9KA85G0 16 | FRAME
9KA 85P0 04 | PW.B.
9KA85H0 01 | SCREW F
9KA85G0 13 | DAMPER F
9KS 01W1 47 | SWITCH
9KA85A0 04 | SLIDE MOTOR ASS'Y
499 0191 009 | LASER P.U
009 0051 014 | FFC
443 1093 006 | FFC BUSH
9KA85G2 53 | 5P CONN.BASE
9KM 2080 03 | M2 x 3 TAMS SCREW
9KA85A0 02 | CLAMPER
9KA85S0 01 | SPRING (A)
9KA85S0 02. | SPRING (B)
9KA85S0 03. | SPRING (C)
LSA-1121EAU
KSS-240A
FFC-240
S5B-PH
DCM-440/340 mi
29
