Denon DHT-390XP - Page 79

AVR-390DHT-390XP
87654321
A
B
C
D
E
F

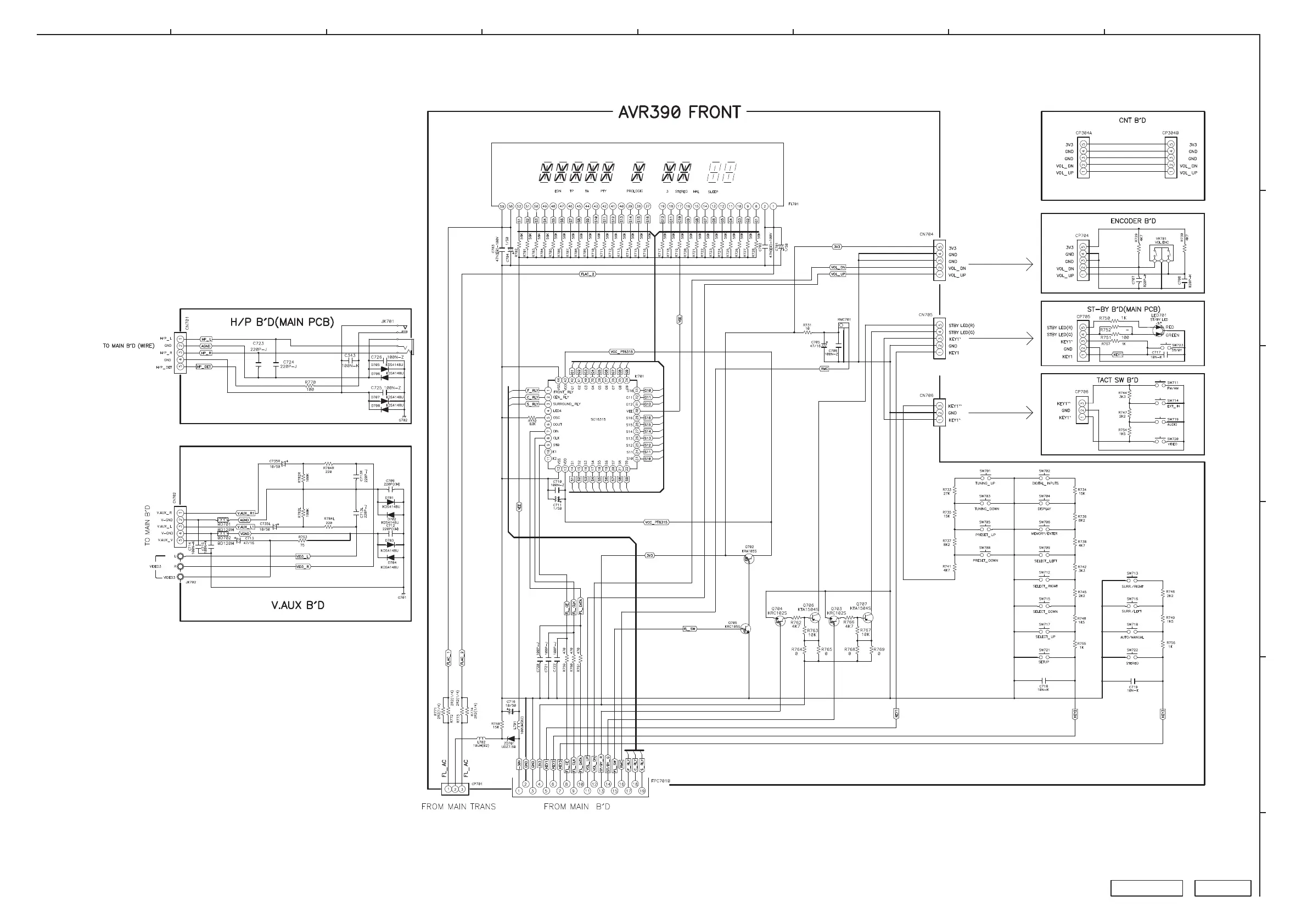

SCHEMATIC DIAGRAMS (3/7)
FRONT UNIT
V.AUX UNIT
ENCODER UNIT
TACT-SW UNIT
CNT UNIT
H/P UNIT
(MAIN UNIT section)
ST-BY UNIT
(MAIN UNIT section)
