Digital Audio SIGNAL LINE
Analog Audio SIGNAL LINE
AVR-390DHT-390XP
87654321
A
B
C
D
E
F

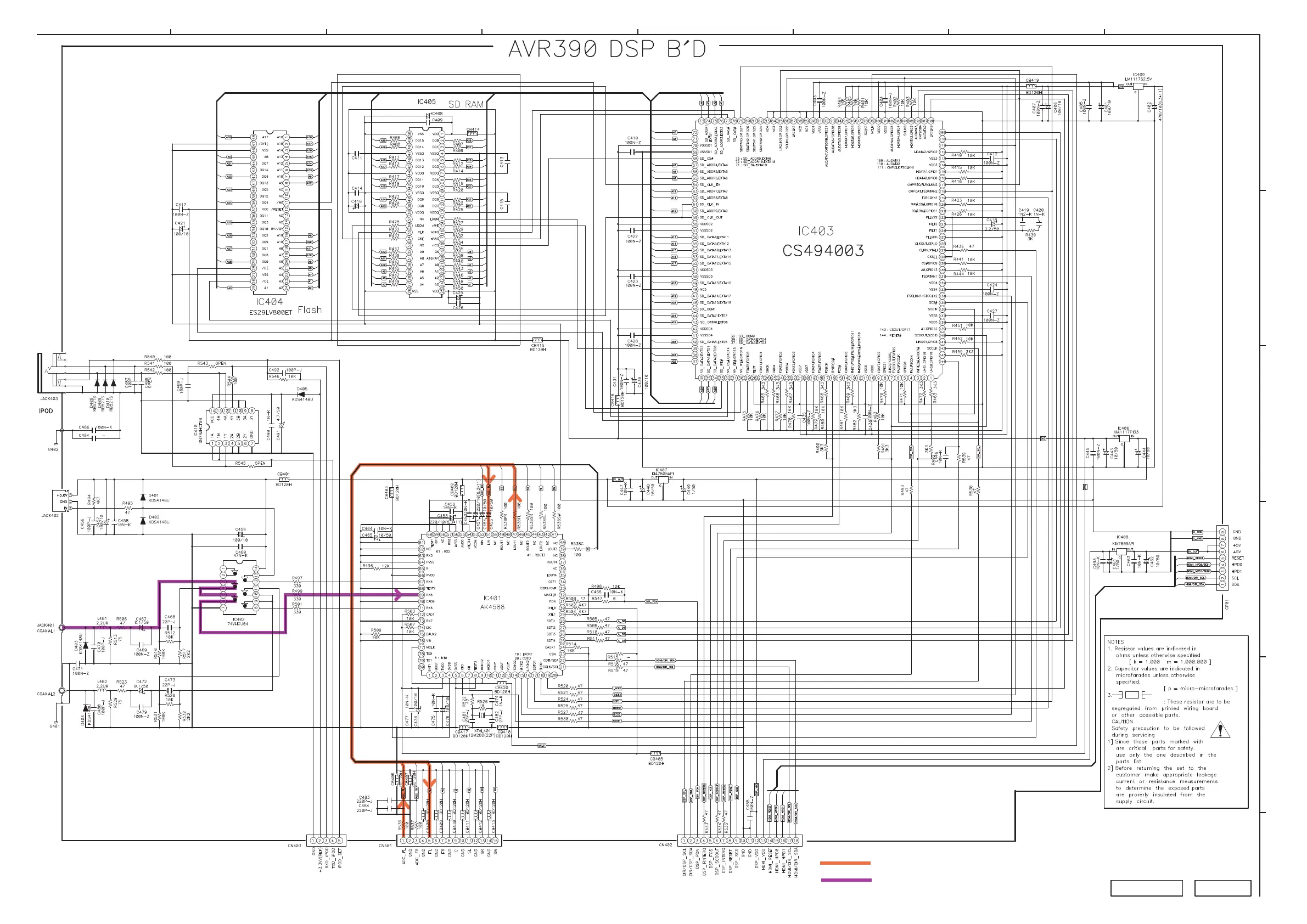

SCHEMATIC DIAGRAMS (5/7)
DSP UNIT
