40
ENGLISH

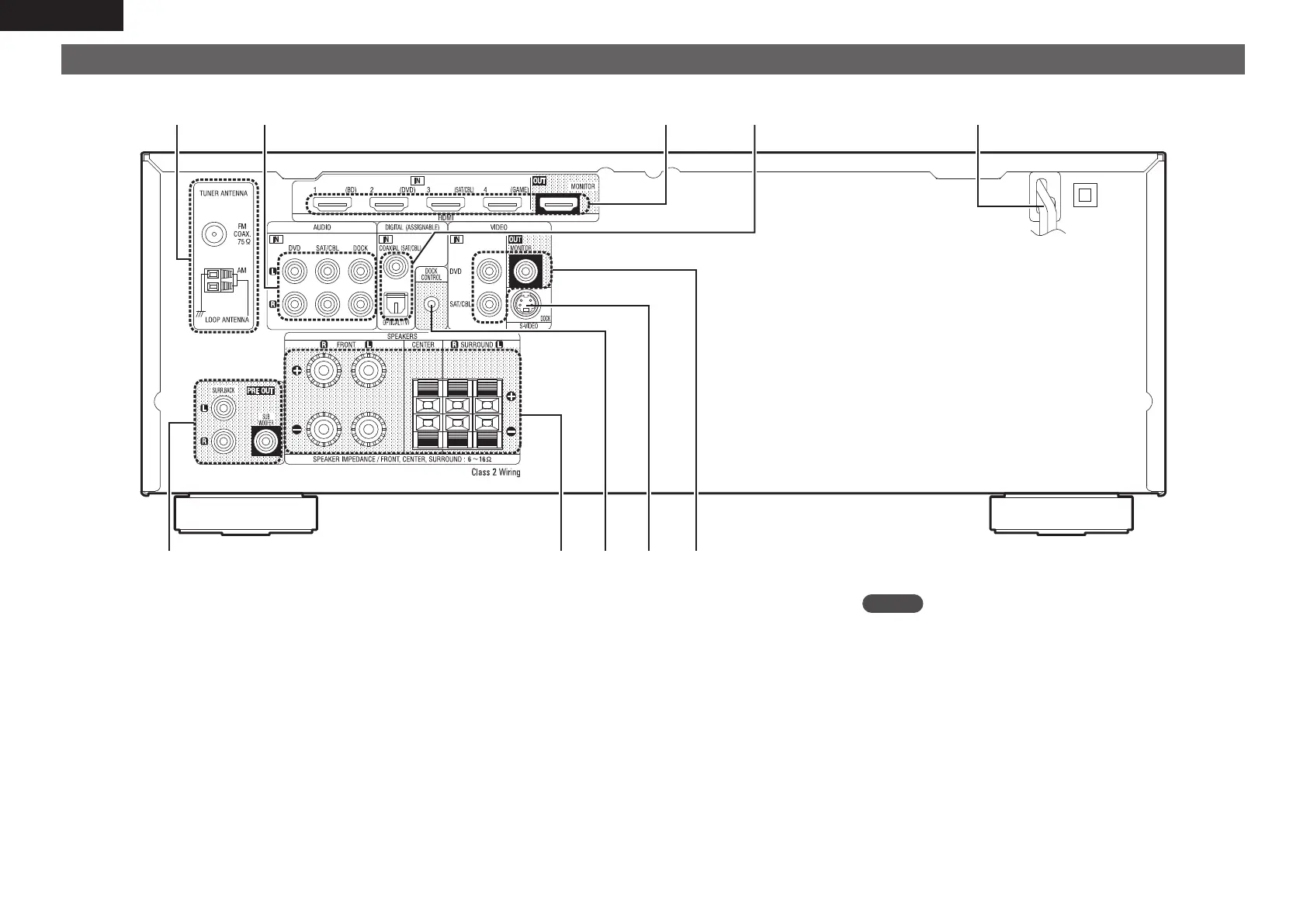

Rear panel
See the page indicated in parentheses ( ).
q
we tr
yi uoQ0
q PRE OUT connectors ··························································· (5, 26)
w Speaker terminals ······························································· (5, 26)
e DOCK CONTROL jack ······························································ (16)
r S-VIDEO connector ································································· (16)
t VIDEO connectors ····························································· (13, 14)
y Power cord ················································································· (5)
u Digital audio connectors ··················································· (13, 14)
i HDMI connectors ····································································· (12)
o Analog audio connectors ·················································· (14, 16)
Q0 FM/AM antenna terminals ····················································· (16)
NOTE
Do not touch the inner pins of the connectors on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
